ONKYO TX-NR515 7.2-Channel Network 3D Ready A/V Receiver

ICON Loading...

Learn more about the Onkyo TX-NR515

General

Brand
ONKYO
Type
Receiver
Model
TX-NR515
Color
Black
Channels
7.2-Channel

Processing

Power Output
80 Watts Per Channel
Frequency Response
5 Hz-100 kHz/+1 dB, -3 dB (DSP bypass)
THD
0.08% (20 Hz-20 kHz, Half power)
Decoder
DOLBY Decoder: True HD, DD Plus, PLIIz

DTS Decoder: DTS-HD Master Audio
D/A Converter
192K/24 Bit DACs (Burr-Brown)
Video Upconversion
Analog To HDMI Upconversion

1080p Upscaling (Marvell Qdeo)

4K (up to 4096 x 2160) Upscaling (Marvell Qdeo)
Audio
Onkyo Game Surround Modes

Audyssey Dynamic EQ

Audyssey Dynamic Volume

Direct Mode

Advanced Music Optimizer
Video
Video Input Sensitivity/Output Level and Impedance: 1 Vp-p/75 ohms (Component); 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR); 1 Vp-p/75 ohms (Composite)

Component Video Frequency Response: 5 Hz - 100 MHz, -3dB

Radio

FM/AM Tuner
Tuning Frequency Range: FM 87.5 MHz - 107.9 MHz / AM 530 kHz - 1,710 kHz

FM/AM Preset Memory: 40 stations
Internet Radio Ready
Yes (vTuner, Pandora, Spotify, Rhapsody, Sirius/XM iRadio, Slacker, LastFM iRadio)

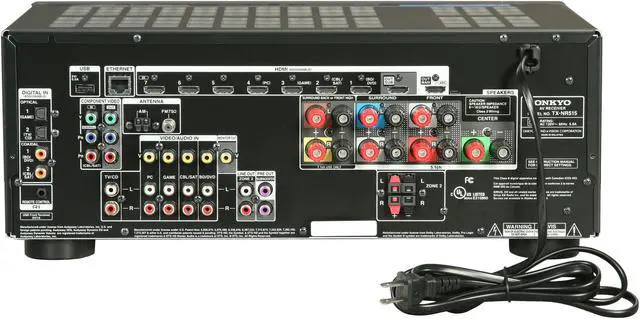

Connectivity

HDMI
8 In / 1 Out
Component Video
2 In / 1 Out
Digital Optical Audio
2 In
Digital Coaxial Audio
2 In
USB Port
Front (made for iPod/iPhone) and Rear
Network Ready
Ethernet and Wireless Network Ready via USB (optional UWF-1)
iPod Compatibility
iPod Ready (direct USB input, optional UP-A1)
Other Connectors
Audio I/O: 5 / 2

Composite I/O: 5 / 1

Analog Pre-Outs: Sub

Powered Zone2

Zone 2 Line Out

Specification

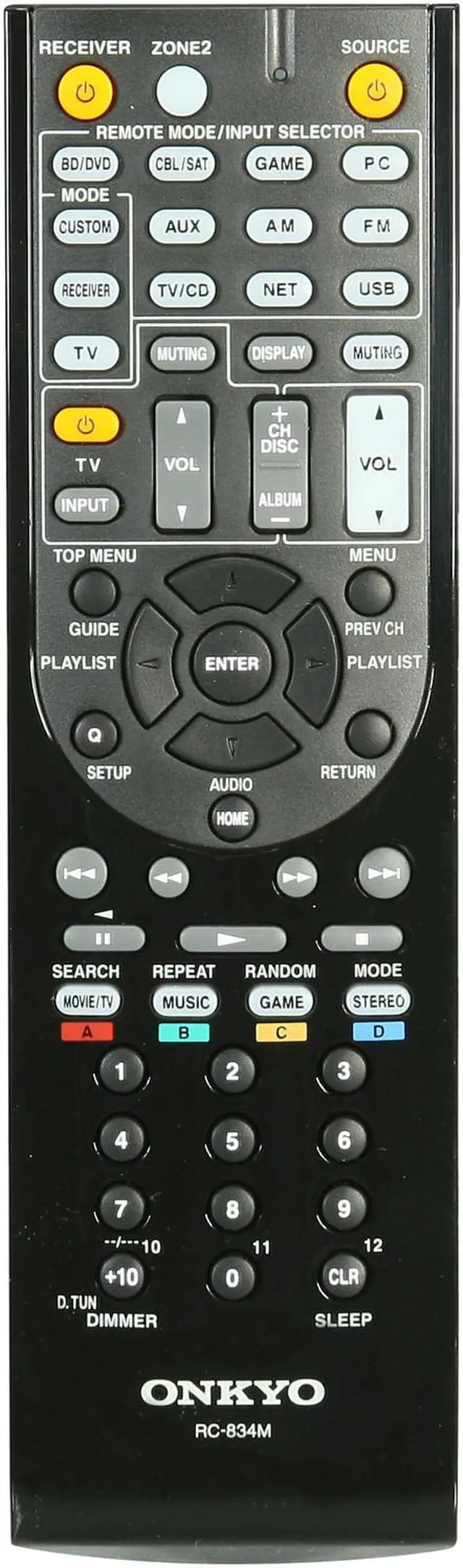

Remote Control
Pre-Pro Remote
Other Specifications
Damping Factor: 60 (Front, 1 kHz, 8 ohms)

Input Sensitivity and Impedance: 200 mV/47 k-ohms (Line)

Output Level and Impedance: 200 mV/2.2 k-ohms (Rec out)

Tone Control: +/-10 dB, 50 Hz (Bass); +/-10 dB, 20 kHz (Treble)

Signal-to-Noise Ratio: 100 dB (Line, IHF-A)

Speaker Impedance: 6 ohms - 16 ohms

Power

Power Supply
AC 120 V, 60 Hz
Consumption
5.0A
Standby Consumption
0.15W

Features

Features
8in/2out HDMI Support for 3D Video and Audio Return Channel

Network Capability Delivers Internet Radio and Network Streaming

Marvell Qdeo Video Chip for 4K Upscaling and Processing

MHL (Mobile High-Definition Link) for Smart Phone Content on HDTV

Picture-in-Picture Input Source Preview with InstaPrevue Technology

Direct Digital Connection of iPod/iPhone via Front-Panel USB Port

Onkyo Remote App for iPod/iPhone

Dolby Pro Logic IIz Add New Dimensions to Surround Sound

Hybrid Standby Function to Reduce Power Consumption

3D Ready

Dimensions & Weight

Dimensions
17.1" x 6.8" x 12.9" (W x H x D)
Weight
19.8 lbs. (9.0 kg)

Quick Info

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years


Customer Reviews of the Onkyo TX-NR515

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Roman D.
  • 3/4/2013 6:37:32 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggs

Pros: Price!!
Features - You cant get better features under $300.00
Wi-Fi - Pandora easily connected. Adapter purchased separately.
Nice On-Screen Display - GUI not outdated
Good remote if just a little light and slick. Controls everything, SAT, BluRay, TV. One Remote.

Cons: Delay in switching source to actually viewing it. For example loading a bluray. It will take 30 sec or so to get the receiver to output the signal from the bluray through the receiver, to the tv. Kind of annoying but minor.

Other Thoughts: Pondered a Yamaha, Denon, Pioneer, Sony, even a Marantz. None could beat this receiver for features vs price. Yamaha would have been my second choice. Their on-screen display was a little 90's for my taste.

Did you find this review helpful? Yes No

  • Dietmar A.
  • 3/4/2013 8:28:15 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsAwsome

Pros: Works much better than expected. Replaces my PC and/or video converter box. Aux HDMI input in front is also a nice feature. Good GUI

Cons: None

Other Thoughts: The only thing that would make this a PERFECT system would me a HDTV tuner built in.

Did you find this review helpful? Yes No

  • Terry R.
  • 2/16/2013 2:19:50 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggs

Pros: EVERYTHING, Works Great, No HDMI issues, CAN'T BEAT NEWEGG

Cons: NONE

Did you find this review helpful? Yes No

  • Tammy W.
  • 2/13/2013 8:26:14 PM
  • Tech Level: Somewhat High
  • Ownership: less than 1 day
  • Verified Owner

2 out of 5 eggsBad ethernet

Pros: Lots of features. Would be perfect if it worked properly.

Cons: Ethernet plug failed to work on my unit.

Other Thoughts: Read through some other reviews that mentioned quality control issues with these Onkyo receivers, but i fell for the features and tried anyways. Lesson learned.

Did you find this review helpful? Yes No

  • Nicholas M.
  • 2/6/2013 11:28:39 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsDecent Receiver

Pros: Easy setup, I like the on-screen guide and controls. Loud clear output.

Cons: My only real gripe with this receiver is that takes too long to switch modes. When I'm using my HTPC, I only hear about 1/2 of the startup sound and the first few seconds of audio are missing from everything while I listen to the receiver make its loud audio source switch clicking noises.

Spotify setup was a bit of a pain, need to go to their website to get your ID (facebook login not allowed).

Did you find this review helpful? Yes No

  • Luke C.
  • 2/4/2013 1:24:17 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsExcellent

Pros: Great sound, powered zone 2 (though I haven't used it yet), and internet radio services (with wifi adapter).

Cons: The three point sound calibrator is a joke, just use the single (better yet, do it manually). And the HD component video inputs only let through 480 or 720... one of those. Moral of the story is, you can't hook up an Xbox or Blue ray to the component video unless you downgrade its video output. Doesn't bother me so it still gets 5 stars.

0 out of 4 people found this review helpful. Did you? Yes No

  • Danny L.
  • 1/30/2013 4:54:45 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggs

Pros: Sound quality is excellent with all kinds of listening modes and adjustments, plus it connects to the internet for Exm radio and Pandora! Plus U get soft ware upgrades!

Cons: none really

Other Thoughts: I would highly recommend this product for a excellent midgrade system, it really performs well!

Did you find this review helpful? Yes No

  • Walter K.
  • 1/23/2013 9:04:45 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGreat Sound

Pros: Very clear sound. Easy to use interface put on TV screen for even better use. Sounds great. HDMI all work well and are labeled and passive pass-through for when TV speaker will do. Plenty of digital collectors for my use and internet radio makes for even more nice sounding music. Power enough to push my 4 8-inch floor speakers and 12 inch sub-woofer to window rattling but crystal clear sound.

Cons: None

Did you find this review helpful? Yes No

  • Daniel C.
  • 1/20/2013 6:14:26 PM
  • Tech Level: Somewhat Low
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsWorth It

Pros: Easy to setup, Smart phone app lets me control music from anywhere in the house (including when the roommates have it too loud when I'm sleeping), compatibility with Pandora, SiriusXM, Spotify etc. Intuitive on-screen menus.

Cons: Either I haven't figured it out yet or it's not possible but I would like and option for TV pass thru while listening to music. I have very limited knowledge on this subject so I'll keep working on it.

Other Thoughts: I bought this as somewhat of an entry level setup for myself with Polk speakers and it's great. Had to do some tweaking to get the sound right for music/tv/movies and all that but the outcome is great for a basic home theater effect. Prove yourselves.

Did you find this review helpful? Yes No

  • Thomas S.
  • 1/13/2013 4:00:41 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsVery flexible, pretty easy to use

Pros: - easy to hook up
- Audessey makes speaker set up very easy
- found network attached drive containing my MP3 collection with no prompting and allows me to play music off the drive.
- great free Android app allows me to control the receivers over the home network, and to play music stored on my Android device to the receiver.
- In general, the network services work great.
- Various audio settings produce decent sound stages
- much lighter than my old analogue Onkyo (but less powerful, I think)
- good support via on-line forums
- easy to set up control of my other (non-Onkyo) remotes

Cons: - somewhat underpowered, but Onkyo sells more powerful models.
- Can only play analogue inputs through Zone 2.
- Don't appear to be able to play 'NET' sourced music to Zone 2.
- Front panel controls virtually invisible, so you are totally reliant on remote.
- Zone 2 controls confusing.

Other Thoughts: bought two, one was open box, set them up upstairs and down. Family appreciates having a single receiver model on both systems, finds this one much easier to use than the ones that I replaced.
Love having HDMI inputs/outputs (standard on current receivers, but not on the older ones I replaced); vastly reduced wire clutter.
I actually found a lower price on this from the online giant, but I like to support NewEgg, I've been able to find interesting products here.

Did you find this review helpful? Yes No
