KRK Systems 12SHO Subwoofer

Sold and Shipped by Newegg

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
KRK

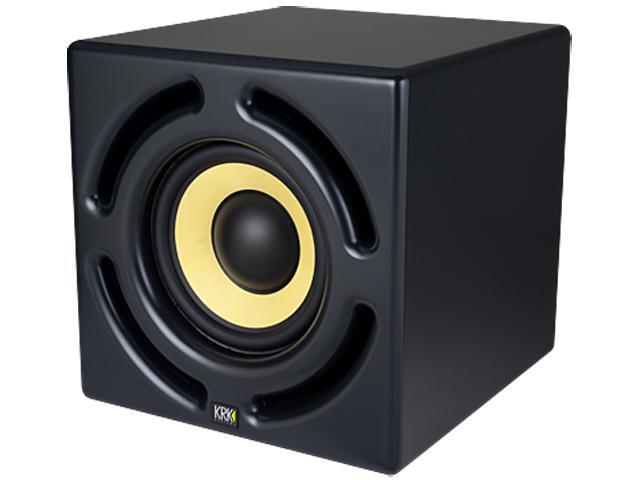

KRK Systems 12SHO Subwoofer


KRK

The KRK12sHO powered subwoofer is the perfect High Output choice for professional studios, where ultra-accurate bass extension and maximum sound levels are required. Powered by a massive 400 watt amplifier and a strengthened version of our signature Kevlar woofer, the KRK12sHO is the no-compromise way to hear what is happening in the depths of your mix. Subwoofers allow you to use smaller main monitors, make it possible to monitor the essential low frequency range and can be a great solution for space-challenged control rooms or mixing environments.

While subsonic frequencies are heavily implemented in some musical genres, all studios benefit from the use of a sub to monitor this low frequency content. With the prevalent use of home theater systems, as well as commercial systems in clubs and cinemas - production studios require the capability to identify and correct problems such as unwanted low frequency components, exterior noise, microphone rumble and vibrations. The increase of home and project mastering means many potentially great pieces of music are being poorly represented when played back on a larger system. When dealing with subsonic frequencies if they cannot be heard accurately they cannot be mixed accurately.

Having an incredibly capable subwoofer is critical when it is combined with powerful near-field monitors, such as the Exposé or a VXT8 driven to high sound pressure levels. In a stereo configuration the subwoofer will have to produce the bass that would normally be generated by the monitors -- that alone can exceed the headroom of an ordinary sub. In a surround sound configuration the subwoofer has to reproduce all of the low-frequency information from five or more channels as well as the demanding bass content of the LFE channel. These challenging applications can place demands far exceeding the capabilities of normal low frequency drivers and power amplifiers. This is where the performance of the KRK12sHO shines.

Features

KRK
  • Curved Baffle – Curved front plate design virtually eliminates diffraction distortion
  • Front-Firing Port – Provides low frequency extension while reducing boundary coupling and the unique shape is optimized to avoid port turbulence
  • Bypass Footswitch Control – Allows you to defeat the sub and provide full range audio to your recording monitors for use with a standard latching 1/4 inch mono footswitch
  • Kevlar 12" – Driver High Excursion woven Kevlar driver cone
  • Thermal and Overload & Clip Protection – Prevents damage
  • Input Sensitivity – On rear of unit allows a high resolution gain range, labeled are positions for MUTE, +6dBu and -8dBu

Specifications


Configuration: Front loaded, vented subwoofer
System Type: Active Subwoofer
Low-Frequency: 12" woven Kevlar High Performance woofer
Frequency Response: 29.2Hz - 60Hz - 160Hz (L/R inputs), 29.1Hz - 211Hz (LFE input)
Max Peak SPL: 123dB
Amplifier Class: Class A - B
Power Output: 400 Watts Continuous @ 1% THD+N @ 100Hz
SNR (Signal to Noise Ratio): 92dB
Amplifier Distortion (THD+N): ≤ 0.1% @-3dB of Max Power Output 20Hz - 200Hz
Input Impedance: 10kΩ Balanced or unbalanced
Ground Lift: On / Off
Low Pass Frequency: 60Hz to 160Hz
HPF Bypass: with footswitch only
Footswitch: Included
Phase: Rotating Phase + Polarity Switch
System Volume: -30dB to +6dB
Indicators: Power, protection, limiter
Input Connectors: Balanced XLR for Left and Right Inputs
LFE Input: Balanced XLR
Output Connectors: Stereo Balanced XLR for left and right, full range with foot switch engaged, 80Hz HP without foot switch engaged.
AC Power Input: Selectable 110 ~ 120V / 220 ~ 240V
Enclosure Construction: 18mm and 36mm reinforced MDF
Finish: Textured Paint
Port Configuration: Front-Firing Quad Concentric Slot Ports
Grille: N/A
Dimensions (H x W x D): 20 x 20 x 22.48" (508 x 508 x 571mm)
Weight: 66.4lbs (30.1kg)
Accessories Shipped with Product:
  • Footswitch for bypass operation, with remote indication of bypass (clip and limit TBD)
  • Cable for footswitch - 16 feet (5m)
  • Feet - Rubber and Spikes
  • User Guide / Warranty


Learn more about the KRK Systems 12SHO

Model

|
Brand
KRK Systems
Model
12SHO

Details

|
Type
Pro Audio - Woofer
Connectors
Input Connectors: Balanced XLR for Left and Right Inputs
LFE input: Balanced XLR
Output Connectors: Stereo Balanced XLR for left and right, full range with foot switch engaged, 80Hz HP without foot switch engaged.
Power Requirement
Selectable 110V-120V / 220V-240V

Features

|
Features
Curved Baffle Curved front plate design virtually eliminates diffraction distortion

Front-firing Port provides low frequency extension while reducing boundary coupling and the unique shape is optimized to avoid port turbulence

Bypass Footswitch Control allows you to defeat the sub and provide full range audio to your recording monitors for use with a standard latching 1/4 inch mono footswitch

Kevlar 12" Driver - High Excursion woven Kevlar driver cone

Thermal and Overload / Clip Protection to prevent damage

Input Sensitivity on rear of unit allows a high resolution gain range, labeled are positions for MUTE, +6dBu and -8dBu

Dimensions & Weight

|
Dimensions
20.00" x 20.00" x 22.48" (H x W x D)
Weight
109.7lbs
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
