Item#: N82E16882750073

Tripp Lite HDMI Over Cat5 Active Extender Remote Unit B126-1A0

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Connector A: HDMI (FEMALE)
  • Connector B: RJ45 (FEMALE)
  • For use with B126-002 and B126-004 transmitter units

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

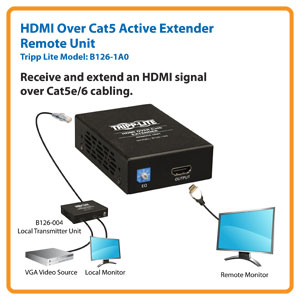

B126-1A0 Diagram

Don't let distance make your signal fizzle—extend an HDMI signal up to 200 feet! This Tripp Lite HDMI over Cat5e/6 Extender Remote Unit delivers peak video performance by HDMI-enabled digital video components, assuring that you enjoy a crystal-clear picture and full, rich sound. The B126-1A0 is an active remote extender unit for use with the B126-002 and B126-004 HDMI Extender/Splitter units. It allows the extension of an HDMI signal up to 200 ft. at 1080i (60Hz), or up to 150 ft. at 1080p (60Hz) when using 24 Awg Solid-Wire Cat5e/6 cabling (Tripp Lite N202-series). The included hardware provides you with a variety of installation options and the plug-and-play convenience makes for an easy, efficient setup. The B126-1A0 features a green, RoHS-compliant design that is also TAA-compliant for GSA schedule purchases.

  • Application The Smart Solution for Digital Signage Applications The B126-1A0 extends an HDMI signal up to 200 ft., making it the ideal solution for digital signage applications requiring greater distance between the video source and monitors ranging from retail and point-of-sale displays to trade show presentations. The B126-1A0 allows the video source to be in a secure, remote location for controlled access while still delivering a signal to devices in another area. The B126-1A0 should be used as a remote unit in an installation starting with Tripp Lite's B126-002 or B126-004 HDMI splitters. The unit receives the signal from the splitter and extends it even further for added convenience.
  • Greater Distance Greater Distance—Greater Flexibility This Tripp Lite HDMI Over Cat5 Active Extender Unit allows extension of an HDMI signal beyond the 15-ft. (5-meter) distance limitation. The B126-1A0 can extend a 1080i (60Hz) resolution up to 200 ft. and a 1080p (60Hz) resolution up to 150 ft. when used with a B126-series Tripp Lite HDMI splitter. And, we haven't forgotten the sound! The B126-1A0 is compatible with both stereo and 7.1 channel surround sound audio, delivering premium sound quality to every point of your application. For maximum distance performance, always use 24 Awg Solid Wire Cat5e/6 cable (Tripp Lite N202-series).
  • Equalization Built-In Image Equalization The B126-1A0 features built-in image equalization allowing you to control the way the image appears on your remote HD display. There are seven equalization settings and the unit comes with a screwdriver for easy and convenient adjustment.
  • Plug-and-Play Convenient Plug-and-Play Setup With no software or drivers to install, the B126-1A0's plug-and-play setup gets your application up and running faster. Simply plug in the unit's external power supply, connect unit to a Tripp Lite B126-series splitter and the remote HD display and watch as the B126-1A0 provides crystal-clear resolution. The unit is compatible with all HDMI video sources and operating systems.
  • Installation Versatile Installation Options The B126-1A0 includes mounting hardware, enabling it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount.
  • RoHS Environmentally Responsible The B126-1A0 is manufactured in compliance with strict RoHS (Restriction of Hazardous Substances) guidelines to minimize the use of hazardous materials.
  • TAA Peace of Mind The B126-1A0 comes with a 1-year product warranty and is TAA-compliant for GSA schedule purchases.
  • Contents What's in the Box • B126-1A0 HDMI over Cat5 Active Extender Remote Unit
    • Screwdriver for Equalization adjustment
    • Mounting Hardware
    • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A)
    • Owner's Manual


Learn more about the Tripp Lite B126-1A0

Model

|
Brand
Tripp Lite
Model
B126-1A0

Details

|
Extender & Repeater Type
Non Wall Plate Extender

Performance

|
3D Support
Yes
Distance
150 ft.
Resolution Support
1080p (60Hz)
Color
Supports 24-bit True Color (8-bits per channel)

Connection

|
HDMI
Connector A: 1 x HDMi(Female)
Network Interface
Connector B: 1 x RJ45(Female)

Feature

|
Feature
For use with B126-002 and B126-004 transmitter units.

24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, is required to achieve maximum distance and resolution.

Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor.

HDCP and 3D compatible.

Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).

Supports 24-bit True Color (8-bits per channel).

Can further expand the range and number of monitors by adding B126-110 repeaters.

Connect up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays.

A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft..

A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft..

A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signal can be extended up to 400 ft..

Features a built-in Equalization control for adjustment of the video image.

Compatible with all operating systems.

Plug and play; No drivers required.

Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Dimensions & Weight

|
Dimensions
3.6" x 2.5'x 1"
Weight
0.9

Package Contents

|
Package Content
B126-1A0 HDMI Over Cat5 Active Extender Remote Unit
Screwdriver for adjustment of Equalization
Mounting hardware
External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
Owner's manual
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): Lifetime
  • Limited Warranty period (labor): Lifetime
  • Read full details
  • Return Policies
    • Return for refund within: Non-refundable
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy.
