Tripp Lite AVBAR6 6-Outlet Ultimate Protection Isobar Audio/Video Surge Suppressor

PRODUCT DESCRIPTION

Protect your valuable home theater components from damage and performance problems with Tripp Lite's AVBAR6 Platinum Series Isobar A/V Surge Protector. In one compact, cost-effective unit, the AVBAR6 provides comprehensive protection for small to medium A/V installations and all electronics. It features exclusive isolated filter banks and EMI/RFI line noise filtering to eliminate interference between electronic components, ensuring peak audio/video performance. The AVBAR6 also features a high 3330-joule surge suppression rating—more joules mean more protection. A total of six AC outlets provide the capacity you need to protect all your components. Two-line 2.2 GHz gold coaxial surge protection and single-line RJ11 tel/modem surge protection safeguard every incoming line through which a damaging surge could reach your equipment. The AVBAR6 comes with $250,000 Ultimate Lifetime Insurance protection for connected equipment and a lifetime product warranty.

Premium Protection for Home/Business Theater Installations and More

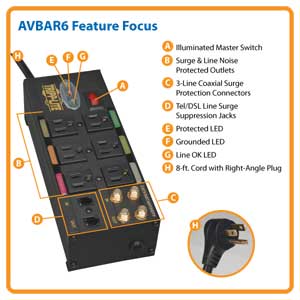

The AVBAR6 offers premium surge protection and performance enhancement for A/V components, PCs, peripheral devices and all electronics. It provides a total of six AC outlets, arranged to accommodate up to two bulky transformers without blocking remaining outlets. Outlets are color-coded to identify component connections. The AVBAR6 also features a durable all-metal case, a six-foot cord enabling connection to a distant wall outlet, and a space-saving right-angle plug that allows furniture to be placed flush against the wall. The case is equipped with keyhole mounting tabs to facilitate permanent installation on or under shelves, on walls, etc. Included outlet covers (set of four) can be used to safeguard unused outlets.

Improved Component Performance

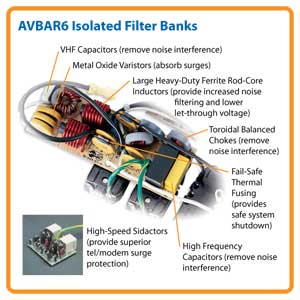

Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The AVBAR6 incorporates exclusive Isobar technology, including isolated filter banks, to eliminate interference between connected components, plus full EMI/RFI line noise filtering, to ensure peak audio and video performance.

Powerful AC Line Surge Suppression

A single power surge has the potential to seriously damage or destroy sensitive A/V components. Even a minor surge can cause incremental damage that degrades performance and shortens component lifespans. The AVBAR6 features the highest surge protection rating in its class—3330 joules of surge suppression to prevent even the strongest surges from damaging your valuable electronics.

Protection on Every Connection

In addition to AC line protection, the AVBAR6 includes built-in RJ11 jacks to prevent surges from damaging your modem/fax/phone equipment (six-foot telephone cord included) and built-in gold Type F coax jacks to prevent surges from damaging your cable/satellite equipment (digital broadband quality accommodates 2.2GHz bandwidth; six-foot coax cable included).

Built-In Diagnostic Capabilities

Three diagnostic LEDs (GROUNDED, PROTECTED & POWER) show power and protection status. An illuminated master switch provides one-touch power control over all components.

Ultimate Peace of Mind

The AVBAR6 comes with a lifetime product warranty plus $250,000 Ultimate Lifetime Insurance (USA/Canada only) covering connected components against surge damage—for life.

What's in the Box

• AVBAR6 Surge Protector
• 6-ft. coaxial cable
• 6-ft. phone cord
• Instruction manual with warranty information

Home Theater Surge Protectors	AVBAR6	AVBAR8	AVBAR10	AVSWIV6
Outlets	6	8	10	6 Rotating
Joules	3330	3134	3384	2100
Additional Protection	Tel/DSL; Coax	Tel/DSL/Ethernet; Coax	Tel/DSL/Ethernet; Coax	Tel/DSL; Coax
Cord Length	6-ft.	8-ft.	8-ft.	Direct Plug-In
Metal Housing				—
Ultimate Lifetime Insurance	$250,000	$500,000	$500,000	$50,000
Warranty	Lifetime	Lifetime	Lifetime	Lifetime

Learn more about the Tripp Lite AVBAR6

Model

Brand: Tripp Lite

Model: AVBAR6

Features

Features: 3330 joules surge / spike suppression protection rating

EMI/RFI line noise filtering help components perform at their peak (sharper, crisper video; deeper, fuller audio and longer component life spans)

Isolated Filter Banks eliminate interference between connected components

All-metal housing safely withstands the strongest surges

6 surge-protected NEMA 5-15R AC outlets safeguard an Audio / Video system

$250,000 Ultimate Lifetime Insurance (USA and Canada only) covers connected components against surge damage...for life!

Widely spaced outlets accommodate up to 2 transformers

Four plug-in safety covers protect against accidental contact

2 sets of surge-protected Type F gold HD 2.2 GHZ coaxial connectors (with included 6-ft. coaxial cable) safeguard components on cable, satellite or antenna line

1-line tel/modem surge protection (with included 6-ft. phone cord) safeguards personal video recorders (Satellite, PVRs) on a single dial-up line.

6-ft. cord with right-angle NEMA 5-15P plug provides convenient location anywhere within a Audio Video system

3 diagnostic LEDs alert user to protection, line power and fault status

Keyhole slots provide convenient wall or cabinet mounting

Illuminated master switch provides one-touch power control over all components. Circuit breaker protects against dangerous system overload

All-metal housing (black) stands up to the most demanding environments

Tested to UL and cUL, RoHS compliant

Spec

Type: Power Conditioner / Surge Protector

Color: Black

Specifications: Output
- Frequency compatibility: 50 / 60 Hz
- Circuit Breaker (amps): 12
- Outlet quantity / type: 6 NEMA 5-15R
- Transformer accommodation: Accommodates 2 transformers

Input
- Nominal Input Voltage(s) Supported: 120V AC
- Recommended Electrical Service: 120V,15A
- Input connection type: NEMA 5-15P
- Input plug features Space-saving right angle input plug
- Input cord length (ft.): 6
- Input cord length (m): 1.83
- Input cord gauge, type: 14 gauge, SJT
- Voltage compatibility (VAC): 120
- Maximum Surge Amps: 135000

Leds Alarms & Switches
- Switches: Combination AC circuit breaker and illuminated 2-position on/off power switch
- Diagnostic LEDs: Built-in LEDs confirm line power, protection and fault status

Surge / Noise Suppression
- AC suppression joule rating: 3330
- AC suppression response time: NM = instantaneous CM = < 1 ns
- Protection modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
- Clamping voltage (RMS): 140V
- UL1449 let through rating: 330V
- EMI / RFI filtering: Up to 40 dB

Dataline Surge Suppression
- Telephone/DSL Protection: Yes
- Telephone/DSL Protection Details: 1 line
- Cable (Coax) Protection: Yes
- Cable (Coax) Protection Details: 2 line (2.2 GHz Bandwidth)
