Item#: N82E16883218039

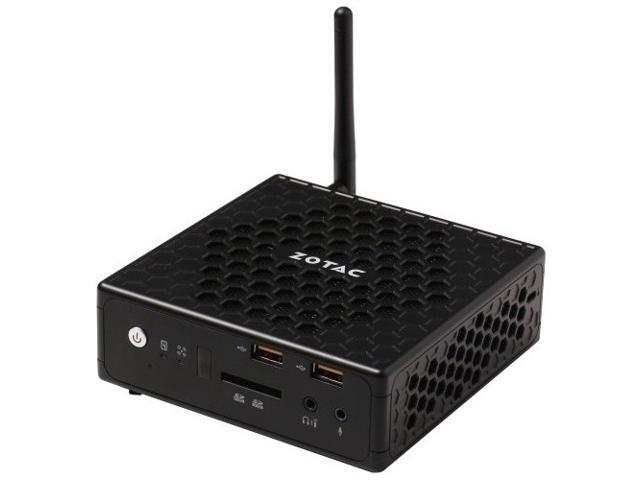

Zotac ZBOX-CA320NANO-U 1 x 204Pin SO-DIMM AMD Radeon HD 8250 Barebone Systems - Mini / Booksize

  • AMD A6-1450 1.0GHz
  • AMD Radeon HD 8250
  • 1 x 204Pin SO-DIMM DDR3L 1066

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

Learn more about the ZOTAC ZBOX-CA320NANO-U

General

|
Brand
Zotac
Model
ZBOX-CA320NANO-U

CPU Supported

|
CPU Type
AMD A6-1450 1.0GHz

Memory Supported

|
Memory installed
No Memory
Memory slot
1 x 204Pin SO-DIMM
Memory Type Supported
DDR3L 1066
Max Memory Supported
8GB

Storage

|
Hard Drive Installed
No Hard Drive
Serial ATA
1 x SATA 3.0Gb/s

Graphics

|
Onboard Video
AMD Radeon HD 8250

Audio

|
Channel
8 Channel

Communications

|
Max LAN Speed
10/100/1000Mbps
Wireless LAN
802.11ac
Bluetooth
Bluetooth 4.0

Extension Bays

|
2.5" Internal Bays
1

Front Panel Ports

|
Front USB
2 x USB 2.0
Card Reader
3-in-1 (SD/SDHC/SDXC)

Back Panel Ports

|
HDMI
1
VGA
1 x DisplayPort
Rear USB
2 x USB 3.0
3 x USB 2.0

Physical SPEC

|
Weight
3.25

Features

|
Features
Memory and Solid State Drive sold separately. No Operating System

Group

|
Group
No Memory / No Hard Drive
Warranty, Returns, And Additional Information

Customer Reviews of the ZOTAC ZBOX-CA320NANO-U

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go

Showing 4 of 4 reviews - Clear Filters

  • Anonymous
  • 2/23/2016 4:26:20 PM
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGood product

This review is from: Zotac ZBOX-CA320NANO-U 1 x 204Pin SO-DIMM AMD Radeon HD 8250 Barebone Systems - Mini / Booksize

Pros: Works as expected, had to tweak a bit for Linux (this was expected), but once configured works like a charm, can't be beat for the price in my opinion

Cons: N/A

Other Thoughts: N/A

1 out of 1 people found this review helpful. Did you? Yes No

  • Donald F.
  • 8/14/2015 6:08:37 PM
  • Ownership: 1 month to 1 year

1 out of 5 eggsAVOID - Major Firmware problems

This review is from: Zotac ZBOX-CA320NANO-U 1 x 204Pin SO-DIMM AMD Radeon HD 8250 Barebone Systems - Mini / Booksize

Pros: Small, silent, reasonably good performance, built-in wifi, plenty of USB ports, eSata port, HDMI, IR receiver, SD reader

Cons: Firmware is total ABYSMAL

Other Thoughts: I can't tell you how much I really WANTED to like these. They had everything I wanted (except functional firmware) for an HTPC platform. I purchased 4 of them (2 at $119 and 2 at $99) - 1 was DOA (due to firmware issues), one died when I delivered it to the customer, and of the two remaining, one is showing signs of dying. That's quite a failure rate, isn't it? Worse yet, the manufacturer's rep will treat like you a noob then... just... stop replying to you.

Manufacturer Response:

Hi Donald,

It is unfortunate that you are experiencing issues with your CA320NANO-U. Quality and customer experience is very important to us.

Please try clearing the CMOS, then flash the BIOS with an updated version - http://www.zotac.com/support/download.html.

If you are in need of further assistance, please contact our support team by calling 1-877-596-6822 9:00am – 6:00pm PST Mon – Fri or emailing support.us@zotac.com.

Sincerely,

ZOTAC

2 out of 5 people found this review helpful. Did you? Yes No

  • Aaron L.
  • 5/22/2015 10:15:04 AM
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsAwesome HTPC

This review is from: Zotac ZBOX-CA320NANO-U 1 x 204Pin SO-DIMM AMD Radeon HD 8250 Barebone Systems - Mini / Booksize

Pros: * Better than Atom based unit performance wise,
* Being based on an AMD APU is a plus for me. The graphic are better than the base Intel HD Graphics, but not as good as the HD 4000 series.
* Dead silent.
* Very low power.
* Plays casual games fine.
* Streams games in 720px60fps with no issues.
* Plays Blu Ray quality bit streams with no issues.
* Plays nicely with Kodi/XMBC with a PC IR Remote.
* Very cost effective when I bought it.
* Runs Win 7.1, Win 8.1, and Steam OS with no issues.
* Build and install was issue free.

Cons: * This does not seem to be a popular model.
* The current situation may make it less than cost effective.
* Because it is dead silent, it does get warm.

Other Thoughts: I absolutely loved this box. Unfortunately, It fell off my high dresser and broke. Yes, I am an idiot. I cannot replace it because either it is not available, or I don't see the value at the current pricing.

An i3-4010U based solution seems to be the best price performance point at the moment. Too bad, I love AMD.

3 out of 3 people found this review helpful. Did you? Yes No

  • Alexander P.
  • 11/6/2014 5:29:33 PM
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsperfectly adequate

This review is from: Zotac ZBOX-CA320NANO-U 1 x 204Pin SO-DIMM AMD Radeon HD 8250 Barebone Systems - Mini / Booksize

Pros: Silent, small, quad-core, adequate computing. I put an SSD and 8GB RAM in it. It is cute-sized and effective.

Cons: After adding hardware and software it's obviously more expensive.

Other Thoughts: I'm happy I bought it.

1 out of 1 people found this review helpful. Did you? Yes No
