Specifications: Chipset ID: Sunplus - SPIF223A
1 - SP4 (4 pin; Small Drive Power) Male
2 - SATA (7 pin; Data) Plug
Host Connectors: 1 - IDE (40 Pin; EIDE/PATA) Female
Type and Rate: SATA I (1.5 Gbps)
OS Compatibility: OS independent; No Software or drivers required

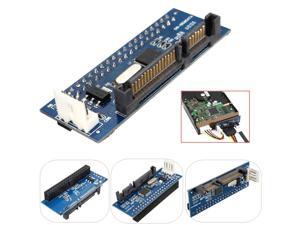

Specifications: Connector A: 40 POS. Socket (Female)
Connector B: 4 Pin (Female)
Connector C: 7 Pin SATA Straight (Male)
Connector D: 4 Pin (Male)
System Requirements: Supports any operating system when a PC with available IDE hard disk and SATA controller are used

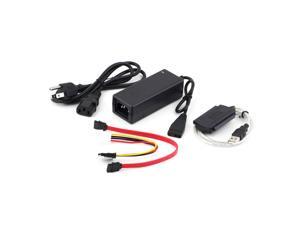

Package Contents: Serial ATA to IDE Converter x 1
Serial ATA Cable x 1
Power supply cable x 1
User's Manual x 1
Specifications: Detects and erases HPAs: Detection always indicated by LED. Handled according to configuration settings.
Detects and erases DCO: Detection always indicated by LED. Handled according to configuration settings.
Switch Guard: Yes
2.5" and 3.5" SATA drives
3.5-inch PATA (IDE) drives
Compatible (via adapters) with 1.8" ZIF drives (Toshiba/Hitachi), 1.8" drives (Toshiba), and 2.5" IDE / PATA drives.
Operating System Compatibility for erasure:
Operating system not required for erasure.
Drive eRazer operates as a stand-alone device and will erase disks from any operating system.
Operating System Compatibility for dock use:
Windows 7, XP, Vista Macintosh OS X
Linux distributions that support USB 2.0
Data speeds: Speeds vary depending on the drive model and type. Modern drives operate ...
Specifications: Connector Types: 1 - IDE 40 pin Male
Connector Types: 1 - SATA Data 7 pin Plug
Connector Types: 1 - SATA Power Plug
Connector Types: 1 - SP4 Male
Enclosure Type: Steel
LBA support: 48-bit
Product Height: 1.02 in [26 mm]
Product Length: 3.98 in [101 mm]
Product Weight: 3.67 oz [104 g]
Product Width: 3.07 in [78 mm]
Humidity: 8% ~ 90% RH
Operating Temperature: 5°C to 80°C (41°F to 176°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Chipset ID: JMicron JM20330
OS Compatibility: OS independent; No software or drivers required
Specifications: Supports USB-type mSATA SSD
Transparent to any OS
Does Not Require Any Driver
Can be Configured as a Bootable Device
mini USB Female
Complies with Serial ATA 1.0A Specification (SATA Mode)
Supports SATA III Host Interface
Supports Hot Swap
Complies with USB 2.0 Specification (USB Mode)
Compatible to Intel-type mSATA SSD (mSATA Interface)
Compatible to USB-type mSATA Device (mSATA Interface)

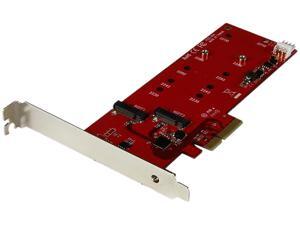

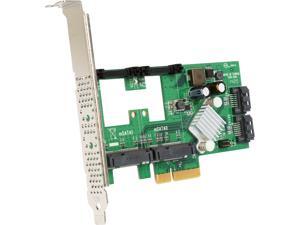

Specifications: Ports: 2
Interface: Mini SATA
Bus Type: PCI Express
Card Type: Standard Profile (LP bracket incl.)
Port Style: Integrated on Card
Serial ATA 3.0 specification
PCI Express 2.0
Chipset ID: Marvell - 88SE9230
Type and Rate: SATA III (6 Gbps)
Port Multiplier: Yes
LBA support: 48-bit
Supported RAID Modes:
JBOD - (Just a Bunch of Disks)
RAID 1 (Mirrored Disks)
RAID 0 (Striped Disks)
Max Drive Capacity: Currently tested up to 4TB per drive
OS Compatibility: Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64)
Windows Server® 2012, 2008 R2, 2003
Mac OS® 10.6 and up (Tested up to 10.10)
External power supply: 100-240VAC +12V/+3V / +3.5A (included)
Power input: +12V DC input jack; 12-pin SATA power
Power output: +12V / +5V
Power switch: On / Off
HPA / DCO Detection
Power input active
Power output active
FireWire 800: up to 800 Mbps
FireWire 400: up to 400 Mbps
USB 3.0 port: up to 5 Gbps
eSATA port: up to 3 Gb
3.5" IDE / PATA drive
2.5" / 3.5" SATA drive
Windows 7, Vista, XP
Macintosh OS X
Linux distributions that support desired host connection
4 lbs. (including AC adapter)
4.3" x 2.95" x 0.87" (110mm x 75mm x 22mm) exclusive of attached plates, drives and cables
FCC, CE, RoHS
Specifications: SATA 3.0 compatible with transfer rates up to 6 Gbps!
This external eSATA slot plate adapter adds two external eSATA ports to any serial ATA controller, and allows you to take the high speed of SATA outside your computer case.
Just install the adapter plate into an open I/O slot on your computer; it easily fits into any PC slot.
Then connect the cables to the serial ATA connectors on your motherboard or SATA controller card.
Then you'll be able to connect external SATA drives that use the new eSATA connector.
