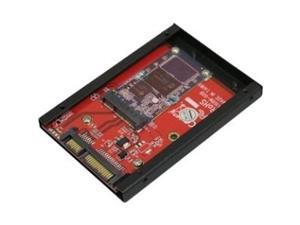

Specifications: 22-pin SATA and power combo connector (same as 2.5" SATA hard drive)
SATA Hot-swappable support when connected to SATA port supporting such feature
Maximum transfer rate: 6 Gbps. Actual speed depends on the speed of the mSATA SSD
1 mSATA card connector plus two mounting poles
Dimensions: same as 2.5" hard drive with 9 mm height - 69.85 mm (W) x 100.2 mm (L) x 9 mm (H)
Power: +5V from PC power supply
Maximum Current: ~50 mA at 5V
Features: Build your own 2.5" SATA SSD with mSATA SSD of your choice
Replace 2.5" hard drive with low power and shock resistant mSATA SSD
Direct Notebook hard drive replacement
*Use as a 3.5" hard drive by using optional 2.5" to 3.5" drive adapter (model: AE25SN35SA)
mSATA flash Card can be the primary bootable device containing the OS and...
Specifications: 1 USB-A connector
USB 2.0 / 1.1 specification
USB power up to 1.5A at 5V
1 RJ45 socket for 10/100Mbps Ethernet connection
File system support: FAT32*
Suppor maximum 2TB partition. Maximum file size up to 127GB when
read/write from the NAS adapter
Dimensions (L x W x H): (70 x 32 x 24) mm or (2.75 x 1.25 x .94) in.
Weight: 45g (1.6 Oz)
Operation Temperature: 0 Degree C ~ 70 Degrees C
Operation Humidity: 10 ~ 90 %RH
Storage Temperature: -20 Degrees C ~ 70 Degrees C
Storage Humidity: 5~ 95 %RH
Power consumption: 200mA @ 5V
* USB storage device must be initialized and formatted with the NAS adapter before appearing on the network. Be sure to make a backup of any existing data on the USB storage prior to formatting by the NAS adapter.
Features: Convert any USB 2.0 / 1.1 mass storage device into a Network Attached...

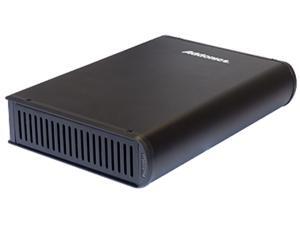

Features: Product Line: Diamond Product Name: Diamond DCED256EU3 Hard Drive Enclosure Marketing Information: The Diamond Cipher ExDrive Kit features the new generation of eSATA hard drive enclosures with the 256-bit AES hard encryption to ensure absolute data security should the drive get stolen or lost. The crypto engine inside the Diamond Cipher enclosure hand Product Type: Drive Enclosure Controller Type: Serial ATA Number of Total Expansion Bays: 1
Number of 3.5 Bays: 1 Drive Interface: Serial ATA/300 Host Interface: USB 3.0 Host Interface: eSATA Color: Gray Color: Black Form Factor: External Package Contents: ExDrive DCED256EU3 Hard Drive Enclosure Package Contents: Diamond 256-bit Cipher Key Package Contents: Power Adapter Package Contents: eSATA - eSATA Data Cable 6 ft. Package Contents: USB 3.0 to eSATA Adapter Package Contents: User Guide Compat...
Specifications: Two eSATAp (eSATA/ USB 2.0 combo) connectors
SATA 1.0 specification
USB 2.0 / 1.1 specification
USB port can supply power up to 1.5A at 5V using the bundled power adapter
One RJ45 socket for 10/100/1000Mbps Ethernet connection
File systems support: XFS, EXT3, EXT4, NTFS, FAT16, FAT32
Maximum # of storage devices supported - 16 (requires combination of USB hubs or Port Multipliers)
Maximum # of partition per storage device - 15
Maximum user accounts: Samba server - 64,0000*
Maximum # of concurrent connections: Samba and FTP server combined - 32,000*
LED for power, status and LAN activity
Power consumption: 2 watts @ idle, 2.5 watts average during operation
Dimensions (L x W x H): ~ (85 x 55 x 23) mm or (3.35 x 2.17 x .91) in.
Weight: ~172g (6.1 oz)
*These are the theoretical limits in...

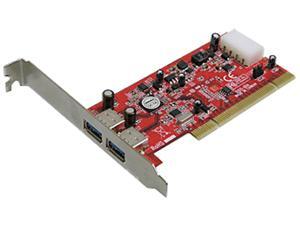

Specifications: External dual Ports USB 3.0 Type A connectors
Support PCI 33 / 66MHz
Compliant with PCI Specification 3.0
Low Profile PCI Form Factor
Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 0.95
Two USB ports that offer SuperSpeed (5Gbps), HighSpeed (480Mbps), FullSpeed (12Mbps), and LowSpeed (1.5Mbps) transaction
5V USB bus power automatically from PCI bus or PC power supply through Molex 4 Pin connector - 500 mA max. without connecting the 4 Pin Molex power connector on board.
Chipset : NEC
Operating Systems Supported: Windows 2000, Windows XP, Vista, Windows 7
Specifications: 6.0 Gbps SATA III ports or eSATA III ports
Supports 5Gbps PCI-Express 2.0
Fully compliant with PCI-Express 2.0
Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps
Supports ATA and ATAPI commands
Supports Native Command Queuing (NCQ)
Marvell 88SE9128 chipset
48 bits LBA, support HDD partition larger than 137GB Two Pin headers on board for LED connection
Completely with drivers for Windows 2000, Windows XP, Vista, Windows 7
Dimensions: (W x D x H) - 67mm x 11mm x 70mm (2.64in x 0.39in x 2.76in)
Weight: 34g (1.20oz)
Operating temperature range: 0 °C to +70 °C
Operating humidity range: 5% to 90%
Storage temperature range: -40 °C to +85 °C
Storage humidity range: 5% - 95% (non condensing)
1 year warranty
