Specifications: Interfaces/Ports Details: 1 x E&M
Dimensions: 3" x 0.70" x 9.72"
Weight (Approximate): 1 lbs.

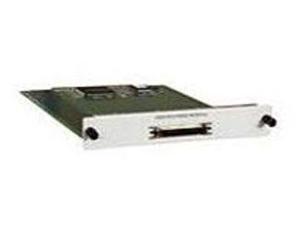

Features: Total Access 1500 channel unit
Used for PBX applications or Analog Cross Connects
50 pin AMP connectors for connectivity
Requires a BCU (L1 or L2) in Total Access 850
600 ohms (4-wire) or 600 ohms + 2.15 ¼F (2-wire) VF interface with DC isolation
Provisioning by onboard switches or craft interface
2-wire mode: TLP transmit input range of 0.0 to -9.0 dBm. TLP receive output range of -9.0 to 0.0 dBm
4-wire mode: Up to 12.0 dBm transmit and receive attenuation. TLP transmit input range of -3.5
to +8.5 dBm. TLP receive output range of -3.5 to +8.5 dBm
Compatible with Types I, II, III or V E&M signaling interfaces
Extended operating temperature range from -40°C to +65°C
Meets UL 1950, NEBS Level 3, FCC, and PUB4...

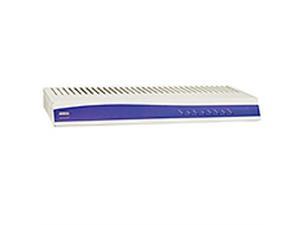

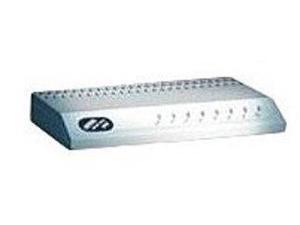

Features: All-rate DSU/CSU module with automatic rate adaption.
Provides V.35 and EIA-232 serial interfaces.
Synchronous loop and DTE rates from 2.4 kbps to 64 kbps.
Asynchronous DTE rates from 2.4 kbps to 57.6 kbps.
Asynchronous secondary port operates at 75 bps to 2400 bps, depending on primary channel rate.
Manual, DTR Dial, AT Commands, V.25 bis, or stored number dialing.
Derives timing from an internal oscillator, the network, or an external DTE device.
115 VAC power.
