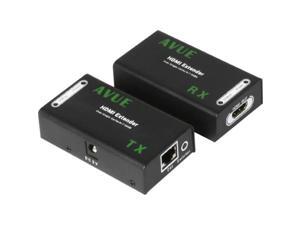

Specifications: Power Supply: 2pc x DC 5V/1A
Power Consumption 3W (max) each
Temperature: -10 degree C ~ 60 degree C
Link Connector (Sender/Receiver): UTP/STP CAT5e/6
Relative Humidity: 20%~90%
Features: Extends HDMI up to 100m/350 ft. for 1080p over one CAT5.
Follow the standard of IEEE-568B
Supports resolutions up to 1080p Full HD
Supports Ethernet bandwidth: 100M/350 Ft.
Extends by Router connection or LAN connection,
Cable length requirements are as follows:
a.CAT5 Maximum 80 meters between two Devices
b.CAT5e Maximum 100 meters between two Devices
c.CAT6 Maximum 120 meters between two Devices
Specifications: Network Wiring: UTP Cable 24-16 AWG (0.5-1.31mm)
Category Type: 5 or 5E suggested
Impedance: 100 +/- 20
Differential Capacitance: 19 pF/ft max (62 pF/m max)
DC Loop Resistance: 52O/1000 ft. (18O/300 ft.)
0-55 degree C
Relative Humidity: 0-9 %
per AN SI/EE
E 587 C62.41

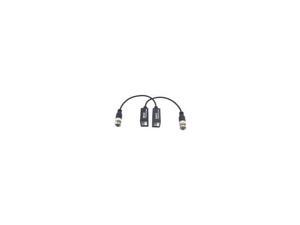

Features: Wave interference rejection and noise filter protection.
Transmission Signal: 1 Vpp composite video.
Transmission distance up to 300m/1000 ft. working with passive transceivers.
Transmission distance up to 600m/2000 ft. working with active transceivers.
Compatible with worldwide formats including PAL, NTSC and SFCAM.
Built-in surge and transient protection.
Specifications: Input: HD-SDI (SMPTE-292M/296M), BNC-type
Output: HDMI 1.3
Transmit distance: Up to 300 ft.
Supported Resolution: 720p at 50/59.94/60Hz, 1080i at 50/59.94/60 Hz,1080p at 24/30 Hz
Power supply: DC12V, 200mA
Dimension: 110(L) x 96(W) x 26(H) mm, 200g
Operating: 0 degree to 40 degree C / 32 degree to 104 degree F
Storage: -20 degree to 70 degree C / -4 degree to 158 degree F
Features: High quality 20-bit
Support high Resolution (HD)
1080p - 24/30 Hz
1080i - 50/59.94/60 Hz
720P - 50/59.94/60 Hz
Automatic HD-SDI detection
Input: HD-SDI, Output: HDMI
