Audio Chipset: SupremeFX High Definition Audio CODEC
PCI Express 3.0 x16: 4 x PCIe 3.0 x16 slots (supports x16, x16/x16, x16/x8/x8, x16/x8/x8/x8 or x8/x8/x8/x8 mode with 40-LANE CPU; x16, x16/x8 or x8/x8/x8 mode with 28-LANE CPU)* [CPU]
* The PCIE_X8_4 slot shares bandwidth with M.2 and U.2.
In 4-Way configuration, if the PCIEX_16/X8_1 is used in x16 mode, both U.2 and M.2 ports will be disabled.
In 2-Way and 3-Way configuration, U.2 port will be disabled.
PCI Express 3.0 x16: 2 x PCI Express 3.0 x16 slots (single at x16 mode or dual at x8 mode)
1 x PCI Express 3.0 x16 slot (max. at x4 mode)
Onboard Video Chipset: Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: DisplayPort, HDMI, D-sub, DVI ports
Supports DisplayPort 1.2 with max. resolution 4096 x 2304@60Hz
Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz
Supports DVI with max. resolution 1920 x 1200@60Hz
Supports D-sub with max. resolution 1920 x 1200 @60Hz
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Maximum shared memory of 512MB
- Supports NVIDIA 2-Way/Quad-GPU SLI Technology
- Supports AMD 3-W...
Specifications: Interface: M.2 to Mini SAS HD
Supported Protocol: PCI Express
Dimension: 65 x 22 x 15mm (w/h/d)
Weight: 12g (main unit only)
ASUS Compatible Motherboards:
RAMPAGE V EXTREME/USB 3.1
RAMPAGE V EXTREME
PCI Express 2.0 x16: 3 x PCIe 2.0 x16 (dual x16 or x16/x8/x8) *1
1 x PCIe 2.0 x16 (x4 mode, black)
*1: When running dual graphics cards, be sure to insert the card in the first and third PCIex16 slot to get the best performance.

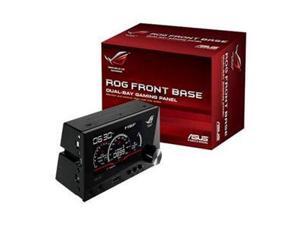

Specifications: Display: 2.6" LCM
-POWER:1 x SATA power connector
-ROG_EXT port:1 x 18-1 pin data connection port
-FAN: 4 x 4-pin extra Fan connectors
-Voltage: +12V, +5V, +5VSB
-Power consumption: 5A
-1 x 5.25" drive bay required for NORMAL Mode installation
-1 x SATA power cable from system power supply
-Maximus VI Series (Extreme/Formula/Gene/Hero/Impact) and other motherboards with ROG_EXT port
Audio Chipset: ROG SupremeFX 2015 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
- ESS ES9023P DAC: dB SNR, dB THD+N (Max. kHz/ -bit)
- TI RC4580 2VRMS audio OP AMP(s)
- Gold-plated jacks
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SenseAmp
- Sonic Studio II
- Sonic Radar II
PCI Express 3.0 x16: 2 x PCIe 3.0/2.0 x16 (x16 or dual x8, gray)
1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
PCI Express 3.0 x16: 2 x PCI Express 3.0/2.0 x16 slots (single at x16 or dual at x8/x8 mode)
1 x PCI Express 3.0/2.0 x16 slot* (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices)
* The PCIe x16_3 slot shares bandwidth with SATA6G_56. The PCIe x16_3 is default set at x2 mode.
Onboard Video Chipset: Integrated ATI Radeon HD 3000 GPU
Multi-VGA output support: HDMI/DVI/RGB ports *1
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 2560 x 1440 @ 75 Hz
Maximum shared memory of 1024MB
Hybrid CrossFireX Support
*1: Support dual VGA output: HDMI & RGB, DVI & RGB.
