Deactivated Item
-
-
-
Manufacturer Warranty
Beyond any applicable Newegg return policy, this item is warranted independently by the product's Manufacturer. Below is a summary provided for convenience only and may not be accurate or current.
Use this link for full details.
- Manufacturer Limited Warranty period (parts): 1 year
- Manufacturer Limited Warranty period (labor): 1 year
Manufacturer Contact Info
Return Policies
This item is covered by Newegg.com's Standard Return Policy.
- Return for refund within: 30 days
- Return for replacement within: 30 days
- Restocking Fee: Yes
|
-
- 5
-
- 50%
- 4
-
- 22%
- 3
-
- 9%
- 2
-
- 8%
- 1
-
- 11%
| Product Rating: |

|
| Total Reviews: |
174 |
Best Motherboard for AM2 Processors
- Pros: Supports the latest AM2 6400+ processor. 6 SATA/300 connectors, 3 PCI connectors.
- Cons: only 1 IDE port, which caused me to upgrade from IDE/133 harddrives to SATA/300 harddrives and glad I did!!
- Other Thoughts: My most favorite motherboard. When I bought my first board in 4Q06, the current 6400+ processors were not out. This board continued supporting later processors and higher voltage memory chips, where many of my older boards would not support beyond the technology available when they were built. Only problem I have had is when I upgraded from a 4600+ to a 6400+ proc, I received an error "processor revision unknown, press F1" on boot up, but a bios upgrade 10-4-2007 from MSI's web site solved the issue. The BIOS is super easy, even setting up RAID. Though I do not over clock, the BIOS makes it easy for those who do. In fact I like this board so much I bought a second, purchased from NewEgg.com.
MSI Rocks!!
- Pros: Very stable and fast! Good layout, great features and awesome performance! I have read reviews from people on here that had bad experiences w/MSI, but I have had nothing but the best from them. I once emailed and asked where I could purchase some items because I got an oem board and they sent them for FREE! No questions, just asked for my address! I will own nothing but MSI from now on.
- Cons: Cpu temp is off, says my cpu is -21C, but Farenheit is fine so nbd.
- Other Thoughts: There was no tweaking, no fussing and no wait, installed OS, my game and hopped onto a server and started playing!! As always Newegg was great!
What a beauty!!!
- Pros: This MB is one of the best one I have seen. It is functional and very capable, so far is been running with no issues, no crashes or any delays.
- Cons: Can't think of anyone right this second.
- Other Thoughts: None
| Model |
| Brand |
MSI |
| Model |
K9N SLI Platinum |
| Supported CPU |
| CPU Socket Type |
AM2 |
| CPU Type |
Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB |
1000MHz Hyper Transport (2000 MT/s) |
| Chipsets |
| North Bridge |
NVIDIA nForce 570 SLI MCP |
| Memory |
| Number of Memory Slots |
4×240pin |
| Memory Standard |
DDR2 800 |
| Maximum Memory Supported |
8GB |
| Channel Supported |
Dual Channel |
| Expansion Slots |
| PCI Express x16 |
2 |
| PCI Express x1 |
2 |
| PCI Slots |
3 |
| Storage Devices |
| PATA |
1 x ATA100 2 Dev. Max |
| PATA RAID |
NV RAID 0/1/0+1 JBOD |
| SATA 3Gb/s |
6 |
| SATA RAID |
NV RAID 0/1/0+1/5 JBOD |
| Onboard Video |
| Onboard Video Chipset |
None |
| Onboard Audio |
| Audio Chipset |
Realtek ALC883 |
| Audio Channels |
8 Channels |
| Onboard LAN |
| Max LAN Speed |
Dual 10/100/1000Mbps |

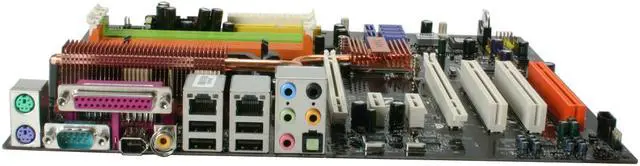

| Rear Panel Ports |
| PS/2 |
2 |
| COM |
1 |
| LPT |
1 |
| USB 1.1/2.0 |
4 x USB 2.0 |
| IEEE 1394 |
1 x IEEE 1394a |
| S/PDIF Out |
1 x Optical, 1 x Coaxial |
| Audio Ports |
5 Ports |
| Onboard USB |
| Onboard USB |
6 x USB 2.0 |
| Onboard 1394 |
| Onboard 1394 |
1x 1394a |
| Physical Spec |
| Form Factor |
ATX |
| Dimensions |
12.0" x 9.6" |
| Windows Vista |
Certified for Windows Vista |
| Power Pin |
24 Pin |
| Features |
| Features |
The 2nd PCI-E x16 is compatible with PCI-E x 8 |
| Packaging |

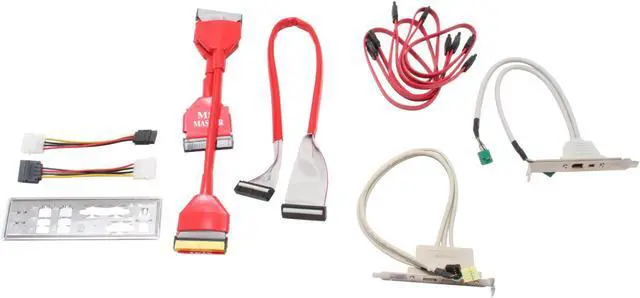

| Package Contents |
K9N SLI Platinum
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
4 x SATA Cable
2 x Power Cable

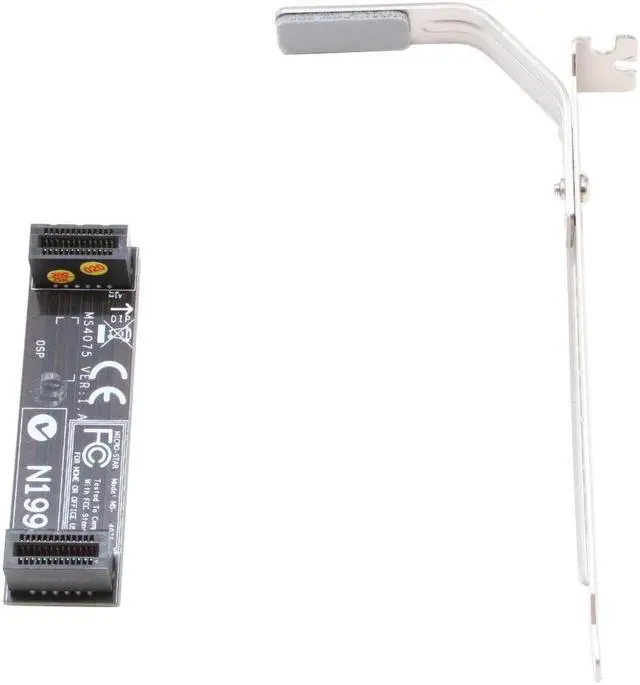

SLI Bridge
SLI Retention Bracket
USB Bracket
IEEE 1394 Bracket |
| Manufacturer Warranty |
| Parts |
1 year limited |
| Labor |
1 year limited |
|
|
Reviewed By: LostEvolution on 1/23/2008
Tech Level: high - Ownership: more than 1 year
