A simple and inexpensive motherboard for the enthusiast or the first time builder, the MSI K9N6PGM-F is a great starting point for anyone wanting to build a system or upgrade their current motherboard. Designed with the small form factor case in mind, this motherboard will fit into most small desktop systems.
Equipped with an AMD socket AM2, suitable for Athlon 64 processors, including the X2 and FX series, the K9N6PGM-F is more than capable of handling anything you may want to run. Using the Nvidia GeForce 6100 chipset with integrated graphics in conjunction with up to 2GB's of DDR2 memory, the it's perfect for those that don’t need a discrete graphics card.
It also includes a gigabit Ethernet port, onboard 7.1 channel sound, and 2 SATA ports. And because of those 2 ports, by adding multiple hard drives to the system the K9N6PGM-F supports RAID 0 and RAID 1. The K9N6PGM-F has multiple expansion slots to use including one x16 and one x1 PCIe slots, plus an additional two PCI slots. Build a powerful system: the MSI K9N6PGM-F is a great foundation.
-
- 5
-
- 47%
- 4
-
- 43%
- 3
-
- 10%
- 2
-
- 0%
- 1
-
- 0%
| Product Rating: |

|
| Total Reviews: |
21 |
Excellent features in a tiny package
- Pros: Onboard Gigabit LAN, nForce 4 Chipset, Dual Channel RAM, MSI Quality/Support, Access to MSI Live Update & PC Alert utilities, Nice onboard HD sound
- Cons: Poor placement of SATA ports, especially when a PCIe video card is installed.
- Other Thoughts: I'm a big fan of MSI, as of late. I suppose I've had fairly good luck, but I have also RMA'd two bad boards with them (one recently) and they are great to work with. This is likely the last upgrade for my SFF custom mod case. And, finally, dual channel RAM on a board that is no deeper than 8.2" and SATA II, to boot! For the SATA ports issue mentioned in the cons, I used a 90 degree SATA cable and it did the trick. Last note: With this board, I used an Athlon 64 3500+ CPU, 2GB of Corsair XMS2 DDR2 675 RAM, a WD2500KS SATA2 Hard drive & an XFX 7900GT with excellent results.
MSI K9N6PGM Motherboard
- Pros: Works like a champ, installation went very smoothly, system seems to run very fast with AMD 4200 mhz AM2 processor, On-Board video graphics card will run all of my games, such as BF2, BF2142 command and conquer, very high graphics demanding card.
Would recommend and buy again. Website via Live Update 3, does a good job updating bios and drivers
- Cons: Not many extra items such as 3 pin headers for extra fans, only one eide controller, limited amount of usb port, if you are looking for the extra items on a board then this one may not be for you
- Other Thoughts: Basic board this MB is great
| Model | K9N6PGM-F |
| CPU Socket Type | AM2 |
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB | 1000MHz Hyper Transport (2000 MT/s) |
| North Bridge | NVIDIA GeForce 6100 |
-
- 5
-
- 47%
- 4
-
- 43%
- 3
-
- 10%
- 2
-
- 0%
- 1
-
- 0%
| Product Rating: |
|
| Total Reviews: |
21 |
BIG video cards block the SATA ports!!
- Pros: Nice board, well constructed and for the most part well laid out... with some exceptions noted below. MicroATX will always keep things a bit tight, though.
- Cons: My new double wide nVidia card's fan blocks the SATA ports and almost blocks the front panel USB and other ports!!!! Gonna try to get right angle SATA cables and see if this can be alleviated, but it is POOR design to have these cable ports under the PCI slot next to the PCIx16 slot. Research how all your pieces will go together. Also research carefully your processor choice. DOES NOT SUPPORT newest 6000+ or 6400+ X2 processors, running at 125 degrees. I had to ship back one and downgrade. Go to manufacturer web page and do your homework.
- Other Thoughts: For the price difference, go ahead and go for the one with four SATAs and onboard 1394 Firewire... I feel like I shoulda. May still, who knows. SATA blockage is a major pain, and frustrated me greatly. Otherwise a five egger, but the major pain problem lost 'em a couple.
No problem of any kind
- Pros: Did not encounter any problem. Good bargain.
- Cons: None at this price.
- Other Thoughts: Using with a AMD Athlon 64 X2 4600+(65W) Windsor 2.4GHz, 2 seagate 400GB SATA, 1 Maxtor 320 gb ATA etc.
Great NO DOA
- Pros: Love it. Installed fine and started up right away.
- Cons: horrible startup screen. haha i'm picky
- Other Thoughts: my system...
MSI K9N6PGM-F AM2 NVIDIA GeForce 6100 Micro ATX AMD Motherboard;
AMD Athlon 64 X2 4600+ Windsor 2.4GHz Socket AM2 Processor;
A-DATA 2GB (2 x 1GB) 240-Pin DDR2 SDRAM DDR2 800 (PC2 6400);
COOLMAX V-500 ATX 500W PSU;
Linkworld 435-13 C2228 Black/ Silver Steel Case
| Model |
| Brand |
MSI |
| Model |
K9N6PGM-F |
| Supported CPU |
| CPU Socket Type |
AM2 |
| CPU Type |
Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB |
1000MHz Hyper Transport (2000 MT/s) |
| Chipsets |
| North Bridge |
NVIDIA GeForce 6100 |
| South Bridge |
NVIDIA nForce 410 |
| Memory |
| Number of Memory Slots |
2×240pin |
| Memory Standard |
DDR2 800 |
| Maximum Memory Supported |
2GB |
| Channel Supported |
Dual Channel |
| Expansion Slots |
| PCI Express x16 |
1 |
| PCI Express x1 |
1 |
| PCI Slots |
2 |
| Storage Devices |
| PATA |
1 x ATA100 2 Dev. Max |
| SATA 3Gb/s |
2 |
| SATA RAID |
0/1 |
| Onboard Video |
| Onboard Video Chipset |
NVIDIA GeForce 6100 |
| Onboard Audio |
| Audio Chipset |
Realtek ALC883 |
| Audio Channels |
8 Channels |
| Onboard LAN |
| LAN Chipset |
Realtek 8211BL |
| Max LAN Speed |
10/100/1000Mbps |

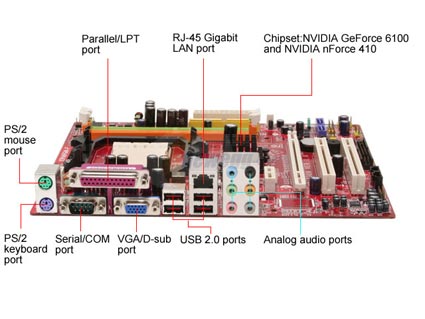

| Rear Panel Ports |
| PS/2 |
2 |
| COM |
1 |
| LPT |
1 |
| Video Ports |
D-Sub |
| USB 1.1/2.0 |
4 x USB 2.0 |
| Audio Ports |
6 Ports |
| Onboard USB |
| Onboard USB |
2 x USB 2.0 connectors support 4 ports |
| Physical Spec |
| Form Factor |
Micro ATX |
| Dimensions |
9.6" x 8.2" |
| Power Pin |
24 Pin |
| Packaging |
| Package Contents |
K9N6PGM-F
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
SATA Cable
Power Cable |
| Manufacturer Warranty |
| Parts |
2 years limited |
| Labor |
2 years limited |
Introduction
A simple and inexpensive motherboard for the enthusiast or the first time builder, the MSI K9N6PGM-F is a great starting point for anyone wanting to build a system or upgrade their current motherboard. Designed with the small form factor case in mind, this motherboard will fit into most small desktop systems.
Equipped with an AMD socket AM2, suitable for Athlon 64 processors, including the X2 and FX series, the K9N6PGM-F is more than capable of handling anything you may want to run. Using the Nvidia GeForce 6100 chipset with integrated graphics in conjunction with up to 2GB's of DDR2 memory, the it's perfect for those that don’t need a discrete graphics card.
It also includes a gigabit Ethernet port, onboard 7.1 channel sound, and 2 SATA ports. And because of those 2 ports, by adding multiple hard drives to the system the K9N6PGM-F supports RAID 0 and RAID 1. The K9N6PGM-F has multiple expansion slots to use including one x16 and one x1 PCIe slots, plus an additional two PCI slots. Build a powerful system: the MSI K9N6PGM-F is a great foundation.
Highlights
 |
AMD Socket AM2
This motherboard supports AMD's Socket AM2-based CPUs, including the Athlon 64 X2, Athlon 64 FX and Athlon 64 series. With a 2000MHz system bus using Hyper Transport Technology and support for dual-channel DDR2 RAM, AM2 motherboards form the basis for phenomenal system performance
|
 |
NVIDIA GeForce 6100 GPU and nForce 410 Chipset
Microsoft DirectX 9.0 Shader Model 3.0 and NVIDIA's advanced PureVideo technology allow the integrated NVIDIA GeForce 6100 GPU to deliver ultra-realistic effects and unmatched multimedia functionality for incredible PC gaming and multimedia experiences. The NVIDIA nForce 410 MCP also provides SATA 3Gb/s ports with RAID support as well as onboard LAN support.
|
 |
Dual-Channel DDR2 800
DDR2 next generation memory technology replaces current DDR memory and provides a walloping performance boost. With support for up to 800MHz DDR2 memory, the MSI K9N6PGM-F delivers fantastic performance in extreme 3D graphics environments and in memory intensive applications.
|
 |
SATA II with RAID Support
The second generation SATA interface delivers up to 300MB/sec transfer speed, doubling that of the first generation Serial ATA. Two SATA II ports support RAID 0 and 1 for better performance and enhanced data security.
|
 |
Gigabit Ethernet Connectivity
The MSI K9N6PGM-F features a fast Gigabit network interface for high-speed LAN connections at up to 1000Mb/s data transfer rates. Gigabit LAN is ideal for supercharged seamless streaming of Internet audio and video content.
|
Quick Specs
| CPU Socket Type | AM2 |
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB | 1000MHz Hyper Transport (2000 MT/s) |
| North Bridge | NVIDIA GeForce 6100 |
| South Bridge | NVIDIA nForce 410 |
| Memory Standard | DDR2 800 |
| Onboard Video Chipset | NVIDIA GeForce 6100 |
| PCI Express x16 | 1 |
| SATA 3Gb/s | 2 |
| Max LAN Speed | 10/100/1000Mbps |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Form Factor | Micro ATX |
|
