Item#: N82E16813130514

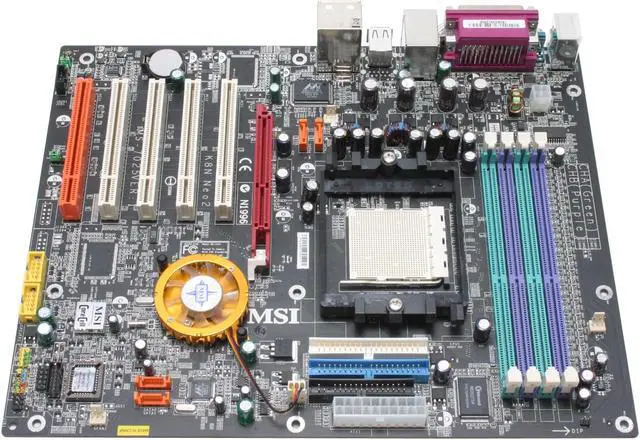

MSI K8N Neo2-F 939 NVIDIA nForce3 Ultra ATX AMD Motherboard

  • NVIDIA nForce3 Ultra
  • Athlon 64 FX / Athlon 64 / Sempron
  • DDR 400
ICON Loading...

Learn more about the MSI K8N Neo2-F


K8N Neo2-F

Supported CPU

CPU Socket Type
CPU Type
Athlon 64 FX / Athlon 64 / Sempron
1000MHz Hyper Transport (2000 MT/s)


NVIDIA nForce3 Ultra


Number of Memory Slots
Memory Standard
DDR 400
Maximum Memory Supported
Channel Supported
Dual Channel

Expansion Slots

AGP Slots
1 x AGP 4X / 8X
PCI Express x16
PCI Slots

Storage Devices

2 x ATA100 4 Dev. Max
SATA 1.5 Gb/s
NV RAID 0/1/0+1 JBOD

Onboard Video

Onboard Video Chipset

Onboard Audio

Audio Chipset
Realtek ALC850
Audio Channels
6 Channels

Onboard LAN

LAN Chipset
Marvell 88E1111 PHY
Max LAN Speed

Rear Panel Ports

USB 1.1/2.0
4 x USB 2.0
1 x Optical, 1 x Coaxial
Audio Ports
5 Ports

Internal I/O Connectors

Onboard USB
4 x USB 2.0

Physical Spec

Form Factor
12.0" x 9.6"
Power Pin
20 Pin

Manufacturer Warranty

1 year
1 year

Quick Info


  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year

Customer Reviews of the MSI K8N Neo2-F

Do you own this product? Write a Review

ICON Loading...

Filter Results

  • Anonymous
  • 11/29/2005 7:04:55 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month

5 out of 5 eggsNice!

Pros: *AGP
*lots of Bios update (official and unofficial modded)
*Overclock options in newer and modded bios
*Stable Vcore and Vdimm, modification also available

Cons: *MB Bus Speed: 200-300mhz official, depening on your luck you can stuck at less than 300.
*NO PCI-Express, so NO upgrade to newer technology
*SATA ports 1 and 2 unlocked, use slots 3 and 4 (closest to the cpu)

Other Thoughts: I set up a system with this MB, Venice 3000+, XP-90 HS, 90mm Nexus fan, and extra parts I had. Mine runs stable 2565MHz(285x9) @ 1.55 Vcore (1.475 +8.3% in the bios), 3x HT with Corsair VS 1GB (512x2) @ 2.5-3-3-8 1T timing, 2.6 Vdimm using 133 Mem divider to compensate and finally 1.C3 Bios by sideeffects. Considering my venice can go higher than the MB bus speed, I wish I tried Platinum version or DFI lanparty and probably could've hit 2700MHz. But, overall it's stable and nice MB. I am quite happy about the OC result (42% OC from 1800 stock speed)! The lan problem was easy to fix.

Did you find this review helpful? Yes No

  • brad m.
  • 11/28/2005 8:07:41 PM
  • Tech Level: Average
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsDOA

Pros: good price

Cons: dead!!!!!!!!!!!!!!

Other Thoughts: msi has been good in the past, heard they have had doa problems with this board.

Did you find this review helpful? Yes No

  • Thomas P.
  • 11/28/2005 2:34:44 PM
  • Tech Level:
  • Ownership:

1 out of 5 eggsDOA

Comments: This board was dead on arrival.
Can't give high marks on a dead board. It0's been gone RMA to MSI for two weeks..............
I've used plenty of MSI boards in the past and had zero problems.
In the mean time I bought a Gigabyte K8NSC-939 and couldn't be happier.
Now I'll have to sell the RMA'd MSI mobo.

Did you find this review helpful? Yes No

  • Anonymous
  • 11/23/2005 8:26:34 AM
  • Tech Level:
  • Ownership:

4 out of 5 eggsnice 939 w/ AGP

Comments: Basically it is the Platinum version minus a second LAN. stable, and works like a charm with my 3000+venice.

Did you find this review helpful? Yes No

  • Scott C.
  • 11/23/2005 5:53:31 AM
  • Tech Level:
  • Ownership:

5 out of 5 eggsAwesome Board!

Comments: What a great board this is. AMD64 Socket 939 support with all the right bells and whistles, and it won't break the bank. MSI makes great products, and this is one of them. This board is the same as the Platinum but without the second LAN or FireWire. Yes, the net interface didn't work out of the box as detailed elsewhere here, but entering the MAC code into windoz solved the problem.

Purchased this system to replace an MSI K7N2 Delta board that I have grown to love over the last two years. Love it so much, transitioning to this new nForce 3 board has been really difficult!! Wish I could use both at once!!

Did you find this review helpful? Yes No

  • Anonymous
  • 11/21/2005 2:46:15 PM
  • Tech Level:
  • Ownership:

4 out of 5 eggsNice board for this price

Comments: I also bought an AMD 3700+ San diego and 2gb Geil PC3200.

First the conns:

IDE pins are too close together. Its a very tight squeeze getting them all in there.
Ram configuration was a bit confusing. In order to run dual channel, you put each stick in a different color slot when using just 2 sticks. Would make more sense to me to have the sticks go into same color slots.
The manual is a little weak. It could have much better details.

Very stable
Nice overclocking features
Online bios and software updates
Takes most ram types
Nice periphials come with it like extra USB 2.0 ports.

I considered the ASrock ULI board because I have an X800XL and I may want to upgrade to PCIe in the future. This board was only $10 more and has a very good reputation and better OC options.

I upgraded from an Nforce2 ultra 400 Soltek board and a 2800+ OC'd to 2312mhz.

This rig is absolutely blowing it away. I was really surprised at the increase.

Did you find this review helpful? Yes No

  • Thomas G.
  • 11/16/2005 1:59:52 PM
  • Tech Level:
  • Ownership:

2 out of 5 eggsno right side sound

Comments: cant get right side sound, drivers, different speakers and headphones. Header board plugs inside have right side, rear plugs dont even when AC97 configured for 2 channel operation.

Did you find this review helpful? Yes No

  • Lynn M.
  • 11/16/2005 12:11:17 PM
  • Tech Level:
  • Ownership:

5 out of 5 eggs

Comments: great motherboard, works perfect, i made a mistake when i installed the bios of including the ide controller but apparently you arent supposed to install that with windows xp, so that was human error, anyway this is the greatest board for the price that you are going to find, this is a must buy

K8N neo2-f socket 939
athlon 64 3000 venice core
radeon 9600 xt 256 mb
512 pc 3200 ocz
480 watt thermaltake
40 gig maxtor
30 gig segate
soon to be 36.7 gig WD raptor

Did you find this review helpful? Yes No

  • Anonymous
  • 11/15/2005 1:06:49 PM
  • Tech Level:
  • Ownership:

5 out of 5 eggsBest out there

Comments: i have the plat. of this mobo and i just bought this one for a friend. both are worth more than your money. no problems and it runs everything. best OC option too.

Did you find this review helpful? Yes No

  • Martin P.
  • 11/11/2005 10:10:11 PM
  • Tech Level:
  • Ownership:

5 out of 5 eggs

Comments: This is my sencond MSI MB and I am pleased as always, the only thing I find bad is that it will not allow me to adjust the core voltage down.

Did you find this review helpful? Yes No
