Item#: N82E16813151008

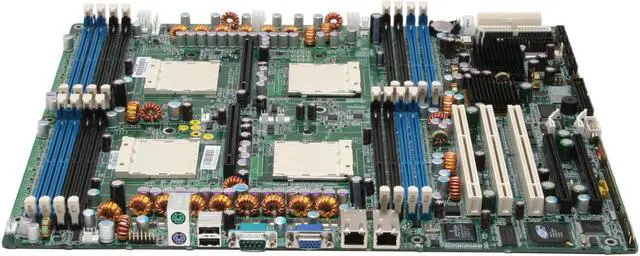

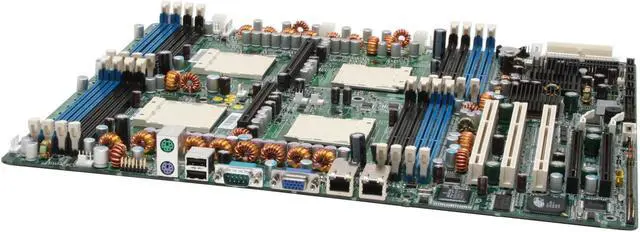

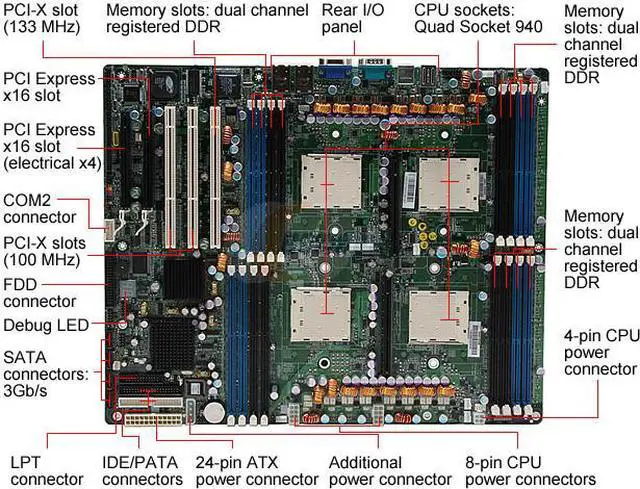

TYAN S4881G2NR SSI MEB v3.5 footprint Server Motherboard

TYAN S4881G2NR SSI MEB v3.5 footprint Server Motherboard Quad 940 NVIDIA nForce Professional 2200 + AMD 8131

5 out of 5 eggs (2)   |   Write a Review
  • Quad 940
  • NVIDIA nForce Professional 2200 + AMD 8131 Winbond W83627HF Super I/O ASIC
  • Two analog Devices ADT7468 Hardware Monitoring IC
  • 16 x 184Pin
ICON Loading...

Learn more about the TYAN S4881G2NR

Model

Brand
TYAN
Model
S4881G2NR

Supported CPU

CPU Socket Type
Quad 940
CPU Type
Quad AMD Opteron

Chipsets

North Bridge
NVIDIA nForce Professional 2200 + AMD 8131
Other Chipset
Winbond W83627HF Super I/O ASIC
Two analog Devices ADT7468 Hardware Monitoring IC

Memory

Number of DDR Slots
16 x 184Pin
DDR Standard
DDR 400/333/266
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
ECC Supported
Yes
Registered
Yes

Expansion Slots

PCI Express x16
1
PCI Express x4
1 x16 PCI Express slot with x4 signal
PCI-X Slots (64-bit 133MHz)
1
PCI-X Slots (64-bit 100MHz)
2

Storage Devices

PATA
2 x ATA 133 4 Dev. Max
SATA
4 x SATA 3.0Gb/s
SATA RAID
0/1/0+1

Onboard Video

Onboard Video Chipset
ATI RAGE XL PCI graphics controller
8MB Frame Buffer of video memory

Onboard LAN

LAN Chipset
Broadcom BCM5704C
LAN Speed
10/100/1000Mbps
Second LAN Chipset
Broadcom BCM5704C
Second LAN Speed
10/100/1000Mbps
Max LAN Speed
Dual 10/100/1000Mbps

Rear Panel Ports

PS/2
2
COM
1
Video Ports
1
USB 1.1/2.0
2 x USB 2.0

Onboard USB

Onboard USB
6 x USB 2.0

Onboard 1394

Onboard 1394
2 x 1394a

Physical Spec

Form Factor
SSI MEB v3.5 footprint
Dimensions
13.0" x 16.0"

Packaging

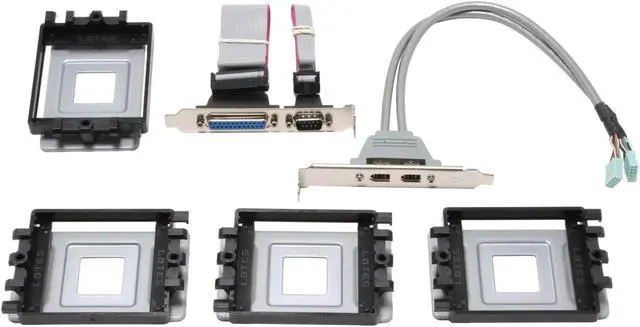

Package Contents
S4881G2NR
User Manual
Software Disk
Rear I/O Panel Shield
4 x SATA Cable
FDD Cable
2 x IDE Cable
2 x Power Cable
LPT and COM Port Bracket
IEEE 1394 Bracket
4 x CPU Clip

Quick Info

Customer Reviews of the TYAN S4881G2NR

Do you own this product? Write a Review

Filter Results

Go
  • sheardat
  • 9/15/2006 7:35:13 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month

5 out of 5 eggslast review must be mistaken

Pros: great motherboard, but want to make sure that buyers understand that they need to purchase 800 series AMD processors to get full benefit of the board. Otherwise you can only use 2 of ther 280 series Italy processors.

Cons: limited extra slots - so only really a server board configuration

15 out of 17 people found this review helpful. Did you? Yes No

  • Phat-
  • 8/12/2006 1:23:36 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month

5 out of 5 eggsWow

Pros: Had you told me last week it was impossible to fall in love with a mobo i would have belived you however i would now dissagree, i run 2 servers; same mobo along with quad AMD Dual-Core Opteron 280 Italy processers and 2 raid arrays of 2tb each, its amazingly fast, use it to compile renders as well as programs and its just blazing fast.

Cons: HAD Serious problems with the driver installation disk provided, talked with Tyan customer support and they said the ones on the disk are outdated, and pointed me towards ones on there site after that i had no problems at all! (Runs a little hot, ideals around 35c in the server room(70f), solved by just turning town the thermostat)

Other Thoughts: The spacing on the cpu slots is a little funky same goes for the ram slots, although after some work i was alble to fit in some suited heatsinks. Folks if you have the money and need some serious tork for that project of yours well here it is!

13 out of 14 people found this review helpful. Did you? Yes No
