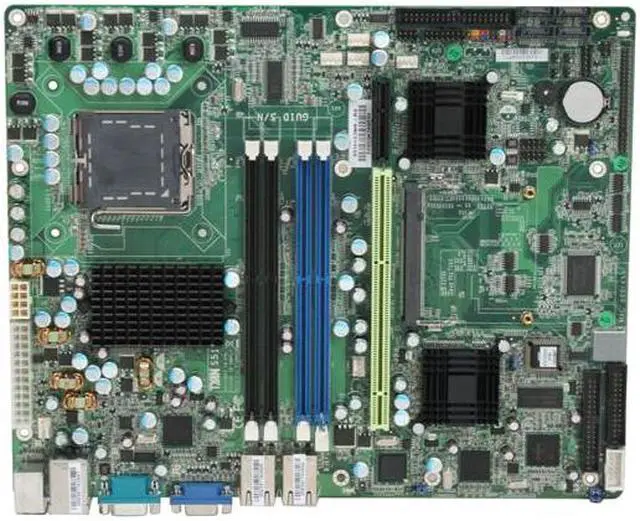

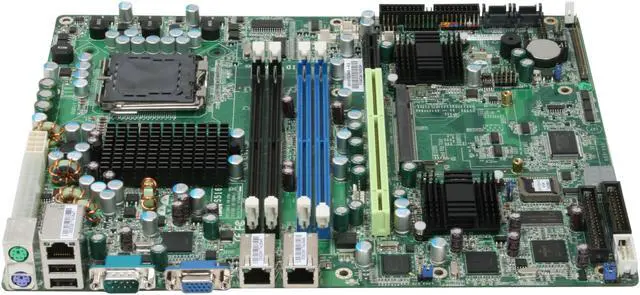

TYAN S5161G3NR-RS LGA 775 Intel E7230 ATX Intel Pentium 4/Pentium D processor Server Motherboard
Image Viewer
Currently Unavailable
Manufacturer Warranty
Beyond any applicable Newegg return policy, this item is warranted independently by the product's Manufacturer. Below is a summary provided for convenience only and may not be accurate or current.
Use this link for full details.
Pros: An excellent server board for a basic server. Three NICs enable easy routing without additional hardware. Also has a decent chipset and supports Pentium D CPU, as well as non-ecc memory.
Cons: The support from TYAN is not very good. Though, I've never talked to anyone from their support team, their website does not offer drivers available for download with the exception of the onboard VGA. If you lose your driver disk, be prepared to hunt down drivers from third party websites.
Other Thoughts: For a low-end server motherboard, I would expect the one slot to be 32-bit PCI, not 64-bit. It's also a full sized board, so there's no reason that there should only be one slot. Fortunately the purpose I had for the board didn't require any peripherals.
1 out of 1 people found this review helpful.
Did you?
Thanks for the valuable feedback you provided!
ESXi whitebox
Reviewed By: arkive on 9/2/2008
Tech Level: high - Ownership: 1 week to 1 month
This user purchased this item from Newegg
Pros: Three onboard nics; two gigabit and one 10/100. ESXi detected all three nics and installed without problems.
Cons: Only one expansion slot, limited processor support.
Other Thoughts: Built a whitebox ESXi server using this board with an Adaptec 2410SA PCI-X raid controller, and a Pentium D 920 processor. Everything installed smoothly and ESXi detected all the hardware properly. Don't forget to go into the bios and enable booting from the raid controller.
3 out of 3 people found this review helpful.
Did you?
Thanks for the valuable feedback you provided!
Excellent affordable server MB
Reviewed By: Ruben on 8/26/2008
Tech Level: somewhat high - Ownership: 1 day to 1 week
This user purchased this item from Newegg
Pros: Built a iscsi SAN using this MB and Opensource Openfiler 3.2. Installed Openfiler 3.2 without any problems to a seagate SATA II 80 HD. Openfiler accessed all the onboard SATA ports & onboard Gig ethernet Nics without issuse. Would highly recommend this MB if installing a linux OS. I decided to buy the MB from previous posted Review that had successfully installed Openfiler thanks...
Cons: None so far...
Other Thoughts: If you want to use software ware using the onboard SATA II port work great, yet I you need better performance I would recommend purchasing a 3ware SATA II controller, which work great in OF.
4 out of 4 people found this review helpful.
Did you?
Thanks for the valuable feedback you provided!
Model
Brand
TYAN
Model
S5161G3NR-RS
Supported CPU
CPU Socket Type
LGA 775
CPU Type
Intel Pentium 4/Pentium D processor
System Bus
1066/800/533MHz
Chipsets
North Bridge
Intel E7230
South Bridge
Intel ICH7R
Other Chipset
SMSC SCH5017 Super I/O chip PXH-V 64-bit PCI Hub
Memory
Number of DDR2 Slots
4 x 240Pin
DDR2 Standard
DDR2 667
Maximum Memory Supported
8GB
ECC Supported
Yes
Expansion Slots
PCI Express x4
One PCI-X 64/133 slot in-lined with one inversed PCI Express x4 slot (routed to PCI Express x8 bus from MCH)
Other Slots
One Tyan TARO SO-DIMM socket
Storage Devices
PATA
1 x ATA 100 2 Dev. Max
SATA
4 x SATA 3.0Gb/s
SATA RAID
RAID 0/1/5/10 capable (RAID 5/10 is only supported under Windows)
Reviewed By: Steve V on 10/1/2008
Tech Level: high - Ownership: 1 month to 1 year
