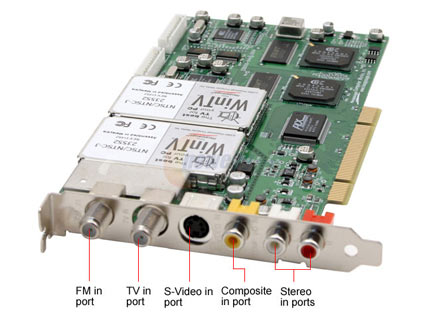

Hauppauge Personal Video Recorder WinTV-PVR 500 MCE White box PCI Interface

  • FM in
  • TV in
  • S-VIDEO in
  • COMP VID in
  • PCI Interface
ICON Loading...

Ever want to watch the ball game while your favorite late night TV show is on? Well, the WinTV-PVR-500 MCE innovatively features two complete TV tuners to allow you to watch one channel while recording another - meaning you don't have to choose which show to watch. Just record that late night TV show while you continue to watch the ball game with full PVR capabilities. The WinTV-PVR-500 MCE is fully compliant with Microsoft Windows XP Media Center Edition 2005, and features dual onboard hardware MPEG-2 encoders to greatly reduce CPU utilization while recording, and will even record two TV shows at once!

  • newegg Dual TV Tuners The WinTV-PVR-500 MCE includes dual 125-channel cable-ready TV tuners - each with a dbx-TV stereo decoder which makes it possible to receive two TV channels at the same time.
  • newegg Dual Hardware MPEG-2 Encoders The WinTV-PVR-500 MCE features dual high-quality MPEG-2 video and audio encoders based on the Conexant CX23416 MPEG encoder solution to greatly reduce CPU utilization while recoding.
  • newegg Two On-board A/V Headers In addition to the back panel Composite/S-Video plus stereo audio inputs, the WinTV-PVR-500 MCE also features two on-board A/V headers allowing connections to two more A/V sources.
  • newegg One FM Radio Receiver The WinTV-PVR-500 MCE’s FM radio receiver allows you to enjoy FM radio broadcasts via your computer and record FM programs onto your hard drive for further enjoyment or editing.
  • newegg Ready for Windows XP MCE 2005 The WinTV-PVR-500 MCE is fully ready for Windows XP Media Center Edition 2005.

Learn more about the Hauppauge WinTV-PVR 500 MCE White box

Model

Brand
Hauppauge
Model
WinTV-PVR 500 MCE White box

General

Type
TV Tuner Cards
TV Tuner
Analog Tuner
TV Standards
NTSC
FM Tuner
Yes
Remote Control
No
Interface
PCI

Features

Windows Vista
Certified for Windows Vista
Features
Watch one channel while recording another with the WinTV-PVR-500MCE and Windows XP Media Center Edition 2005. WinTV-PVR-500MCE contains two complete NTSC TV tuners, each with their own hardware MPEG encoder!
Ever want to watch the ball game while your favorite late night TV show is on? Well, with WinTV-PVR-500MCE, you don't have to chose which show to watch. Just set the Media Center Edition to record that late night TV show while you continue to watch the ball game, with full PVR capabilities. Pause live TV, replay and skip forward, all while your other TV show continues to be recorded to your PC's hard disk .

Specifications

Video Encoding
Hardware Encoding
PVR
Yes
Ports In
FM in
TV in
S-VIDEO in
COMP VID in

System Requirements

Processor
Pentium IV processor 1.2GHz or faster
Available Slot
Free PCI slot
Operating Systems Supported
Windows XP Media Center Edition 2005, Windows XP Home or Windows XP Professional
Note: when using the WinTV-PVR-500 MCE with Windows XP, you need a third party TV application such as SageTV or BeyondTV
Others
Sound card
DVD decoder certified for use with Media Center 2005

Packaging

Package Contents
WinTV-PVR 500 MCE White box
Driver Disk
FM Cable
Back Panel Composite/S-Video Plus Stereo Audio Inputs

Consumer Alert

Consumer Alert
This television receiver has only an analog broadcast tuner and will require a converter box after February 17, 2009, to receive over-the-air broadcasts with an antenna because of the Nation's transition to digital broadcasting. Analog-only TVs should continue to work as before with cable and satellite TV services, gaming consoles, VCRs, DVD players, and similar products. For more information, call the Federal Communications Commission at 1-888-225-5322 (TTY: 1-888-835-5322) or visit the Commission's digital television website at: www.dtv.gov

Manufacturer Warranty

Parts
2 years limited
Labor
2 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 720 days
  • Limited Warranty period (labor): 720 days


Customer Reviews of the Hauppauge WinTV-PVR 500 MCE White box

Do you own this product? Write a Review

Filter Results

Go
  • AUlm27
  • 7/4/2008 7:07:33 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGood Card

Pros: Card is easy to install and works great with MythTV setups.

Cons: I have none.

Other Thoughts: I use this card with a DISH sat via SVideo recording. I'm very happy with results.

Did you find this review helpful? Yes No

  • N/A
  • 6/10/2008 7:36:07 AM
  • Tech Level: Somewhat High
  • Ownership: less than 1 day
  • Verified Owner

2 out of 5 eggsNew Egg Problems or Hauppauge?

Pros: Nothing good about my short time owning this product.

Cons: Had a capacitor missing, didn't bother to try it without it, now knowing whether the card would overhead and damage my computer.

It also came perhaps too tightly packed in the white box.

I'm out over $20 for the shipping costs.

Other Thoughts: New egg sent me a card with a capacitor clearly knocked off. I send it ground shipping across the US for a replacement and by the time it arrived (taking nearly a week) they were out of stock.

Did you find this review helpful? Yes No

  • Linux Adv.
  • 5/29/2008 7:05:09 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggsGreat if you have XP Media edition

Pros: It works, I think its a great buy. Hauppauge makes the best TV tuners from what I have read.

Cons: You need windows xp media centre edition, or Vista with the correct addons. I didn't know this so i use mythTV with Ubuntu

Other Thoughts: I can't play video games on it, there is too big of a lag. I am not sure if it is the hardware or software but I cant get it to work on mythtv or beyondTV,

0 out of 3 people found this review helpful. Did you? Yes No

  • N/A
  • 5/20/2008 6:16:50 AM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsgood product

Pros: works excelent, had no trouble installing this board in computer and installing the drivers was easy to do, it does a great job doing the video recording of video to file saves for future viewing

Cons: you will need a media software, such as beyond-tv to view the tv or line inputs of the tunners

Other Thoughts: none

Did you find this review helpful? Yes No

  • WallyR
  • 5/13/2008 5:25:52 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggs

Pros: Excelent product. Have the samsung tuners and no problem at all.Have tried sage tv and beyond tv. both are great tv applications and work really well. Using xp home.Easy to install drivers. Got updated drivers from the hauppauge website. Easy to follow instructions.If you have a bad picture, check your input signal strength.

Cons: None

Other Thoughts: Wish it was digital

Did you find this review helpful? Yes No

  • Efros
  • 4/25/2008 11:04:00 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsFaultless installation

Pros: Bought for my HTPC with Mediaportal, works fine under XP with a Firefly RF remote.

Cons: Pricey

Other Thoughts: No one can persuade me that celeriac is tasty.

Did you find this review helpful? Yes No

  • Jerky33
  • 4/20/2008 7:06:24 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsExcellent Tuner Card

Pros: I have owned several TV tuner cards in the past, including an older Hauppauge single tuner card that worked well at the time, but this card really is an excellent piece of hardware. My system has gone through several upgrades over the last two years since purchasing this card including RAM CPU and Video Card, but even when I was running a Beyond TV 3.5 on XP Pro with a single core 1.8 Ghz Athlon 64, and 1GB of RAM, the recording and playback performance was flawless. One of the notable differences between this card and all other cards I had owned previously, was the CPU utilization during use, even while recording 2 programs at the same time, this can be attributed to the 2 on-board Connexant MPEG-2 encoding processors, once the video stream has been encoded, all the OS/CPU have to do is playback the video.

Cons: Pros continued: Now that I'm running a Dual core 2.0Ghz Athlon, and 2GB of RAM and Vista Ultimate, I won't dig into Vista's shortcomings, but the Media Center in Vista is solid, and this card is discovered automatically, drivers and all, and is a snap to configure (since there is virtually no configuration, just run the setup wizard in media center.

Now to the Cons:
Errrr..... Uhhhh..... It's not free, or particularly cheap (but definitely worth the asking price). However I do get what looks like some interference or distortion on channel 54, in the form of diagonal lines across the entire screen (present most of the time, not always but most of the time). Other than that noting for the last TWO YEARS.

Other Thoughts: Highly recommended for anyone trying to setup an HTPC (Home Theater PC).

Did you find this review helpful? Yes No

  • TRScheel
  • 4/15/2008 7:29:29 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGreat product

Pros: - Two tuners from one cable input
- Vista MCE recognized it immediately (and recognized both tuners)
- Picture quality is superb
- Recording two shows at once takes 1% from a AMD 3800+ X2. I can literally record two shows with this card and play any game without any lag or drop in recording quality.

Cons: Needs a third tuner... ?

None really

Other Thoughts: Although it looks like it needs two cable inputs, it only needs one. The other input is for the FM tuner.

Did you find this review helpful? Yes No

  • Doakie
  • 3/7/2008 11:05:58 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

4 out of 5 eggsGood PVR

Pros: Works great at capturing two video feeds. I'm using with BeyondTV and they work well together.

Cons: Works good if you can get it to install correctly. I've owned a PVR250 and a now a PVR500 and each ones software and drivers install rather rough.

Did you find this review helpful? Yes No

  • Almagnus1
  • 2/13/2008 3:19:41 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsWhen it works

Pros: When it works, picture quality is excellent, recording functionality works well, and it integrates seamlessly into Vista Ultimate's Media Center

Cons: However, if you have Windows Vista 64 bit (any version) DO NOT GET THIS CARD. There is little good driver support from Hauppauge. You will have extremely flaky performance, and you will be basically staring at either a "No Signal" screen in Media Center or a Green Screen with extremely jumpy picture and sound.

Other Thoughts: When it works, it's great, when it doesn't, life sucks. I've had enough "fun" dealing with this card and I'm looking for a different TV Tuner.

Did you find this review helpful? Yes No
