Deactivated Item
-
-
-
Manufacturer Contact Info
Return Policies
This item is covered by Newegg.com's Standard Return Policy.
- Return for refund within: 30 days
- Return for replacement within: 30 days
- Restocking Fee: Yes
|
-
- 5
-
- 85%
- 4
-
- 5%
- 3
-
- 5%
- 2
-
- 5%
- 1
-
- 0%
| Product Rating: |
|
| Total Reviews: |
21 |
PSU Completely failed after 1 year
- Pros: This power supply has worked well up until recently.
- Cons: After one year of operation, this PSU has managed to completely fail. In addition to simply not powering on anymore, 2 out of 6 hard drives connected to this PSU are also now completely dead. I am quite disappointed.
- Other Thoughts: This power supply was used to power a dual xeon server, with 6 sata hard drives.
Solid PSU Peroid.
- Pros: bought it for my backup rig. Solid rails no problems and really made by FSP. Nice and quiet, lots of cables.
- Cons: non that i can think of.
Only one fan.
- Pros: EPS12V Power Connectors. Very heavy and packed full of components and heatsinks. Quiet fan.
- Cons: Single 80mm fan offers no redundancy in cooling. I hope the single fan can keep going for my Linux server, running 24/7. Also a minor annoyance, there's no master power switch, so you have to pull the plug to get your system to fully power-down!
- Other Thoughts: I bought this for a Tyan EPS12V motherboard, but it turned out that the board worked fine with a standard ATX 12V power supply too. (I gess I should have downloaded and read the motherboard manual carefully first!) I didn't even really need this EPS12V unit at all.
| Model |
| Brand |
SPARKLE |
| Model |
FSP550-60PLG |
| Spec |
| Type |
EPS12V |
| Maximum Power |
550W |
| Fans |
1 |
| PFC |
Active |
| Main Connector |
24Pin |
| +12V Rails |
Single |
| PCI-Express Connector |
1 x 6-Pin |
| SLI |
No |
| Modular |
No |
| Power Good Signal |
100-500ms |
| Hold-up Time |
17ms minimum at nominal input voltage |
| Efficiency |
63% at minimum measured at nominal AC main voltage and frequency with maximum load on all output |
| Over Voltage Protection |
Yes |
| Input Voltage |
100 - 240 V |
| Input Frequency Range |
50/60 Hz |
| Input Current |
10 A |
| Output |
+3.3V@27A,+5V@29A,-5V@0.3A,
+12V@36A,-12V@0.8A,+5VSB@2A |
| MTBF |
100,000 hours on maximum load at +25° C |
| Approvals |
UL 1950, CSA C22.2 Level 3, TUV EN60950, NEMKO EN60950 (CB Report),CE |
| Features |

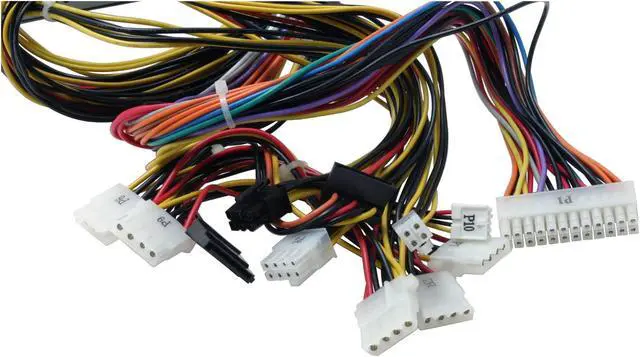

| Connectors |

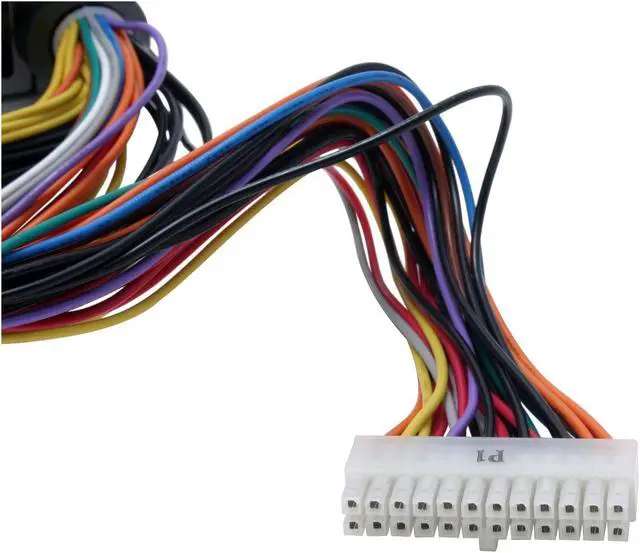

1 x Main connector (24Pin)
1 x 12V(4pin)
1 x 12V(8pin)
5 x peripheral
2 x SATA
1 x Floppy
1 x PCI-E |
| Features |
High efficiency and reliability
Remote On/Off function
Internal 12V DC fan included
Noise Killer (Thermal fan speed control function)
Low noise and ripple
Complies with FCC part 15 subpart J Class B and CISPR 22 Class B
Output over voltage, short circuit, and over current protection
100% Hi-pot, ATE, and burn-in tested
Re-settable power shut down |
|
|
Reviewed By: oproot on 4/9/2006
Tech Level: high - Ownership: more than 1 year
