Deactivated Item
-
-
Similar Items
Not the product you're looking for? We can make some suggestions to help you decide on a product that fits your needs.
view similar products
-
Manufacturer Contact Info
Return Policies
This item is covered by Newegg.com's Standard Return Policy.
- Return for refund within: 30 days
- Return for replacement within: 30 days
- Restocking Fee: Yes
|
-
- 5
-
- 51%
- 4
-
- 21%
- 3
-
- 5%
- 2
-
- 15%
- 1
-
- 8%
| Product Rating: |

|
| Total Reviews: |
100 |
Not Really So Good
- Pros: Its a good PSU for not that hefty of gamers. But read cons for more info!
- Cons: Ok i just purchased a 8800GTS SSC 640MB, and this product says its output on the 12V is @18 and "SpeedFan" a program EVGA suggested i use to look at the voltage. It says its putting out 7.23V i have yet to contact RAIDMAX about a RMA or something.
- Other Thoughts: Good PSU for Low-Medium end graphic cards. If your going to a high end gaming pc this is NOT the PSU for you!!
Seems to be pretty good
- Pros: First off it is very quite, almost no noise. I choose this for my media center pc and I cant hear it at all. Also it has very long cables and a lot of different ends.
- Cons: Just a couple of minor things, One is that the screw holes to mount are very bad and seem to need an electric screw driver to get them in. They screw in at a funny angle. Also the blue light is pretty bright but oh well.
- Other Thoughts: Another cool thing is that it supports SLI, which I am not running. Anyways overall its a very good power supply for the price.
Not too shabby.
- Pros: Bought this PSU a few months back and haven't had any problems yet. It mounted into my Cooler Master Mystique with little fuss. It looks good and runs quieter then my last PSU that had dual 80mm fans.
- Cons: I'm a little worried about the long term durability, only time will tell.
- Other Thoughts: The mounting screws are hard to start. It's better to start them while the PSU is outside the case. Then install the PSU into the case and mounting screws.
| Model |
| Brand |
RAIDMAX |
| Model |
RX-580F |
| Series |
AURORA |
| Spec |
| Type |
ATX12V |
| Maximum Power |
580W |
| Fans |
1 x 120mm Blue LED fan |
| PFC |
No |
| Main Connector |
20+4Pin |
| +12V Rails |
2 |
| PCI-Express Connector |
2 x 6-Pin |
| SLI |
Ready |
| CrossFire |
Ready |
| Modular |
No |
| Input Voltage |
115/ 230 V |
| Input Frequency Range |
50/60 Hz |
| Input Current |
10A @ 115V, 5A @ 230V |
| Output |
+3.3V@30A, +5V@45A, +12V1@18A, +12V2@16, -12V@1.0A, +5VSB@2.5A |
| Approvals |
UL, FCC, CSA, CB, TUV, CE |
| Features |

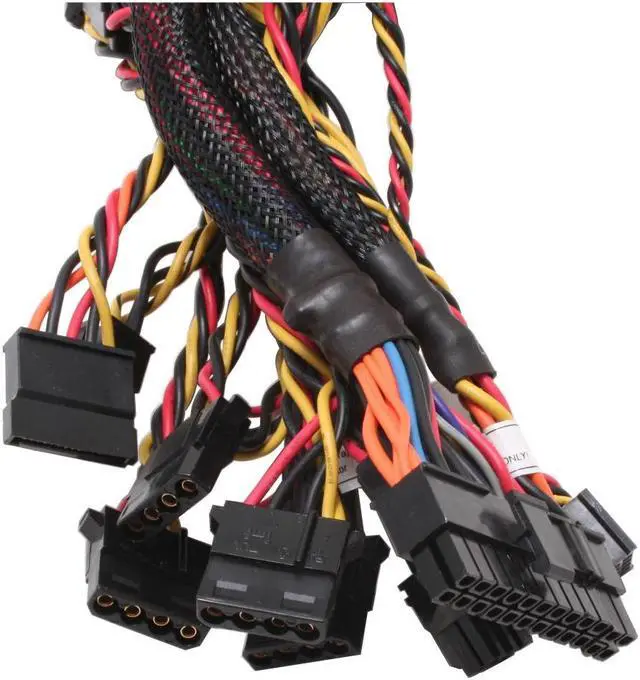

| Connectors |

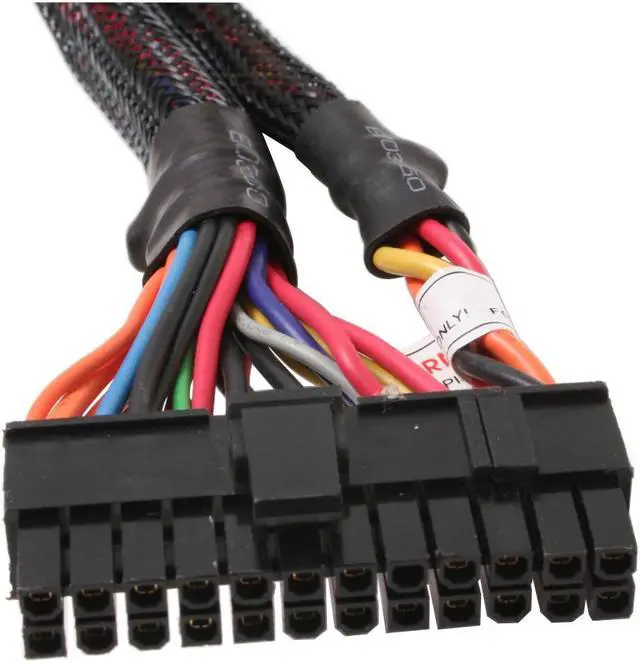

1 x Main connector (20+4Pin)
1 x 12V(P4)
8 x peripheral
4 x SATA
2 x Floppy
2 x PCI-E |
| Features |
Brushed Aluminum / SECC
Heavy duty wrapped VGA/ HDD cable
Hexflo technology allows maximum to flow through your system
Brushed metal body adds a touch of class and durability to the aurora |
|
|
Reviewed By: henneSSy` on 1/8/2008
Tech Level: somewhat high - Ownership: 1 month to 1 year
