Item#:N82E16813128042

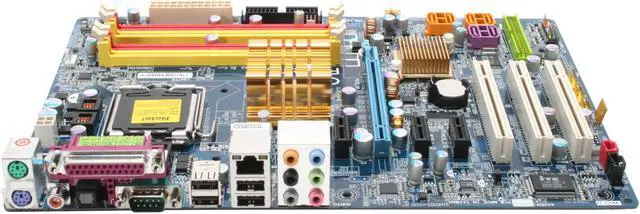

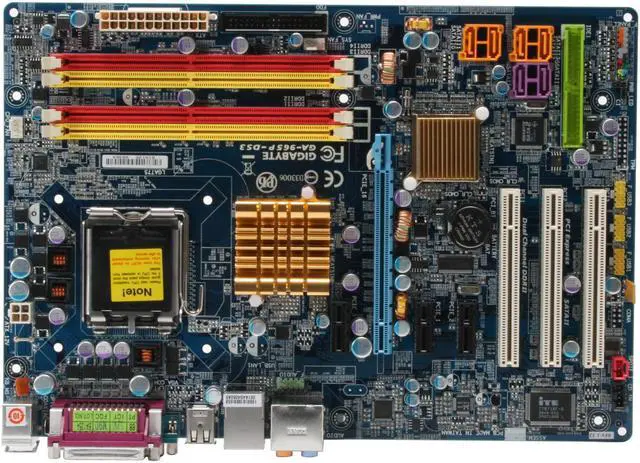

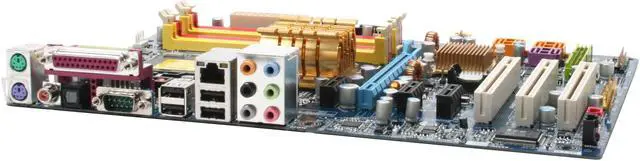

GIGABYTE GA-965P-DS3 (rev. 1.3) LGA 775 Intel P965 Express ATX Intel Motherboard - Retail

GIGABYTE GA-965P-DS3 (rev. 1.3) ATX Intel Motherboard - Retail

Image Viewer

Currently Unavailable

Manufacturer Warranty

Beyond any applicable Newegg return policy, this item is warranted independently by the product's Manufacturer. Below is a summary provided for convenience only and may not be accurate or current. Use this link for full details.

Manufacturer Limited Warranty period (parts): 1 year
Manufacturer Limited Warranty period (labor): 1 year

Manufacturer Contact Info

Return Policies

This item is covered by Newegg.com's Standard Return Policy.

Return for refund within: 30 days
Return for replacement within: 30 days
Restocking Fee: Yes

Review Summary (read all 113 Reviews)

64%

24%

Product Rating:
Total Reviews:	113

Can you say defect?

Reviewed By: Smitty on 10/8/2007

Tech Level: high - Ownership: 1 month to 1 year

Pros: Cheap for the features

Cons: Oh yea, it doesnt POST well

Other Thoughts: I had the same problem. 1/3 of the time, it wouldnt POST, then turn itself off. Sent it in to N/E with the VC to make sure it wasnt one or the other, they said they didnt carry this part anymore and had to refund my money. Called them to jsut send each out, and got no reason why they couldnt just send me one. Ended up with xx$ voucher for my trouble

0 out of 1 people found this review helpful. Did you? Yes

Reviewed By: Quest247 on 9/21/2007

Tech Level: average - Ownership: 1 day to 1 week

This user purchased this item from Newegg

Pros: Awesome price, Nice looking board, Windows based overclocking and temp monitoring program.

Cons: The CPU Fan doesn't work properly. It runs intermittently. I have used the System Fan Plug instead of the CPU and it works fine. Also the mobo will intermittently shut down 3 to 5 seconds after turning it on and power back up 3 to 5 seconds later. I have used a different power supply and made sure everything was pluged in proper with the same results.

2 out of 2 people found this review helpful. Did you? Yes

965P Chipset starting to show its age

Reviewed By: theMASS on 9/16/2007

Tech Level: high - Ownership: 1 month to 1 year

This user purchased this item from Newegg

Pros: Good budget board. Runs well up to 1600MHz FSB. Solid Capacitors.

Cons: No firewire. Many times while restarting the board will not post and needs to be unplugged for 15 mins. before it will boot! I broke a few when installing/uninstalling after market coolers. I'll take the blame for that but have never broken a motherboard before or after and I've built nearly 100 PC's.

Other Thoughts: I would recommend a P35 based board if buying today. I have several Gigabyte P35 and G33 based boards and they are all ROCK SOLID.

1 out of 1 people found this review helpful. Did you? Yes

Model
Brand	GIGABYTE
Model	GA-965P-DS3 (rev. 1.3)
Supported CPU
CPU Socket Type	LGA 775
CPU Type	Core 2 Quad / Core 2 Duo / Pentium D / Celeron
FSB	1333/1066MHz
Chipsets
North Bridge	Intel P965 Express
South Bridge	Intel ICH8
Memory
Number of Memory Slots	4×240pin
Memory Standard	DDR2 800
Maximum Memory Supported	8GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express x16	1
PCI Express x1	3
PCI Slots	3
Storage Devices
PATA	1 x ATA100 2 Dev. Max
SATA 3Gb/s	6
SATA RAID	0/1/JBOD
Onboard Video
Onboard Video Chipset	None
Onboard Audio
Audio Chipset	Realtek ALC883
Audio Channels	8 Channels
Onboard LAN
LAN Chipset	Marvell 88E8053
Max LAN Speed	10/100/1000Mbps
Rear Panel Ports
PS/2	2
COM	1
USB 1.1/2.0	4 x USB 2.0
Audio Ports	6 Ports
Onboard USB
Onboard USB	6 x USB 2.0
Physical Spec
Form Factor	ATX
Dimensions	12.0" x 9.6"
Power Pin	24 Pin
Features
Features	Notice: Only DDR2-800 memory supporting JEDEC approved 1.8V operation with timings of 5-5-5 or 6-6-6 is supported on Intel Desktop Boards based on Intel 965 Express Chipsets.
Packaging
Package Contents	GA-965P-DS3 (rev. 1.3) Driver Disk User Manual Software Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable 4 x SATA Cable
Manufacturer Warranty
Parts	1 year limited
Labor	1 year limited
