Deactivated Item
-
-
-
Manufacturer Contact Info
Return Policies
This item is covered by Newegg.com's Standard Return Policy.
- Return for refund within: 30 days
- Return for replacement within: 30 days
- Restocking Fee: Yes
|
-
- 5
-
- 55%
- 4
-
- 24%
- 3
-
- 10%
- 2
-
- 10%
- 1
-
- 1%
| Product Rating: |

|
| Total Reviews: |
145 |
- Pros: Fast and reliable. Great value.
- Cons: Layout is somewhat counter-intuitive, but manageable. Bulky mounting bracket for the CPU. Still, it's worth the buy.
Great
- Pros: Made a very nice budget gamer with this as a base. Athlon 64 4000+ retail, 2Gb of Adata ram, Biostar 8600 GTS, 160Gb Excelstor SataII, In-Win case. Initially going to just build a backup because I gave away my old spare, but these prices were too good to pass up. Newegg is THEE source.
- Cons: None
- Other Thoughts: The lack of dual core doesn't bother me. It plays Crysis at 40 FPS 1024x768, medium.
BAD IDE SLOT
- Pros: according to the tech guy hired to diagnose my mystery "Now loading windows.... System Reboot" or "System_initialization_error3" problem, he says that the board looks and performs great... once you get it booted... (Which someday I really hope to see this board in action.) however, see cons
- Cons: Since I don't have a SATA CD/DVD and HDD, I can't boot or use the CD/DVD or HDD! The original and a NewEgg exchanged second version of this board BOTH have/had bad IDE slot... Therefore, I'm out $90 in tech fees, sending the MoBo to BioStar, and can't use my nifty computer for awhile longer. (~goes through net-gaming withdrawal~!)
- Other Thoughts: This MoBo, Windows XP Home, Athlon 64x2 6400 black, 2 gig ocz platinum series ram, 120G Seagate Barracuda HDD (last year's upgrade), artic cool heat sink and main case fan, secondary neon fans in case, 600W power supply, Unknown CD/DVD rom came from friend's spare parts. Plans to get stand-alone Video next quarter bonus, if I can get the mobo to work! Upgraded from Pentium 4 1.6 GH, Soyo MoBo, 512 ram, radeon 5600 (upgrade 2 yrs ago).
| Model |
| Brand |
BIOSTAR |
| Model |

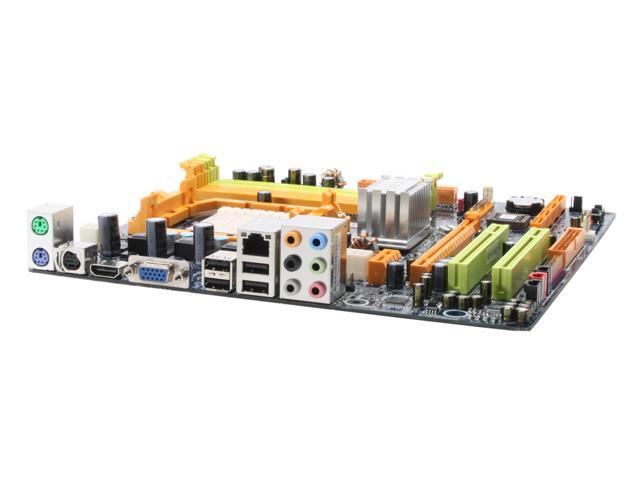

TForce TF7050-M2 |
| Supported CPU |
| CPU Socket Type |
AM2 |
| CPU Type |
Athlon 64 X2 / Athlon FX / Athlon 64 / Sempron |
| FSB |
1000MHz Hyper Transport (2000 MT/s) |
| Chipsets |
| North Bridge |
NVIDIA GeForce 7050PV |
| South Bridge |
NVIDIA nForce 630a |
| Memory |
| Number of Memory Slots |
4×240pin |
| Memory Standard |
DDR2 800 |
| Maximum Memory Supported |
8GB |
| Channel Supported |
Dual Channel |
| Expansion Slots |
| PCI Express x16 |
1 |
| PCI Express x1 |
1 |
| PCI Slots |
2 |
| Storage Devices |
| PATA |
1 x ATA100 2 Dev. Max |
| SATA 3Gb/s |
4 |
| SATA RAID |
0/1/0+1/5 |
| Onboard Video |
| Onboard Video Chipset |
NVIDIA GeForce 7050PV |
| Onboard Audio |
| Audio Chipset |
Realtek ALC888 |
| Audio Channels |
8 Channels |
| Onboard LAN |
| LAN Chipset |
Realtek 8111B |
| Max LAN Speed |
10/100/1000Mbps |
| Rear Panel Ports |
| PS/2 |
2 |
| Video Ports |
D-Sub |
| S-Video |
1 |
| HDMI |
1 x HDMI |
| USB 1.1/2.0 |
4 x USB 2.0 |
| Audio Ports |
6 Ports |
| Onboard USB |
| Onboard USB |
3 x USB 2.0 connectors support 6 ports |
| Physical Spec |
| Form Factor |
Micro ATX |
| Dimensions |
9.6" x 9.6" |
| Power Pin |
24 Pin |
| Packaging |
| Package Contents |
TForce TF7050-M2
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
Detachable DVI Connecter |
|
|
Reviewed By: on 4/15/2008
Tech Level: somewhat high - Ownership: 1 week to 1 month
