Item#:N82E16813188007

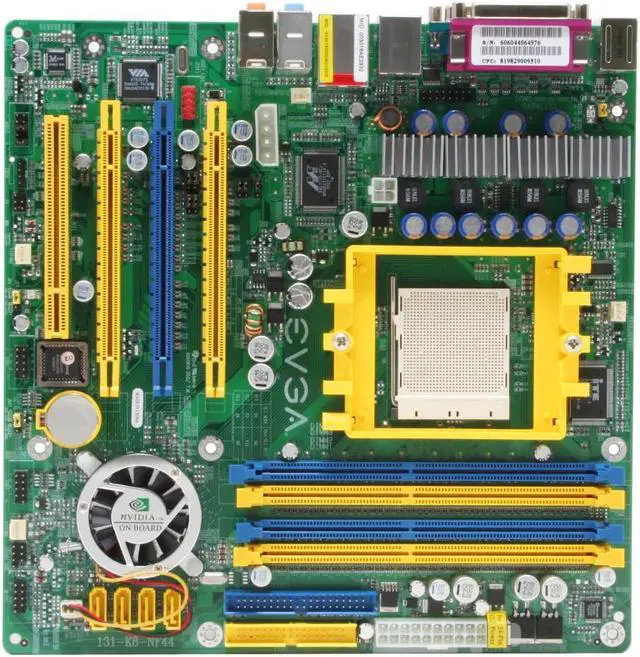

EVGA 131-K8-NF44-AX 939 NVIDIA nForce4 SLI Micro ATX AMD Motherboard - Retail

EVGA 131-K8-NF44-AX Micro ATX AMD Motherboard - Retail

Image Viewer

Deactivated Item

Manufacturer Contact Info

Return Policies

This item is covered by Newegg.com's Standard Return Policy.

Return for refund within: 30 days
Return for replacement within: 30 days
Restocking Fee: Yes

Review Summary (read all 78 Reviews)

65%

17%

Product Rating:
Total Reviews:	78

Perfect SFF mobo

Reviewed By: Hyphven on 3/9/2007

Tech Level: high - Ownership: 1 month to 1 year

This user purchased this item from Newegg

Pros: Simply the best 939 mirco atx mobo. Works great. I haven't any problems yet even with overclocking.

Cons: None

1 out of 1 people found this review helpful. Did you? Yes

long term review

Reviewed By: pharoah on 3/8/2007

Tech Level: high - Ownership: 1 month to 1 year

Pros: i have had this board running for nearly a year now with an opteron 165 oc'd to 2430.i was one of the first to get it when these first came out.this little board has had flawless operation the entire time.

Cons: could use a few more bios options,but i really havent had a problem.

Other Thoughts: the boards overclocking ability is limited by the vcore it just wont change.i cant really complain though i did hold the 3dmark05 record for awhile on 7600 gs cards with this board.

1 out of 1 people found this review helpful. Did you? Yes

DOA

Reviewed By: BellyBear on 3/8/2007

Tech Level: high - Ownership: less than 1 day

This user purchased this item from Newegg

Pros: Great Sprecs, but .....

Cons: Arrive DOA. Motherboard LED comes on when power supplu is turned on, but no power-up when power button was pressed. Tried CPU, RAM, and everthing else in another board, no problem.

Too bad, I was excited about this one. Hopefully more stock comes soon.

1 out of 1 people found this review helpful. Did you? Yes

Model
Brand	EVGA
Model	131-K8-NF44-AX
Supported CPU
CPU Socket Type	939
CPU Type	Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB	1000MHz Hyper Transport (2000 MT/s)
Chipsets
North Bridge	NVIDIA nForce4 SLI
Memory
Number of Memory Slots	4×184pin
Memory Standard	DDR 400
Maximum Memory Supported	4GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express x16	SLI: 2 x PCI-Express x16 slots (x8 effective bandwidth in each slot) Single card: 1 x PCI-Express x16 slot
PCI Slots	1
Storage Devices
PATA	1 x ATA100 2 Dev. Max
SATA 3Gb/s	4
SATA RAID	0/1/0+1
Onboard Video
Onboard Video Chipset	None
Onboard Audio
Audio Chipset	AC97 Codec
Audio Channels	8 Channels
Onboard LAN
Max LAN Speed	10/100/1000Mbps

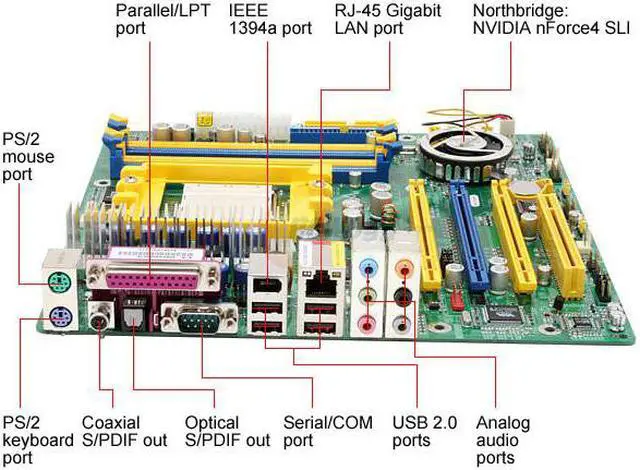

Rear Panel Ports
PS/2	2
COM	1
LPT	1
USB 1.1/2.0	4 x USB 2.0
IEEE 1394	1 x IEEE 1394a
S/PDIF Out	1 x Optical, 1 x Coaxial
Audio Ports	6 Ports
Onboard USB
Onboard USB	4 x USB 2.0
Physical Spec
Form Factor	Micro ATX
Dimensions	9.6" x 9.6"
Power Pin	24 Pin
Packaging

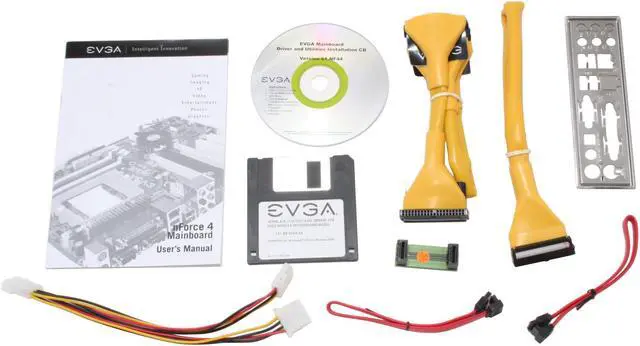

Package Contents	131-K8-NF44-AX User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable 2 x SATA Cable Power Cable SLI Bridge Floppy Drive Diskette
