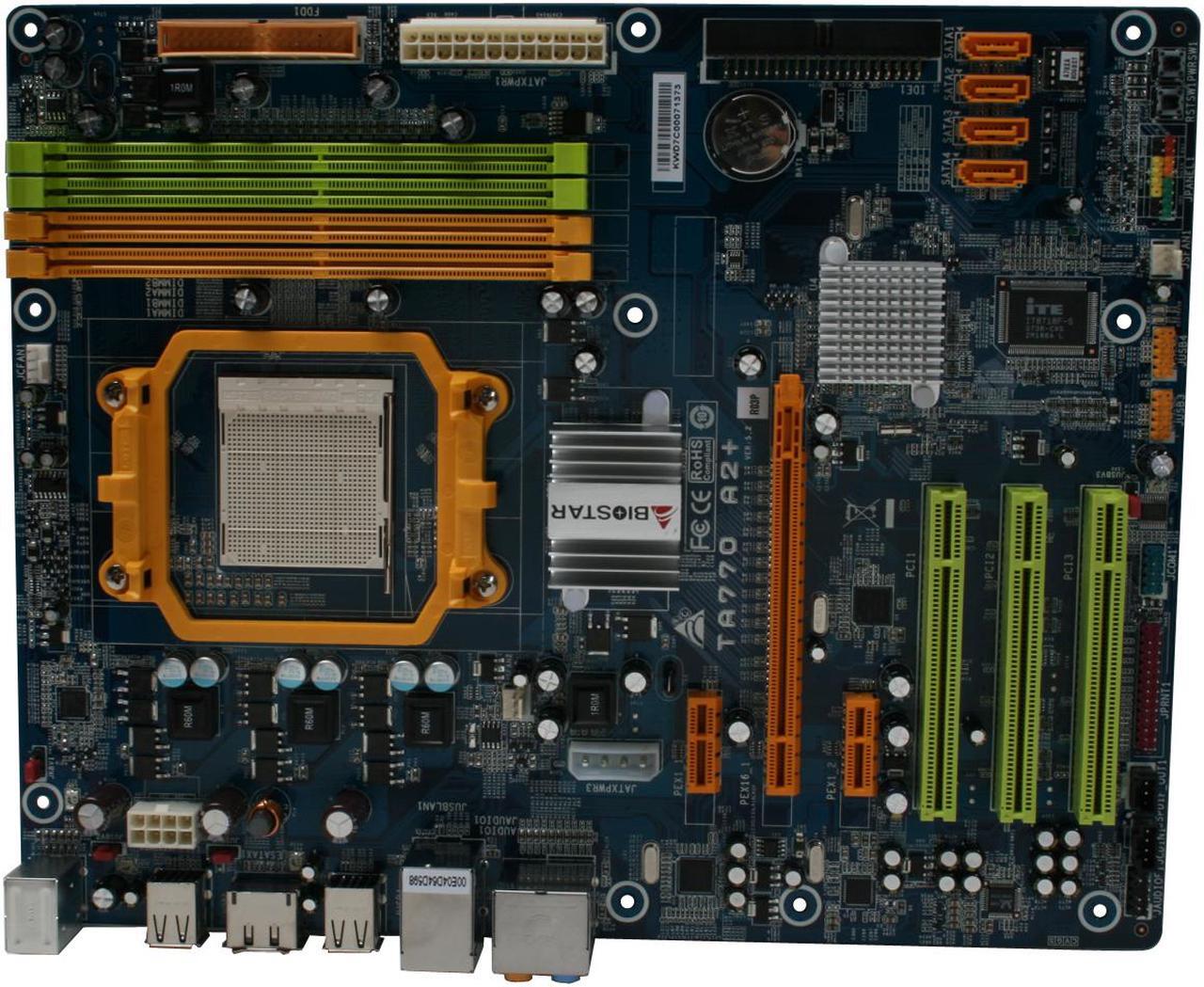

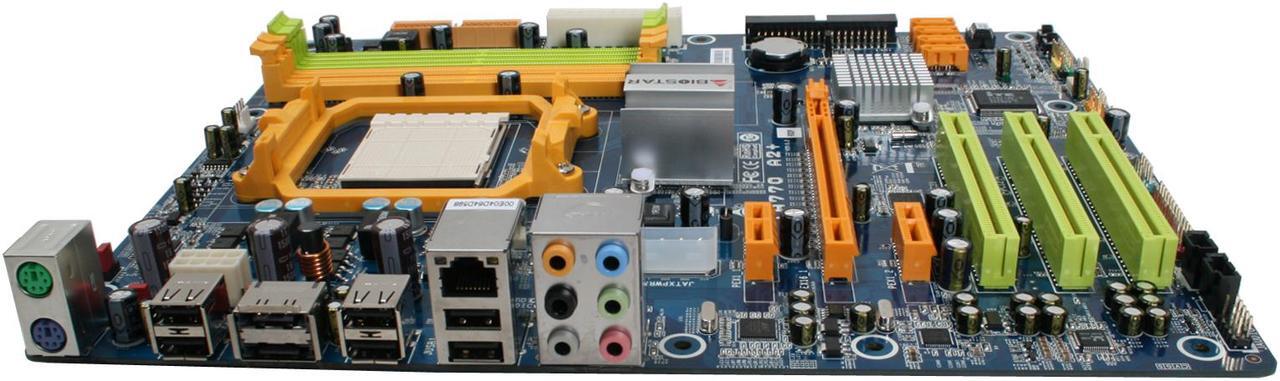

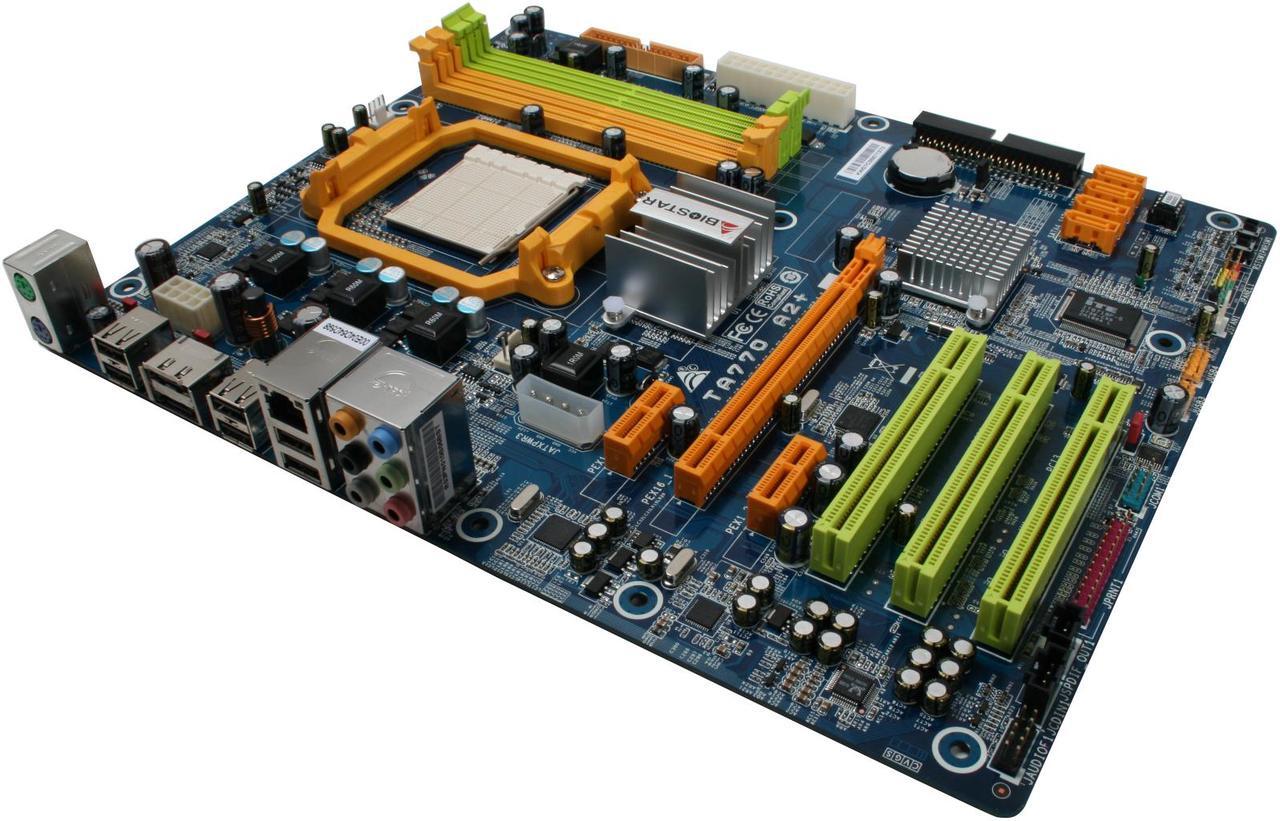

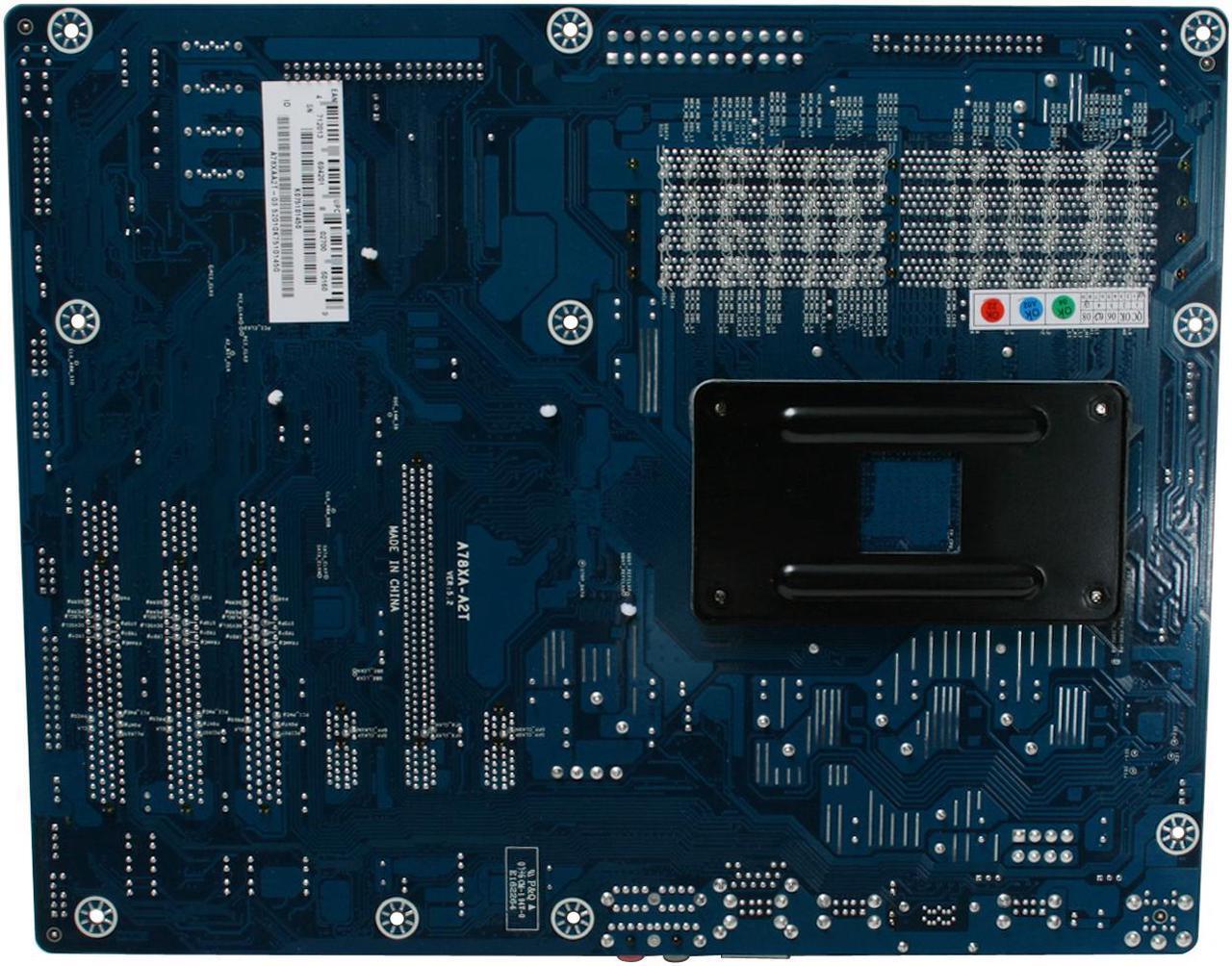

BIOSTAR TA770 A2+ AM2+/AM2 AMD 770 ATX AMD Motherboard

(222) Write a Review
  • AMD 770
  • Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (222)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Biostar TA770 A2+

Model
Brand BIOSTAR
Model TA770 A2+
Supported CPU
CPU Socket Type AM2+/AM2
CPU Type Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
Chipsets
Chipset AMD 770
South Bridge AMD SB600
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8056
Max LAN Speed 1Gbps
Rear Panel Ports
PS/2 2
USB 1.1/2.0 6 x USB 2.0
eSATA 2 x eSATA 3Gb/s
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

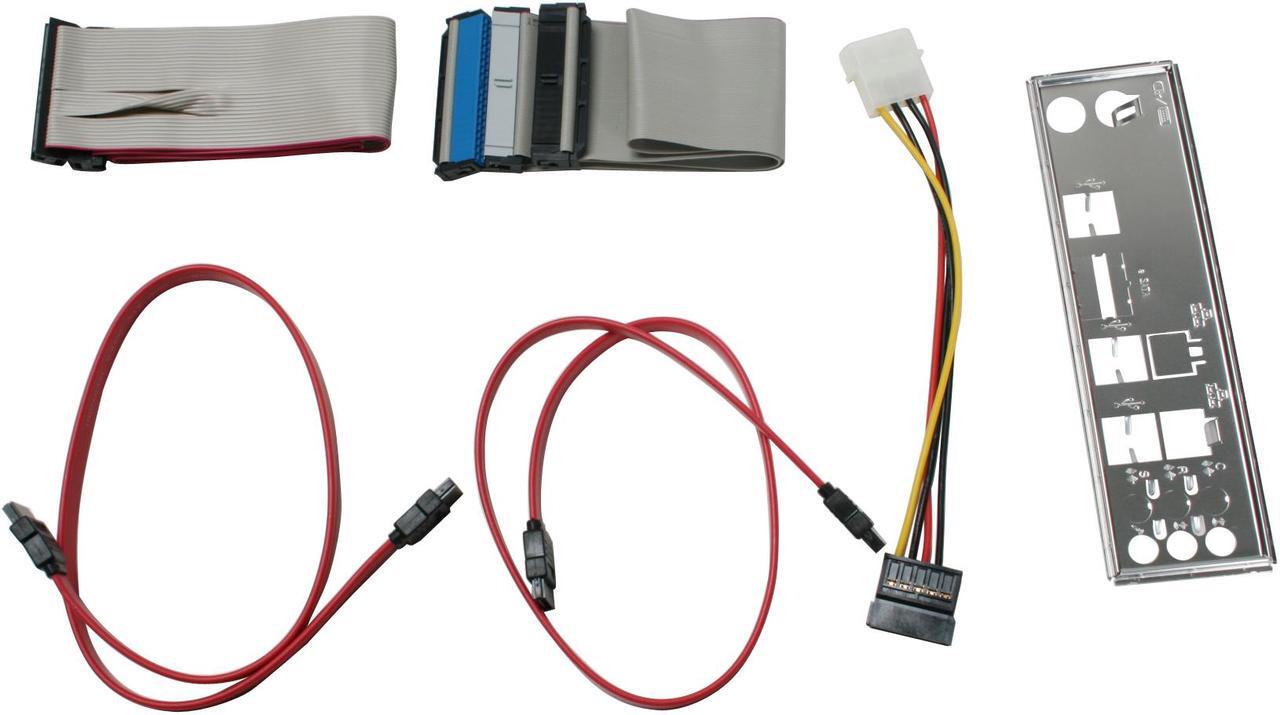

Package Contents TA770 A2+
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
2 x SATA Cable
4-pin to SATA Power Cable
Additional Information
First Listed on Newegg January 07, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
