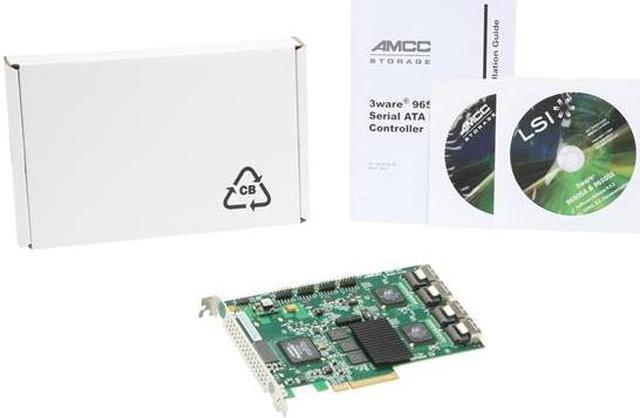

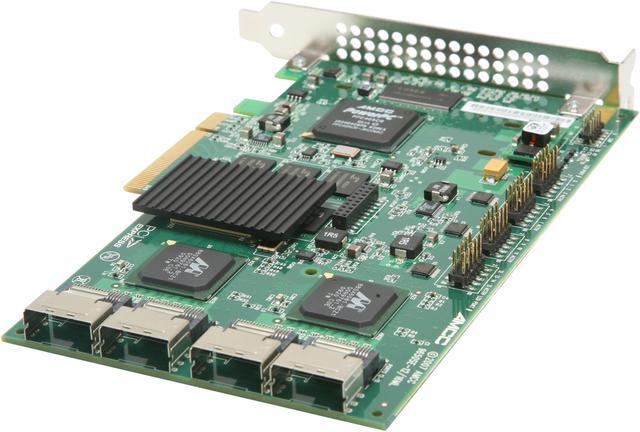

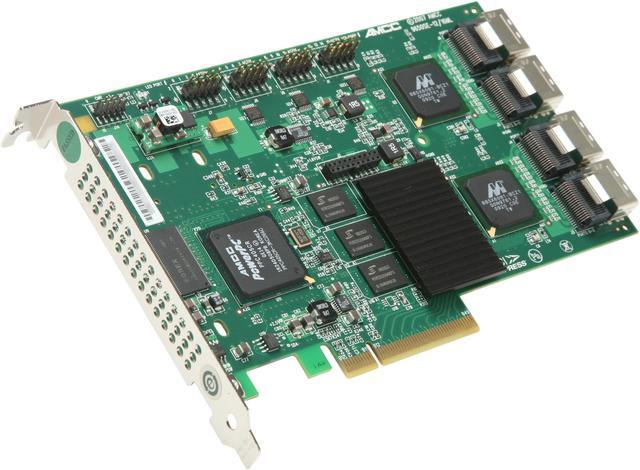

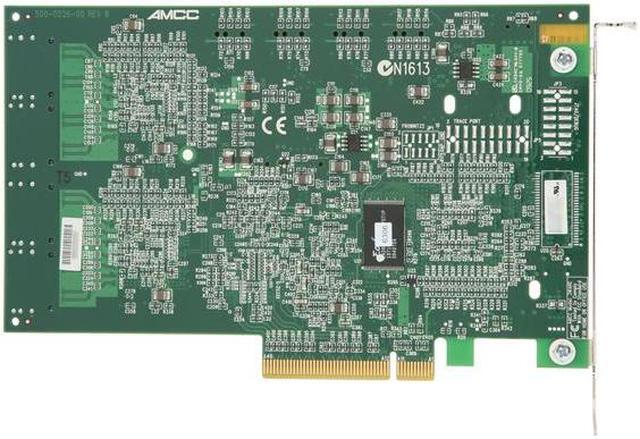

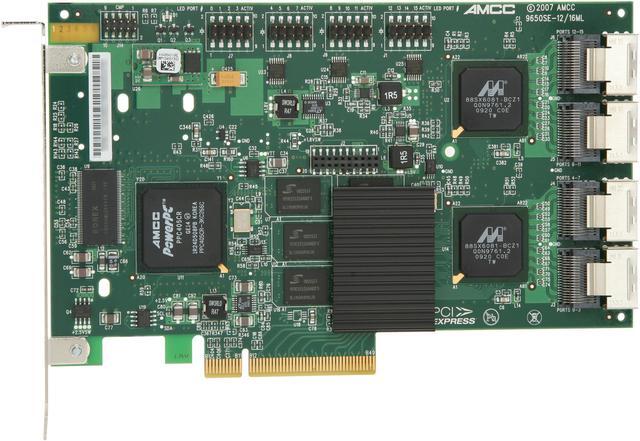

3ware 9650SE-16ML SGL PCI-Express x8 SATA II (3.0Gb/s) Controller Card - OEM

(3) Write a Review
  • RAID 0,1,5,6,10,50,Single Disk,JBOD
  • 4 x Multi-lane Internal Connectors
Specs
Reviews (3)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the 3ware 9650SE-16ML SGL

Model
Brand 3ware
Model 9650SE-16ML SGL
Details
Type SATA II (3.0Gb/s)
Internal Connectors 4 x Multi-lane
Interface PCI-Express x8
Cache Memory 256 MB DDR2 533
RAID RAID 0,1,5,6,10,50,Single Disk,JBOD
Operating Systems Supported Microsoft Windows 2003/XP/2000, Red Hat Linux, SuSE Linux, Fedora Linux, 2.4 Linux kernel, 2.6 Linux kernel, FreeBSD; 32/64-bit driver support for Windows, Linux and FreeBSD
Features
Features Form Factor : Full Height
Port Count: 16
Connector Type: Multi-lane
BBU Support: Yes

8th-generation StorSwitch non-blocking switched architecture.
On-board I/O RISC processor and RAID offload provides true hardware RAID.
Bootable array support for greater fault tolerance.
Variable stripe size for performance tuning by application.
64-bit LBA support.
ATA pass-through mode support.
32 pooled DMA channels.
Complete configuration management suite.
SNMP support.
SMTP support for email/pager notification.
ATA/6 and Out of band (OOB) staggered drive spin-up support.
Auto carving allows LUNs > 2TB to be divided into multiple units for legacy operating systems limited to 2TB max. per LUN.
Battery Backup Unit (BBU) support.
Multiple logical unit sizes and RAID levels on one card.
Multiple card support within a system for large storage requirements.
Hot-swap and hot-spare support for data availability.
Dynamic sector repair for robust data protection.
S.M.A.R.T. disk drive monitoring for reliability.
Emergency Flash Recovery protects against failed firmware upgrade.
Drive activity LED support.
Online Capacity Expansion and RAID Level Migration.
Enhanced data protection with write journaling for non-redundant arrays and accidental drive removal.
Drive insertion and removal notification.
Array/Drive Status and drive identification LED support. (requires 3ware Chassis Control Unit-enabled backplane)
Chassis Control Unit for enclosure management via I2C.
Additional Information
Date First Available December 12, 2006
