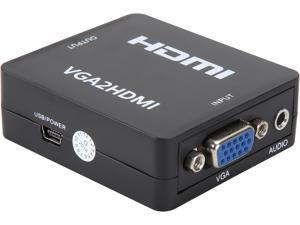

Specifications: The product VGA to HDMI converter is used to convert an analog VGA signal to a digital HDMI signal . It can be used with computers and other devices with a VGA output interface, and connects to an HDTV, projector,or other display with an HDMI input.The converter supports a wide range of input resolutions and is easy to set up for convenience and compatibility.
Specifications: This kind of the Converter is a VGA video converter. It converts VGA input into HDMI to allow PC users to show their image not only on the PC’s monitor, but could also on TV, to have a large display. The conversion is along with the audio. VGA + Audio to HDMI Converter offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns,data center control, information distribution, conference room presentation, school and corporate training environments.
Specifications: Composite Video Input : BNC
Video Inputs: 1 x Composite BNC Video, 1 x S-Video And 1 x VGA
Video Output: 1 x VGA
Optional Resolution: 800 x 600/60HZ, 800 x 600/75HZ, 1024 x 768/60HZ, 1280 x 720/60HZ, 1440 x 900/60HZ, 1600 x 900/60HZ, and 1680 x 1050/60HZ
Dimension: 3.9" x 2.4" x 1"
Specifications: This adaptor has the ability to deliver high-definition digital audio and video to the display in packet data format - allowing selective screen area updates and provides power saving features required for notebook applications. One single cable for AV applications thus reduces cost on both the Pc side as well as display side. With the ease of the plug-and-play feature, it is user-friendly for the consumer.
Specifications: Input 1 HDMI 19-pin female
Output 1 VGA hd15-pin , 1x R/L RCA audio Connector
Video Amplifier Bandwidth 60Hz/ 1.65Gbps
Supports up to UXGA (1600X1200@60) & UXGA (1920X1200@60) PC GRAPHICS OUTPUT
Power Supply 5V DC
Supports Analogue Video output up to UXGA and 1080p with 10-Bit DAC

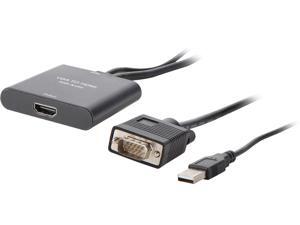

Specifications: Converts VGA Source to HDMI Display
Supports Audio Function for HDMI Monitor and TV
HDMI Compliant
HDCP Compliant
LED Indicators for Power and Activity
Powered by USB Port
Plug and Play
Resolutions Supported:
800x600
1024x768
1280x720
1280x768
1280x800
1280x960
1280x1024
1360x768
1600x900
Specifications: Supports multiple input signals: Composite video, S-video and VGA
Output VGA resolution supported (For Normal or Wide screen: 800 x 600 @60Hz/75Hz, 1024 x 768 @60Hz, 1280 x 720 @60Hz, 1440 x 900@60Hz); (For Wide screen ONLY: 1280 x 720 @60Hz, 1440 x 900 @60Hz, 1600 x 900 @60Hz, 1680 x 1050 @60Hz)
Dimension: 105mm x 65mm x 27mm

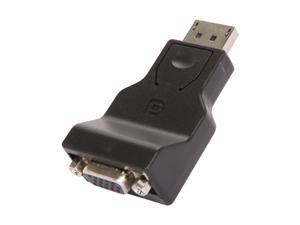

Specifications: This is a DisplayPort to VGA signal format convertor for interfacing next generation DisplayPort based PC and notebook computers with conventional VGA displays, such as CRT, LCD monitors & projectors.
Specifications: This is a DisplayPort to HDMI Cable Adapter for interfacing next generation DisplayPort based PC and notebook computers with High definition displays.
Specifications: The Mini DisplayPort to VGA Adapter lets you connect a standard analog monitor, projector, or LCD that uses a VGA connector or cable to a MacBook, MacBook Pro, or MacBook Air with a Mini DisplayPort.
Specifications: DisplayPort v1.1 Compliant
Enable high quality optional digital audio transmissions
embedded clock architecture to reduce EMI susceptibility
Support greater than QXGA (2048x1536) resolution at 24-bit color depths
Support existing VESA and CEA standards
Support hot plug and unplug detection as well as link status-failure detection
Support reduced bandwidth transmission via direct drive over a 15M cable
Supports a minimum of 1080P resolution at 24bpp, 50/60Hz at 15 M
Support conversion from DisplayPort signal to VGA signal
Support DisplayPort connector 20pins
Support 8-bit & 10-bit deep color
Support the video bandwidth up to 10.8Gbps
Support the 1Mbps' bidirectional auxiliary channel
Support the 1 lane, 1 direction, 4 lines connection
Specifications: This adaptor has the ability to deliver high-definition digital audio and video to the display in packet data format - allowing selective screen area updates and provides power saving features required for notebook applications.
One single cable for AV applications thus reduces cost on both the Pc side as well as display side.
With the ease of the plug-and-play feature, it is user-friendly for the consumer.
