RSV-Z2800U 2U Server Chassis

Server Components

Rosewill's line of server components help you build or improve your own dedicated server.

RSV-Z2800U 2U Server Chassis

RSV-Z2900U 2U Server Chassis

Spacious Chassis Design

The 2U rackmount server case is designed to allow you to install up to (6) 3.5" HDDs.

Quiet and Effective Case Fans

The server chassis comes equipped with (3) middle 80mm cooling fans pre-installed for better heat management.

Intuitive Front Panel

Server case features LED indicators for easy Power, LAN, and HDD status monitoring as well as (1) USB 3.0 and (2) USB 2.0 ports.

Highlights:

  • Can carry up to 6 HDDs
  • 3 pre-installed cooling fans
  • E-ATX compatibility
  • 7 expansion slots
  • LED status indicators for HDD, Power, and LAN
  • USB 2.0 and USB 3.0 ports

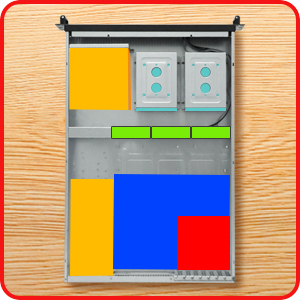

Large Capacity

The spacious design allows you to install up to (6) 3.5" HDDs, E-ATX (12" x 13") motherboard, (3) pre-installed cooling fans, and a PS2 power supply.

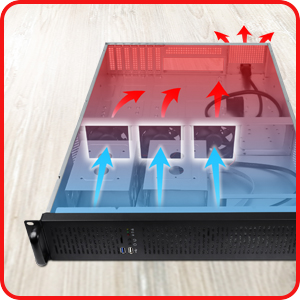

Superior Cooling

3 total pre-installed case fans keep your server chassis and hard drives cool to avoid overheating.

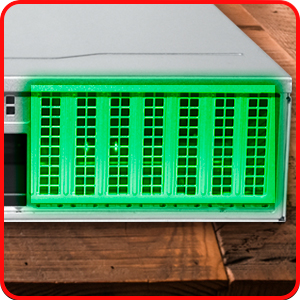

PCI Expansion Slots

Expand your server case's functionality by installing up to 7 PCI expansion cards.

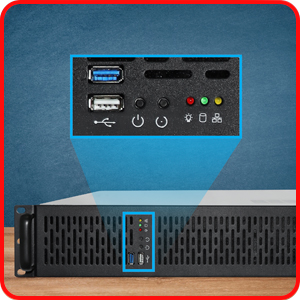

LED Indicators

Easily monitor status of Power, LAN, and HDD.

RSV-Z2800U 2U Server Chassis

Large Capacity

RSV-Z2800U 2U Server Chassis

Superior Cooling

RSV-Z2800U 2U Server Chassis

PCI Expansion Slots

RSV-Z2800U 2U Server Chassis

LED Indicators

RSV-Z2600U 2U Server Chassis

RSV-Z2600U

RSV-Z2700U 2U Server Chassis

RSV-Z2700U

RSV-Z2800U 2U Server Chassis

RSV-Z2800U

RSV-Z2850U 2U Server Chassis

RSV-Z2850U

RSV-Z2900U 2U Server Chassis

RSV-Z2900U

U-Type 2U 2U 2U 2U 2U
2.5" Drive Bays 0 0 2 2 2
3.5" Drive Bays 4 4 4 (6) 4 (6) 4 (6)
5.25" Drive Bays 0 1 0 0 0
80mm Fans 3 2 3 (2 pre-installed) 4 (2 pre-installed) 3
120mm Fans 0 0 0 0 0
Expansion Slots 4 4 4 7 7
USB 2.0 / 3.0 1 / 1 1 / 1 1 / 1 1 / 1 1 / 1
Width x Height x Depth (Chassis) 16.9” x 3.5" x 15.0" 16.9” x 3.5" x 15.0" 16.9” x 3.5” x 17.7” 16.9” x 3.5” x 21.7" 16.9” x 3.5” x 25.6”
Width x Height x Depth (Chassis + Bracket + Handle) 19.0” x 3.5” x 15.9” 19.0” x 3.5” x 16.5” 16.9” x 3.5” x 18.9” 16.9” x 3.5” x 22.6” 16.9” x 3.5” x 26.6”
Weight (lbs) 10.6 11.5 11.6 14.6 16.8
RSV-Z2800U 2U Server Chassis
