RSV-Z2800U 2U Server Chassis

Server Components

Rosewill's line of server components help you build or improve your own dedicated server.

RSV-Z2800U 2U Server Chassis

RSV-Z3100U 3U Server Chassis

Roomy with Open Layout

The 3U rackmount server case is designed to allow you to install up to (6) 3.5" HDD devices.

Quiet and Effective Cooling Fans

The server chassis comes equipped with (2) front 80mm fans for better heat management.

Intuitive Front Panel

The server case features LED indicators for easy Power, LAN, and HDD status monitoring as well as (1) USB 3.0 and (1) USB 2.0 ports.

Highlights:

  • Can carry up to 6 HDDs
  • 2 pre-installed cooling fans
  • ATX compatibility
  • 4 expansion slots
  • LED status indicators for HDD, Power, and LAN
  • USB 2.0 and USB 3.0 ports

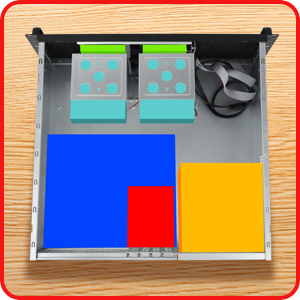

Large Capacity

The spacious design allows you to install up to (6) 3.5" HDDs, ATX motherboard, (2) 80mm cooling fans, and a PS2 power supply.

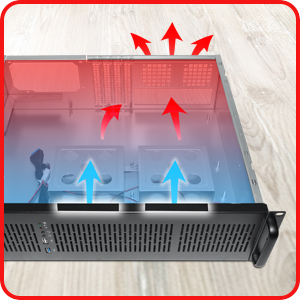

Superior Cooling

Pre-installed with 2 cooling fans to keep your server case and hard drives cool without overheating.

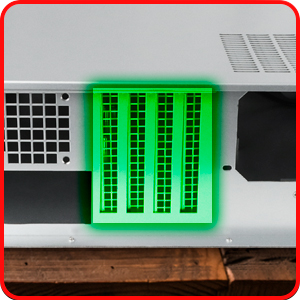

PCI Expansion Slots

Expand your server case's functionality by installing up to 4 PCI expansion cards.

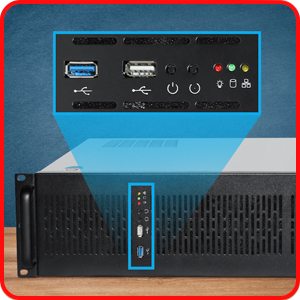

LED Indicators

Easily monitor status of Power, LAN, and HDD.

RSV-Z2800U 2U Server Chassis

Large Capacity

RSV-Z2800U 2U Server Chassis

Superior Cooling

RSV-Z2800U 2U Server Chassis

PCI Expansion Slots

RSV-Z2800U 2U Server Chassis

LED Indicators

RSV-Z2600U 2U Server Chassis

RSV-Z3100U

RSV-Z2700U 2U Server Chassis

RSV-Z3200U

U-Type 3U 3U
2.5" Drive Bays 0 0
3.5" Drive Bays 6 6
5.25" Drive Bays 0 0
80mm Fans 2 2
120mm Fans 0 0
Expansion Slots 4 4
USB 2.0 / 3.0 1 / 1 1 / 1
Width x Height x Depth (Chassis) 16.9” x 5.2” x 15.0” 16.9” x 5.2” x 17.7”
Width x Height x Depth (Chassis + Bracket + Handle) 16.9” x 5.2” x 15.9” 16.9” x 5.2” x 18.7”
Weight (lbs) 11.7 13.2
RSV-Z2800U 2U Server Chassis
