ASRock X299 CREATOR

Motherboard Built For Content Creators!

Based on Intel X299 chipset, this motherboard is oriented at HEDT (High-End Desktop) platforms and fully supports Intel Core X-series Processor in LGA 2066 packaging. On its ATX form factor you'll find eight memory slots, four PCIe x16 slots, and three Ultra M.2 slots, which meet all your needs for current powerhouse build and future upgrade. Two Intel Thunderbolt 3 ports (40Gbps) and one front USB Type-C port (10Gbps) offer blazing-fast speed expected when transferring large media contents in a rush. The latest Aquantia AQC107 10GbE port, assisted by Intel's I219-V Gigabit NIC chipset provides dual Ethernet ports at the rear making connectivity versatile and fast. Intel's AX200 802.11ax and Bluetooth 5.0 bring the latest wireless connectivity. ASRock Polychrome SYNC with onboard RGB headers let your customize and synchronize lighting across compatible peripherals. Plus, the X299 CREATOR is constructed with premium components, extra large heatsink , and superb aesthetics, making it a great choice for content creators and professional users seeking performance, quality and expandability in their new productivity tools.

Supports Intel Core X-Series Processor Family
13 Power Phase Design, Dr. MOS, Dual Power Connectors
XXL Aluminum Alloy Heatsink & Heatpipe Design
Supports DDR4 4200+(OC)
4 PCIe 3.0 x16, 1 PCIe 3.0 x1
NVIDIA 3-Way SLI, AMD 3-Way CrossFireX
10 SATA3, 2 Ultra M.2 (PCIe Gen3 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
2 Intel Thunderbolt 3 Type-C
1 Front USB 3.2 Gen2 Type-C
6 USB 3.2 Gen1 (2 Front, 4 Rear)
7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound 4 & DTS Connect
AQUANTIA 10G LAN, Intel Gigabit LAN
Intel Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0

Front view of this motherboard in standing position, with texts pointing out its slots and headers

Front left side angle view of this motherboard, with texts pointing out its rear I/O panel ports and some of the onboard connectors and components

Top view of this motherboard with texts pointing out heat sinks and some of the onboard slots and connectors

Unbeatable Heatsink Armor

Forged with aluminum alloy heatsink top cover that effectively improves heat dissipation. Underneath its solid strong cover lie three gaming required M.2 key M sockets.

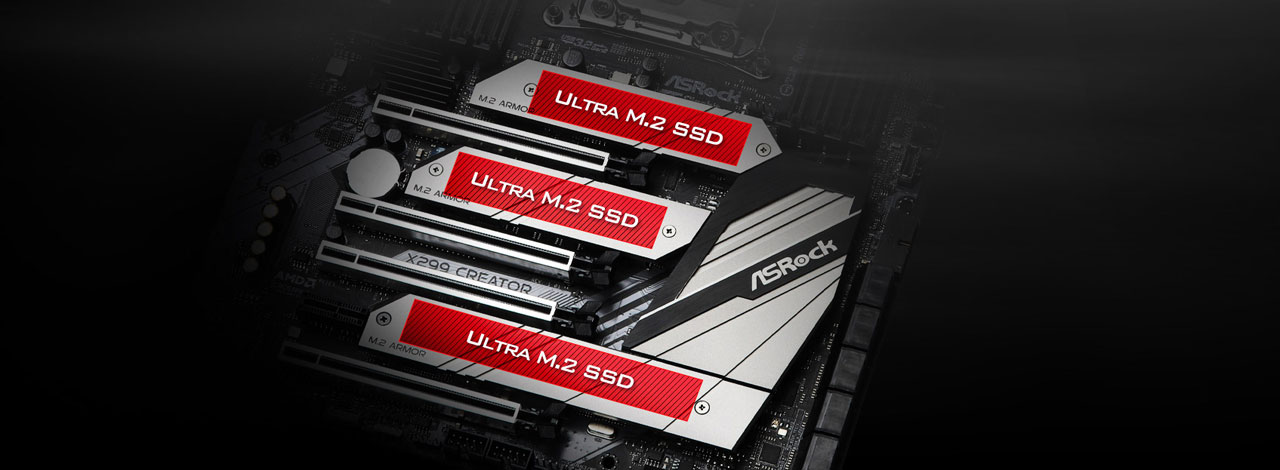

Closeup of three M.2 slots with heatsinks, with texting marking out these slots

Wi-Fi 6 802.11ax

Welcome to the new Wi-Fi standard! ASRock’s motherboard equipped with next generation Intel Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

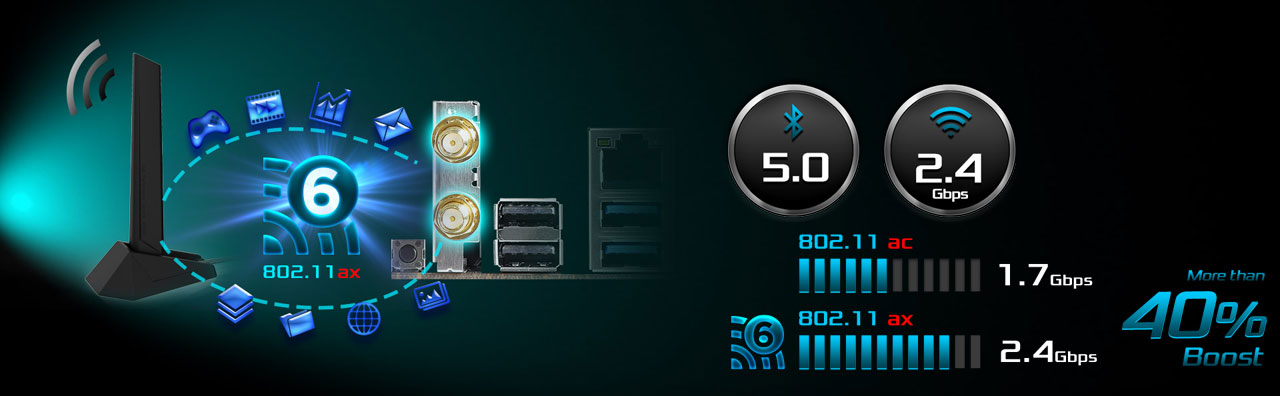

At the left is closeup of antenna and antenna ports at rear I/O panel. At right is graph and icons showing the features and speed of 802.11ax

Thunderbolt 3 Technology

The highly desirable reversible Thunderbolt 3 Type-C interface delivers breathtaking 40 Gb/s data transfer speeds and also supports USB PD charging up to 9V@3A (27W).

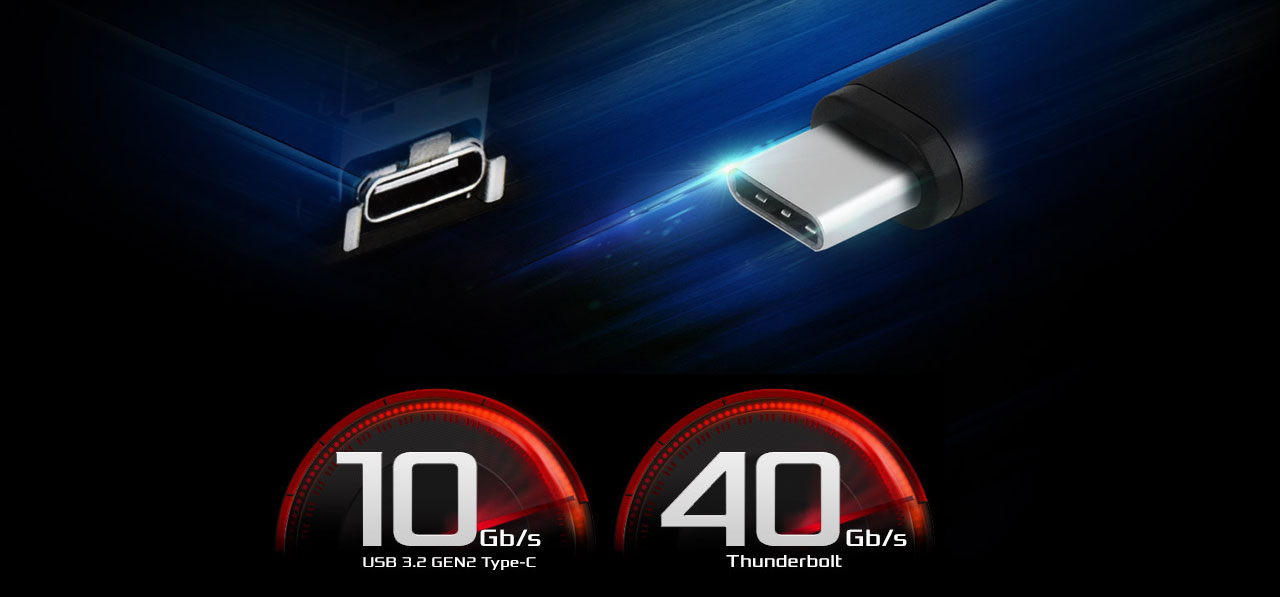

At upper part is closeup of a female and male USB-C connector. At lower part is two tachometers, one containing texts reading as 10Gb/s USB 3.2 Gen2 Type-C, and the other containing 40 Gb/s Thunderbolt

AQUANTIA 10Gb/s BASE-T Ethernet

The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIA's AQtion client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet is not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit LAN but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.

At upper part is closeup of an RJ-45 Ethernet port, with texts reading as “Aquantia 10 Gigabit Ethernet” next to it on the left. At lower part is speed comparison between 1Gb/s and 10 Gb/s

13 Power Phase Design

Designed with a 13 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

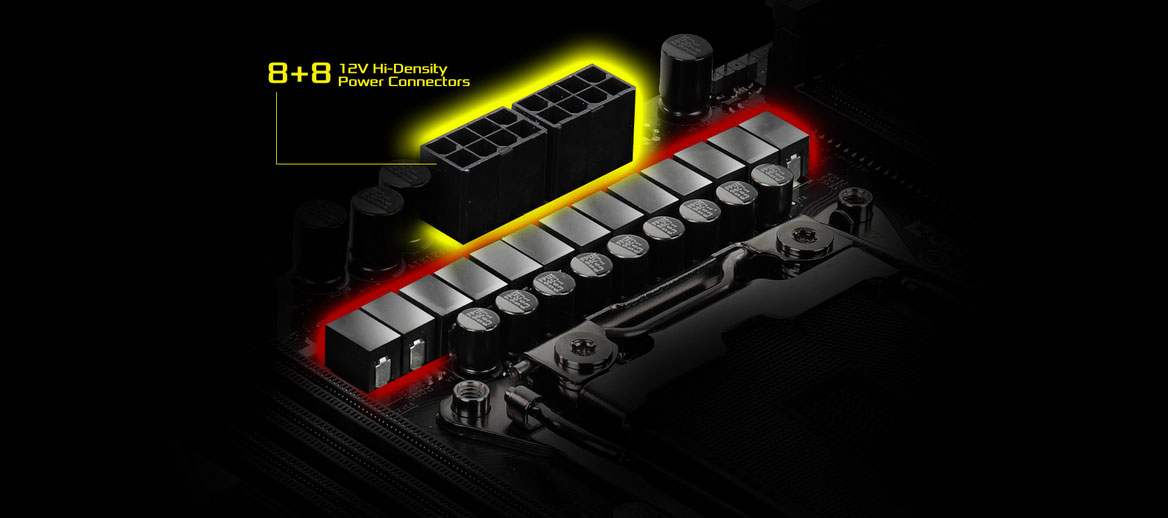

Closeup of power phase design on the motherboard, with the 8+8 power connectors highlighted and power chokes highlighted

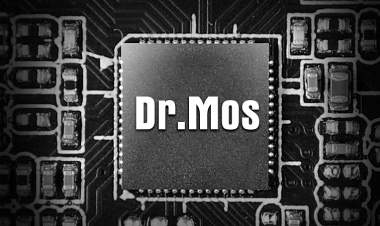

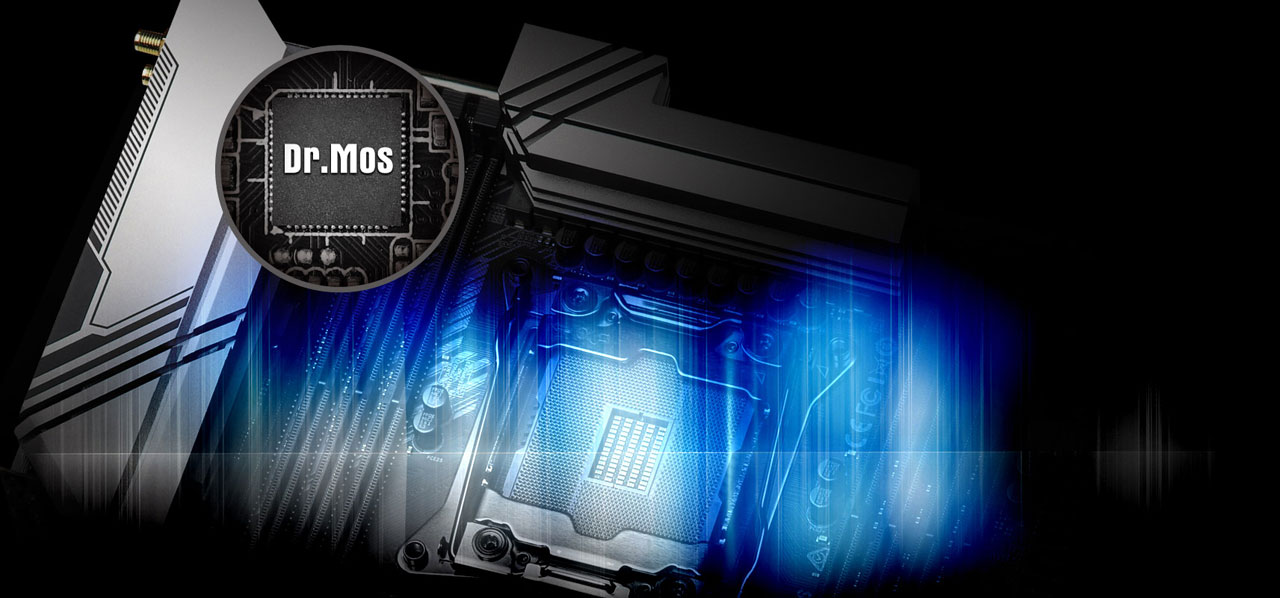

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

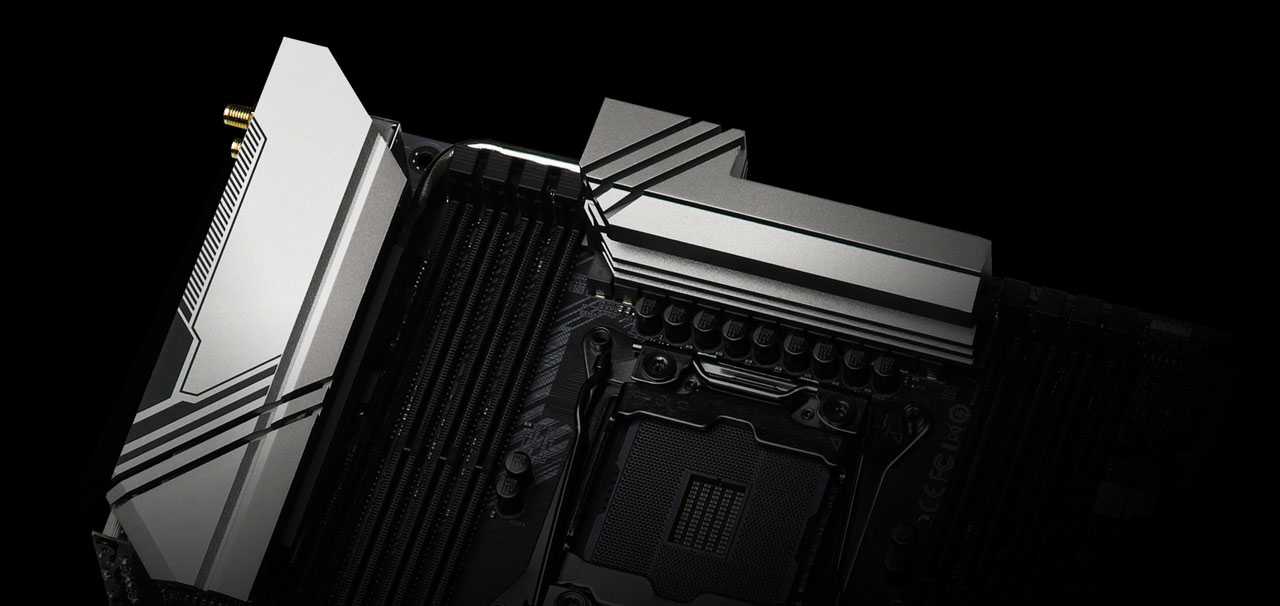

XXL Aluminum Alloy Heatsink & Heatpipe Design

Extra-large aluminum alloy heatsink along with heatpipe that effectively take away heat from the MOSFET, so that your whole system may perform more stable.

Closeup of heatsinks with heatpipes on the motherboard

8-Layer & 2 oz Copper PCB

The 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and higher energy efficiency for overclocking! Thus, it's able to support the latest DDR4 memory modules with most extreme memory performance!

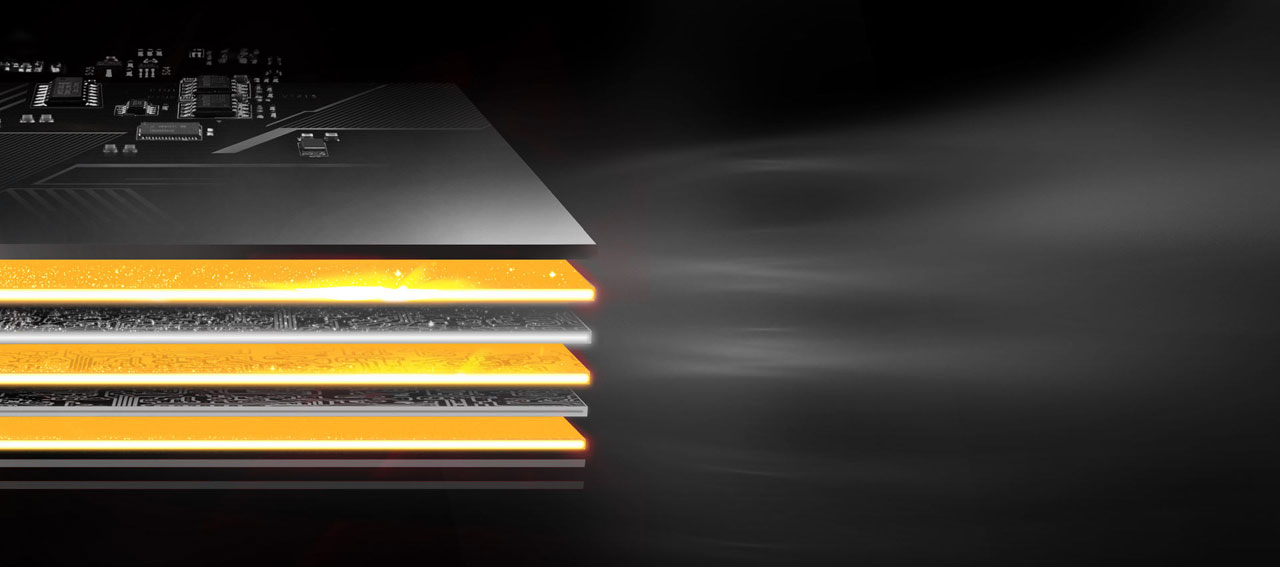

Illustration of multiple PCB layers and copper layers

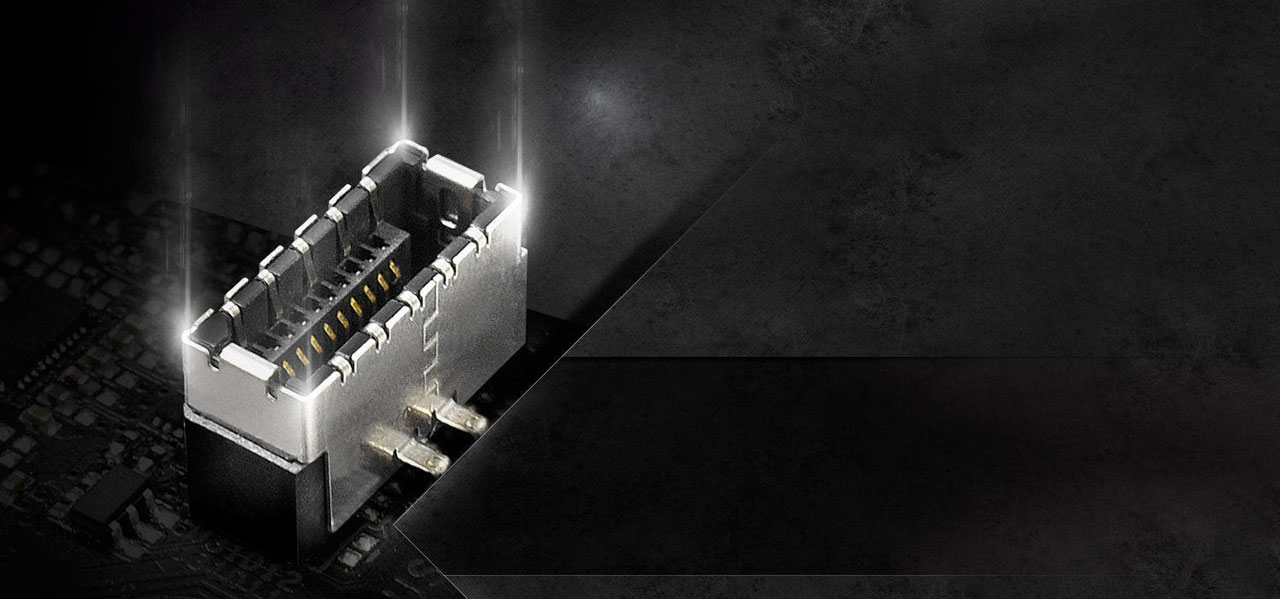

Front USB 3.2 Gen2 Type-C

Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Closeup of the motherboard connector for front USB-C

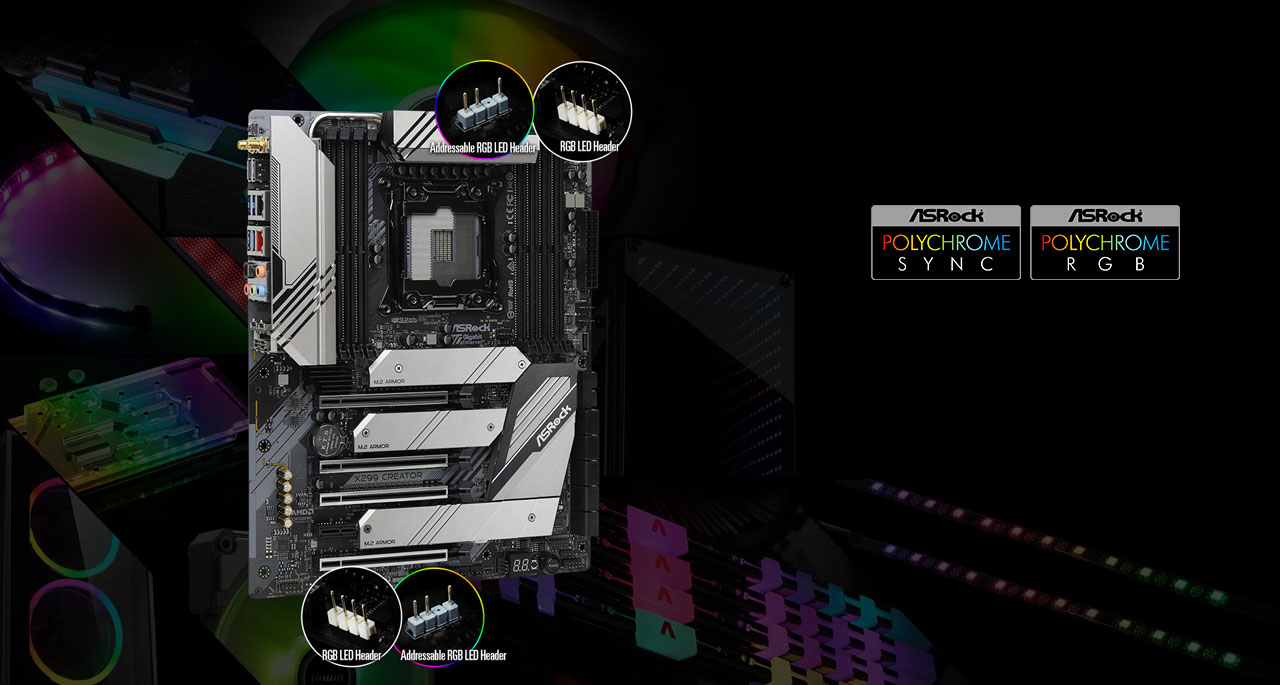

Rule Your Own Lighting Way—Polychrome RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

* The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.

* The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Stylized texts reading as “super alloy motherboard”

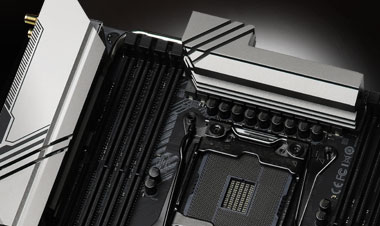

XXL Aluminum Alloy Heatsink

Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

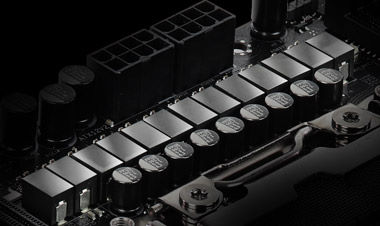

Closeup of power phases with CPU power connectors

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Dr. MOS

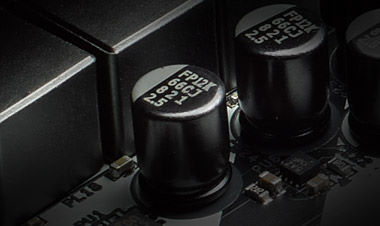

Nichicon 12K Black Caps

Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

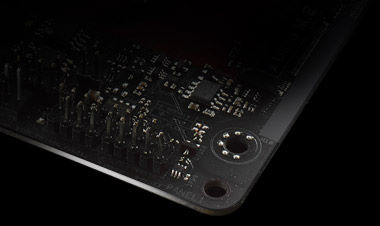

Matte Black PCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
