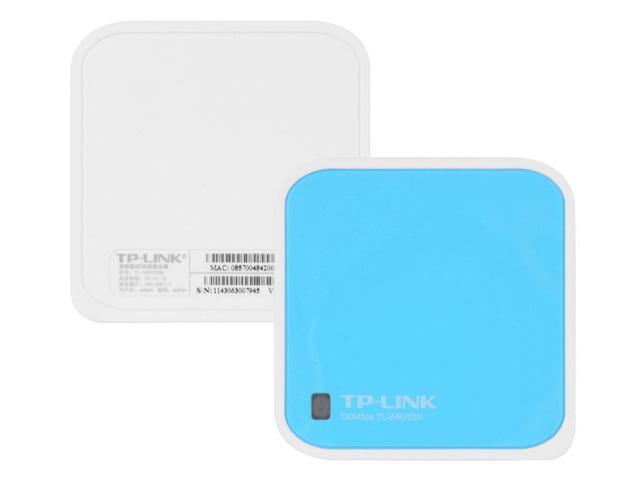

TP-LINK 150M MINI 3G Wireless Router Wifi Adapter TL-WR703N for Smartphone Tablets Notebooks

Hardware Specifications
Protocol Standard:
*IEEE 802.11n
*IEEE 802.11g, IEEE 802.11b
*IEEE 802.3, IEEE 802.3u
Transmission Rate: 150Mbps

Interface
1 x 10/100M self-adaption LAN/WAN interface, support Auto MDI/MDIX
1 x Micro USB charging interface
Key: Reset
LED: Status indication
Antennas: Built-in smart omnidirectional antennas
Size: 57mm x 57mm x 18mm(L x W x H)

Wireless Parameters
Basic Functions:
1)Wireless Switch
2)SSID Broadcast Switch
3)Channel selection: 1-13
4)Optional frequency bandwidth: 20MHz, 40MHz, AUTO
5)Optional Wireless Modes: 11n only, 11 bgn mixed, 11 bg mixed, 11g only, 11b only

Work Modes
- AP (Wireless AP)
- 3G Router
- Wireless Router

Wireless Security
* The wireless MAC address filtering
* The wireless security function switch
* 64/128/152 WEP encryption
* WPA-PSK/WPA2-PSK, WPA/WPA2

Wired Functions
Practical Function
* IP Bandwidth control function(not support under Wireless AP mode)
* PeanutHull DDNS (not supported under AP mode)

Network Settings(support under Wireless Router mode)
* WAN support: PPPoE, Dynamic IP, static IP
* Dial-up Type: Automatic dialing, on-demand dialing, manual dialing, timing function
* MAC address modification and cloning
* VPN Pass-through
* Static routing

DHCP Settings(not support under Wireless AP mode)
* DHCP server
* Client list
* Static address allocation

Port Forwarding(not support under Wireless AP mode)
* Virtual server
* Special application
* DMZ host
* UpnP

Security Setting(not support under Wireless AP mode)
* The IP and MAC address binding for ARP attack prevention
* IP address filtering
* Domain filtering
* MAC address filtering

System Tools
* Traffic statistics
* System log
* Remote Web management
* The configuration file import and export
* WEB software upgrade

Operating Environment
* Work Temperature: 0? to 40?
* Storage Temperature: -40? to 70?
* Work Humidity: 10% to 90%RH No condensation
* Storage Humidity: 5% to 90%RH No condensation

What is in the box
1 x TL-WR703N
1 x Power Adaptor
1 x USB cable
1 x User Manual
1 x Warranty Card
