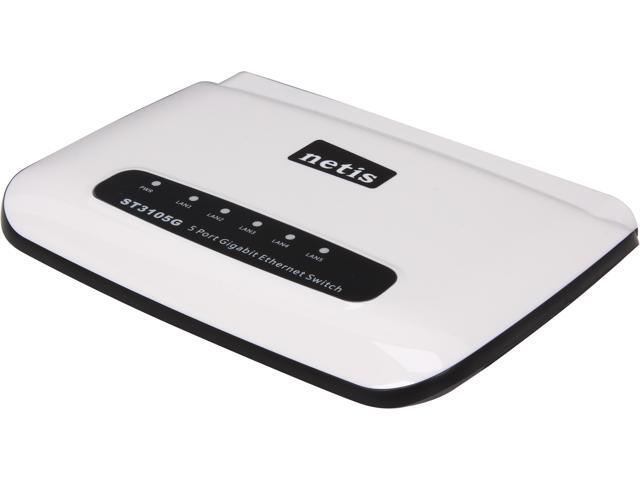

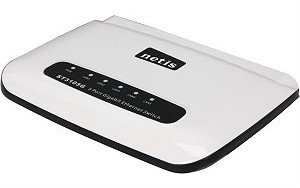

The Netis ST3105G Gigabit Ethernet Switch provides five 10/100/1000Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Together with the plug-and-play & Green Power feature, it may provide you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 1000Mbps network.
| Hardware | |
|---|---|
| Interface | 5 x 10/100/1000M RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
| LED | PWR, 1-5 Link/Activity |
| Power Supply | DC 9V/500mA (Output) |
| Dimensions (L x W x H) | 7.2 x 4.9 x 1.2 inches (183 x 125 x 31mm) |
| Switching Features | |
| Standard | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x Flow Control |
| Access Method | CSMA/CD |
| Transmission Method | Store and Forward |
| Switch Architecture | Non-blocking 20/200Mbps (Full-duplex) |
| Data Transmission Rate | 10/100/1000Mbps (Half-duplex) |
| MAC Address Table | 2K |
| Jumbo Frame | 9KB |
| Others | |
| Certification | FCC, CE, BSMI |
| Environment | Operating Temperature: 32 - 104°F (0 - 40°C) Storage Temperature: -4 - 158°F (-20 - 70°C) Operating Humidity: 5% - 90% non-condensing Storage Humidity: 5% - 90% non-condensing |
Pros:
Plugged into network without any other setup needed.
Has Screw Holes on bottom for attaching to the wall.
Cons: The indicator lights all bleed into each other making it difficult to distinguish which one exactly is blinking, but for people that plan to just plug it in and forget about it like me, that isn't a huge issue.
Pros: I read the reviews on line about the light bleeding over into ports and not being able to tell what speed in was running at. I was just looking for a fast cheap gigabit switch and this fit the bill nicely.
Cons: none
Pros: Inexpensive, gigabit.
Cons: No bells or whistles.
Other Thoughts: Great for what it is. Speeds are to be the same as when plugged directly to router. I could not find a gigabit switch for a lower price. It performs exactly as I had hope. I haven't touched it since I got it. If you want indicator lights or need a sturdier case pay a few more bucks for something better.
Pros: -Pnp, easy setup
Cons:
- doesn't work with my VOIP Router (Cisco SPC-2012). No signals received
- lights bleed across ports.
- no indication whether 10, 100, 1000 on the lights
Other Thoughts: Make sure this will work in your topology first. I learned the hard way as my VOIP Router (see Cons above) failed to receive the signal. I'm no longer using this switch because of that and won't return it as it return shipping is my purchase cost. So, in it's box it sits......
Pros: Works
Cons: Lights do not provide any indication of what port has activity
Other Thoughts: Okay for the cost only.
Pros: Plug&play, no hassles, runs at full bandwidth, runs cool, a steal at $10 and still a good buy at $15: what more could one reasonably ask for?
Cons: Well, a lifetime guarantee, I guess - and after I bought this Newegg had another for a couple of dollars more which had such a guarantee. But I'm still not complaining: this one works just fine and as long as electronics don't get too hot or handled too roughly they often last virtually forever.
Pros: Perfect plug &play 5 port switch.... no probes in 2 months use... great value for $10
Cons: None
Loading...
Newegg’s website and online services use cookies and similar technology for a number of reasons: Some technologies allow the site to function. These functional cookies are required to use the site and complete purchases. Another set of technologies improve the browsing experience and personalize it. Here are all the details about Newegg’s Cookie and Privacy Policies. Please select and accept your settings before you continue. Thank you.
Newegg’s website and online services use cookies and similar technology for a number of reasons: Some technologies allow the site to function. These functional cookies are required to use the site and complete purchases. Another set of technologies improve the browsing experience and personalize it. Here are all the details about Newegg’s Cookie and Privacy Policies. Please select and accept your settings before you continue. Thank you.
To use this third-party content we need your approval to share your data with them. Here are all the details about Newegg’s Cookie and Privacy Policies. Please accept if you wish to continue with third-party features. Thank you.
Pros: Plug it in and forget about it. It just works.
Cons: As other reviewers have noted, don;t try to look at the lights for debugging; they all bleed into each other.
Other Thoughts: it did what I wanted it to do; then my requirement changed and I needed more ports, so I came back to Newegg to find a replacement. That's not a problem with this switch; I just needed an extra port.
