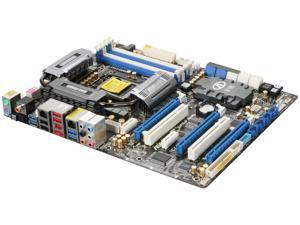

ASRock P67 EXTREME6 (B3) LGA 1155 Intel P67 SATA 6Gb/s USB 3.0 ATX Intel Motherboard
Sold and Shipped by
Core i7 / i5 / i3 (LGA1155)
Warranty & Returns
Learn more about the
ASRock P67 EXTREME6 (B3)
Model Brand ASRock Model P67 EXTREME6 (B3) Supported CPU LGA 1155 CPU Type Core i7 / i5 / i3 (LGA1155) Supported CPU Technologies Supports Intel Turbo Boost 2.0 Technology Supports Intel K-Series unlocked CPU Supports Hyper-Threading Technology Chipsets Intel P67 Memory Number of Memory Slots 4×240pin Memory Standard DDR3 2133(OC)/1866(OC)/1600/1333/1066 Maximum Memory Supported 32GB Dual Channel Expansion Slots PCI Express 2.0 x16 3 x PCI Express 2.0 x16 slots (PCIE2/PCIE4: single at x16 or dual at x8/x8 mode; PCIE5: x4 mode) PCI Express x1 2 x PCI Express x1 PCI Slots 2 x PCI Slots Storage Devices 4 x SATA 3Gb/s 2 x SATA3 6.0 Gb/s by P67 4 x SATA3 6.0 Gb/s by Marvell SE9120 (SATA3_M4 connector is shared with eSATA3 port) SATA RAID 2 x SATA3 6.0 Gb/s: RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel Rapid Storage), NCQ, AHCI and "Hot Plug" functions by P67 4 x SATA2 3.0 Gb/s: RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel Rapid Storage), NCQ, AHCI and "Hot Plug" functions by P67 Onboard Video None Onboard Audio Realtek ALC892 8 Channels Onboard LAN LAN Chipset Realtek 8111E Second LAN Chipset Realtek 8111E Max LAN Speed Dual 10/100/1000Mbps Rear Panel Ports 2 4 x USB 3.0 USB 1.1/2.0 4 x USB 2.0 IEEE 1394 1 x IEEE 1394 eSATA 1 x eSATA 6Gb/s 1 x Optical, 1 x Coaxial Audio Ports 6 Ports Internal I/O Connectors Onboard USB 2 x USB 3.0 + 8 x USB 2.0 Onboard 1394 1 x 1394 Physical Spec Form Factor ATX Dimensions (W x L) 12.0" x 9.6" Power Pin 24 Pin
Features Features Premium Gold Caps (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors Digi Power, Advanced V16 + 2 Power Phase Design Supports Intel K-Series unlocked CPU Supports Dual Channel DDR3 2133(OC) Supports ATI Quad CrossFireX, 3-Way CrossFireX and CrossFireX Supports NVIDIA Quad SLI and SLI Dual PCIE GLAN with Teaming function 2 x Front USB 3.0 ports, 4 x Rear USB 3.0 ports, 6 x SATA3 connectors, 1 x eSATA3 connector, 2 x IEEE 1394 ports 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), THX TruStudio Pro and Premium Blu-ray audio support ErP/EuP Ready Combo Cooler Option (C.C.O.) Dr. Debug, Smart Swith Design: Power/Reset/Clear CMOS Switch with LED Supports ASRock Extreme Tuning Utility (AXTU), Instant Boot, Instant Flash, Good Night LED, Multi-Speed Fan Control, AIWI, APP Charger, SmartView
Warranty, Returns, And Additional Information
Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details
Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's
Standard Return Policy.
