Model

Brand

Habey

Model

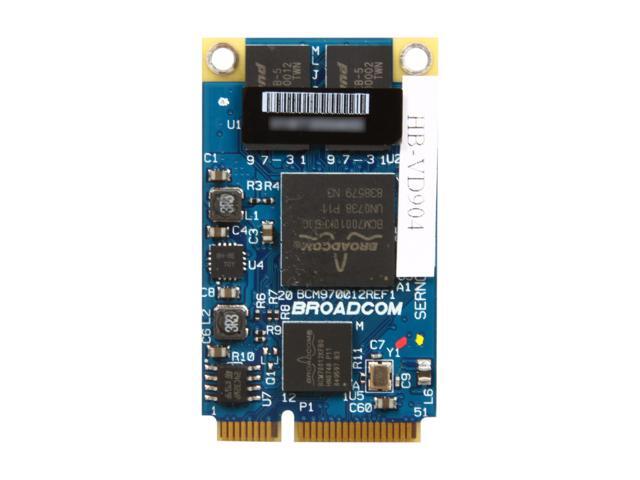

HB-VD904

Details

Specifications

Interface
Mini-PCIe, One-lane PCIe host interface

Module format
PCIe mini card

Decoding
Hardware

VC-1 Support
Complies with the SMPTE 421M-2006 specification
Supports Advanced Profile Level 3 with a 40 Mbps maximum encoded bit-rate restriction.
Supports Simple and Main Profile (WMV9, WMV-HD) decoding

H.264 Support
Complies with the ISO/IEC 14496-10 specification
Support for AVC High Profile streams up to Level 4.1 with a 40 Mbps maximum encoded bit-rate restriction
I, B, and P slices
CABAC and CAVLC entropy decoding
Field/frame and picture adaptive decoding
Macroblock adaptive field/frame decoding
All intrablock and interblock sizes
Supports Simple and Main Profile decoding

MPEG-2 Support
Complies with the ISO/IEC 13818-2 specification
Supports the Main Profile up to High Level at 125 Mbps

HD Standard Support
H.264/AVC HP at L 4.1 1080i/1080p, 40 Mbps
H.264/AVC HP at L 3.0 480i/480p
H.264/AVC HP at L 3.2 720p
SMPTE VC-1 AP at L 3 1080i/1080p, 40 Mbps
WMV9 (VC-1 SP and MP)
MPEG-2 MP at ML
MPEG-2 MP at HL

Uncompressed Video Output
YUV 4:2:0, YUV 4:2:2
NV12 planar YCbCr format
YUY2, UYVY-packed YCbCr format
QVGA to full HD support

Dimensions (W x D x H)
2.0" x 1.18"

Features

Features

PCIe mini Card form factor for mobile application
Full HD video hardware decoding
Supports multi-standard HD video formats
Built-in media security functions
Support H.264, VC-1, MPEG-2, WMV decoding up to 1080p
Low power consumption
