Model

Brand

Koutech

Model

1002E

Details

Type

IEEE 1394a ExpressCard

Standards

IEEE 1394

Data Rates

400Mbps

1394

2 x IEEE 1394

Interface

ExpressCard slot

Operating Systems Supported

Supports Windows 2000/XP/Server 2003

System Requirements

PC or laptop computer with 256MB of RAM and 1GHz or faster processor
One (1) available Universal or 34 mm ExpressCard slot
Windows 2000/XP/Server 2003 or later

Features

Features

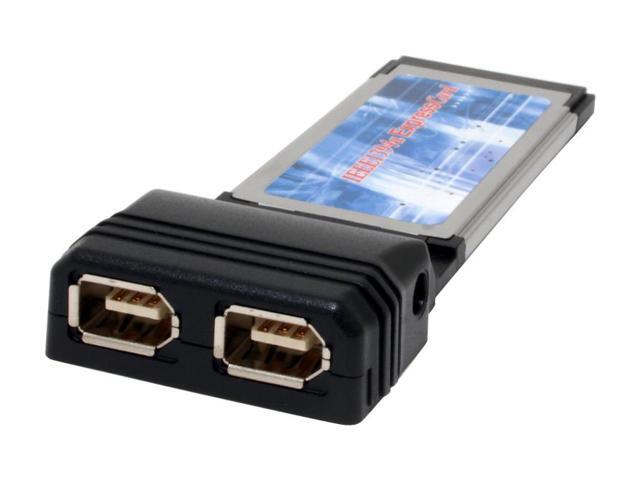

Our 1002E uses the new ExpressCard slot on your notebook computer replaces the CardBus PC Card slot. It enables you to take advantage of the high-speed performance offered by the new PCI Express technology
Two (2) 400Mbps FireWire/1394a ports on a ExpressCard/34 module
An ExpressCard/34 module (34 mm wide) can fit into either a Universal or 34 mm ExpressCard slot. If an ExpressCard/34 module is inserted into a Universal slot, the internal guidance feature gently directs the module over to engage the connectors
Fully supports provisions of IEEE 1394-1995 standard for high performance serial bus and the P1394a supplement
Fully compliant with the lastest PCMCIA ExpressCard standard
Comes with two (2) 6-pin standard connectors
Supports up to 63 devices in peer-to-peer configuration
Ideal connection for digital cameras, digital camcorders, scanners, printers, external CD/DVD writers, hard disk drives, and etc.
Compliant with Open Host Controller Interface (OHCI) specification
Supports 100/200/400 Mbit/sec transfer rate
Fully Plug-N-Play and Hot-Swap compatible
With an option to add a power adapter to ensure sufficient power supply to external power-hungry bus-powered devices (an AC/DC power adapter or an USB power cable)

Package Contents

Package Contents

One (1) FireWire/1394a ExpressCard
