YAMAHA YHT 497 BL B 5.1-Channel Home Theater System


This means the product was tested and repaired as required to meet the standards of the refurbisher, which may or may not be the original manufacturer. Any exceptions to the condition of the item outside the manufacturer’s information should be provided in the listing, up to and including warranty details.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • 100w x left/right/center
  • 85w x rear surround
  • 6 ½" 100W subwoofer
  • Front USB input for iPhone/MP3
  • Color on screen Display
  • 3D HDMI pass-through
  • 4K Pass Through for next Gen TVs

  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

YAMAHA YHT-497BL home theater system is a receiver & speaker combo that steps up your home audio/video entertainment at price that won't make you wince. The piano black 5.1-channel speaker system includes a 6-1/2” 100W active subwoofer to pump out powerful, dynamic sound. The subwoofer beautifully harmonizes with other A/V components and will enhance your home décor. The AV receiver is easy to operate and packed with a full set of features to optimize your home audio experience. It supports Dolby TrueHD and DTS-HD Master Audio format, the latest HDMI with 3D and Audio Return Channel, direction connection for your iPod and iPhone through a USB port, and comes future-ready with 4k video pass-through. To top it all off, you'll love its environment-conscious ECO mode.

Audio Features

  • 5-Channel powerful surround sound (100W per Channel)
  • HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus and DTS-HD High Resolution Audio
  • 192kHz / 24-Bit Burr Brown DACs for all channels
  • High dynamic power, low-impedance drive capability
  • Full-range piano-black speaker system
  • 6-1/2” 100W Active subwoofer

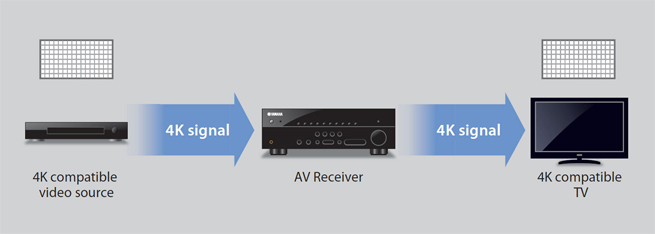

4K Pass-Through for Next-Generation Super High Resolution Images

This AV receiver is ready for the future with advanced HDMI features including 4K pass-through. "4K" refers to four times the resolution of a 1080p display. While not yet available, 4K displays and sources are sure to become popular in the future. This receiver is capable of passing the 4K data from the source to the display, for image clarity far beyond present standards.

HDMI with 3D and Audio Return Channel

Thanks to 3D Pass-through, you can enjoy stereoscopic 3D content when used with 3D sources. The Audio Return Channel function enables data to be sent and received via the same HDMI cable, so you can hear the sound from the TV via a single HDMI cable, with no need for an extra optical cable.

YPAO Sound Optimization for Automatic Speaker Setup

YPAO analyzes the room acoustics and adjusts various audio parameters for optimum sound in just a few minutes. It’s like having a professional installer calibrate your system.

USB Digital Connection for iPod and iPhone

Play and charge your iPod/iPhone with the front panel USB port. Because the digital signal from the iPod/iPhone is transmitted directly to the AV receiver, there is no signal loss or interference, so you enjoy the best possible sound quality. In addition, you can use the receiver’s remote control unit to operate the iPod/iPhone music playback functions.

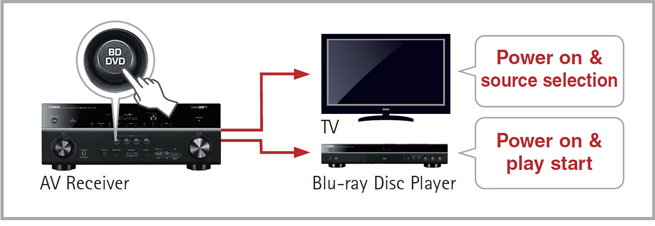

SCENE for One-Touch Start

Enjoy a new level of operating ease with the SCENE. Pressing a SCENE button powers on the AV Receiver and selects the input source and DSP mode. You can re-set the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.

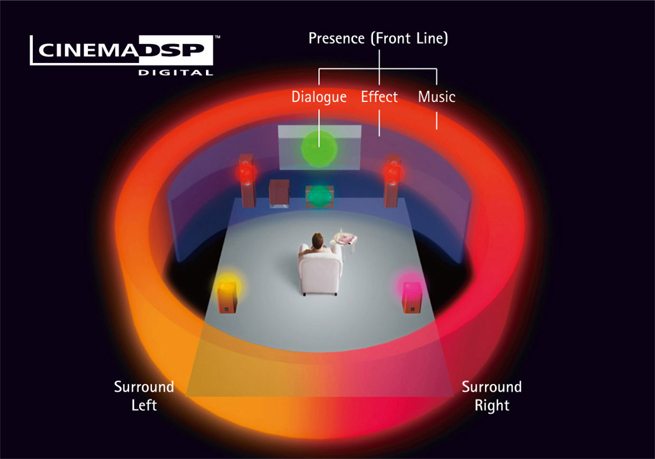

HD Audio with CINEMA DSP

Yamaha’s exclusive CINEMA DSP technology supports playback of HD Audio (Dolby TrueHD, DTS-HD Master Audio, etc.), providing natural and expansive sound imaging.

HDMI CEC for Easy Operation

Control multiple components with a single remote thanks to HDMI CEC function. When the unit is connected to a CEC compatible TV, it will turn on and off together with the TV, and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver’s remote unit to control player functions like Skip and Stop. (All connected devices must be HDMI CEC compatible. Some CEC compatible TVs/players may not work.)

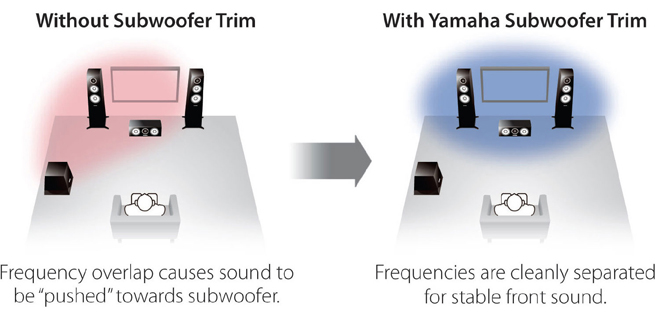

Subwoofer Trim for Improved Sound Imaging

By avoiding overlap with the front speaker output, the Subwoofer Trim control results in a cleaner, more focused sound stage while providing a seamless frequency response and enhanced low frequencies. When subwoofer frequency overlap occurs in conventional systems, the overall sound is "pushed" toward the subwoofer. Subwoofer Trim takes care of this by separating the low subwoofer frequencies cleanly, thus stabilizing the front stage while providing a well-balanced enhanced bass sound.

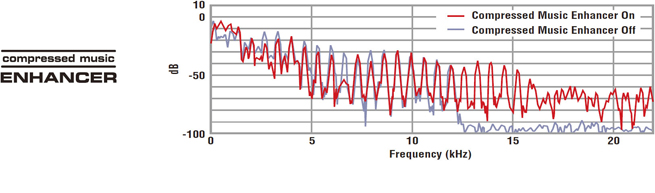

Compressed Music Enhancer

Digitally compressed format like MP3, WMA suffers loss of sound detail and frequency response. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

ECO-Mode Lowers Power Consumption by 20%*

Yamaha’s new ECO mode reduces power consumption by about 20%. It can be set from the top of the GUI menu.
*Compared to power consumption when ECO mode is off (Yamaha measurement).

Selectable Auto Power Down

Save energy by turning off the power after user-defined two, four, eight, or 12 hours.

Learn more about the Yamaha YHT 497 BL B


YHT 497 BL B


Speakers Configuration
Front Speaker x 2
Center Speaker x 1
Surround Speaker x 2
Subwoofer x 1
Speakers Driver Unit
Front Speaker: 2-3/4" full-range cone

Center Speaker: 2-3/4" full-range cone

Surround Speaker: 2-3/4" full-range cone

Subwoofer: 6-1/2" cone
Speakers Power Rating
Front/Center/Surround Speaker Input Power (Max/Nominal): 100 W / 30 W

Subwoofer Dynamic Power: 100W
Receivers Spec
Minimum RMS Output Power (8 ohms, 1 kHz, 0.9% THD):
Front Channels: 100 W +100 W
Center Channel: 100 W
Surround Channels: 100 W +100 W

Dynamic Power/Ch (Front Ch, 8/6/4/2 ohms): 110/130/160/180 W

Standby Power Consumption: 0.3W
HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus and DTS-HD High Resolution Audio
D/A Converter
192 kHz/24-bit Burr Brown DACs for all channels
HDMI (Audio Input Assignable) Input x 4
USB x 1
Radio Antenna (FM/AM): 1 / 1
Optical Digital In x 2
Coaxial Digital In x 2
Analog Audio In x 4
Component Video (Audio Input Assignable) In x 2
Composite Video In x 4
Audio Mini Jack x 1
HDMI Output x 1
Analog Audio Out x 2
Component Video Monitor Output x 1
Composite Monitor Output x 1
Composite AV Out x 1
Speaker Out (without subwoofer): 5ch
Subwoofer Out x 1
Headphone Jack x 1


Full-range piano-black speaker system

High dynamic power, low-impedance drive capability

4K pass-through for next generation super high resolution images

HDMI (4 in/1 out) with 3D and Audio Return Channel

HDMI CEC with versatile control

Supports Deep Color (30/36 bit), x.v.Color, 24 Hz Refresh Rate and Auto Lip-Sync compensation

SCENE buttons with direct power on (BD/DVD, TV, CD and Radio)
- quick and simple to use

Front panel USB Digital Connection for iPod and iPhone

Multi language color OSD for improved visibility

YPAO sound optimization for automatic speaker setup

Front panel mini jack input for connecting portable audio player

Audio input assign capability for HDMI and component video input

9 selectable subwoofer crossover frequencies

Subwoofer phase select / Subwoofer out

Initial Volume Setting and Maximum Volume Setting

Audio Delay for adjusting Lip-Sync (0-250 ms)

40-station preset tuning / Auto preset tuning

Preset remote unit

Background Video feature (for Radio only)

Dimensions & Weight

A/V Receiver (W x H x D): 17.1" x 6" x 12.4"

Front Speaker (W x H x D): 4.4" x 6.9" x 4.6"

Center Speaker (W x H x D): 10.9" x 4.4" x 4.6"

Surround Speaker (W x H x D): 4.4" x 6.9" x 4.6"

Subwoofer (W x H x D): 11.4" x 11.5" x 12.9"
A/V Receiver: 16.5 lbs.

Front Speaker: 1.3 lbs. /ea.

Center Speaker: 1.61 lbs.

Surround Speaker: 1.3 lbs. /ea.

Subwoofer: 17.6 lbs.
