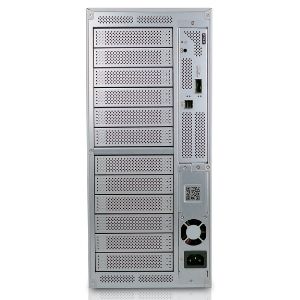

Accusys - ExaSAN A12S3-PS PCIe 3.0 12 Bay RAID Shared Storage, PCIe SAN, for Multiple Users, Optimized for Multi Stream 8K Workflows, Fiber Channel Performance at NAS Cost, Preferred by DIT Work Group

In stock.
Ships from Taiwan.
Most customers receive within 7-12 days.
  • System Type: 12-bay Tower RAID system
  • Host Interface: PCIe 3.0
  • Data Transfer Rate: 32 Gb/s
  • Disk Interface: SAS / SATA * 12
  • Disk Type: 3.5" / 2.5" / HDD / SSD
  • Hardware RAID (supports Raid 0, 1, 5, 10, JBOD)
  • Cache Memory: 2G DDRlll 1866 with ECC-protected
  • JBOD Expansion: JBOD * 3
  • Shared by multiple users with Mac or Windows
  • Optimized to support multi stream 4K and 8K workflows
  • 3 Year limited warranty
  • Made in Taiwan
Overview
Specs
Reviews
PCIe SAN

A12S3-PS with 12 units of SAS/SATA/SSD HDD support, over 2500MB/s read and 2000 MB/s write performance, making A12S3-PS both powerful yet versatile to handle most tasks associated with 8K editing software and storages.

A12S3-PS based on PCIe3.0 technology offers both impressive speed and capacity, which is why production companies select ExaSAN to avoid the high cost and complexity associated with more traditional SAN solution.

JBOD Expansion
  • 12 Bay enclosure
  • Mini SAS HD interface
  • One A12S3-PS RAID system supports up to three A12S3-SJ for storage capacity expansion; the total capacity is 864TB (fully loaded with 18TB HDD)
  • JBOD Compatible with 3.5 and 2.5 inch SATA/SAS/SSD/Enterprise HDD
  • PCIe SAN ready
4000 MB/s Ultra Speed Double DAS

For users who seek extreme speed, Accusys ExaSAN offers the Z2D HBA Card, striping two RAID systems to double the speed. With A12S3-PS, the 12-bay PCIe3.0 RAID system, the total throughput achieved can be up to 4000 MB/s. Even a single A12S3-PS can get 2500 MB/s and process multiple video streams.

Technical Specifications
System Type 12-bay Tower RAID system
Host Interface PCIe 3.0
Data Transfer Rate 32 Gb/s
Disk Interface SAS / SATA * 12
Disk Type 3.5" / 2.5" / HDD / SSD
RAID Level 0, 1, 5, 6, 0+1, JBOD
Cache Memory 2G DDRlll 1866 with ECC-protected
JBOD Expansion JBOD * 3
Operating Temperature 0 ~ 40 Degrees Celsius
Storage Temperature -20 ~ 70 Degrees Celsius
Operating Humidity 5%~85%, Non-condensing
Dimensions 369 x 175 x 394.6 mm
Weight 13.64 kg / 30 lbs

RAID Controller Functions

  • Online RAID Set Expansion and RAID LEVEL Migration
  • Online bad block data recovery and reallocation
  • Online disk scrubbing with data refresh and parity
  • Disk health monitorning by S.M.A.R.T
  • Array Roaming and Drive Traveling
  • Mirror Snapshot for fast backup and restore
  • Disk Lag Proof Technology to guarantee disk timely response
  • Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation

Management

  • Java-based RADIGuard X GUI
  • Event log saving in text file for quick trobleshooting
  • Event notification by email (SMTP)
  • LED indicator for RAID & disk drives status in front
  • 400W (Single or Redundant). 110V~240V power supply
  • Two 12cm x 12 cm Fan with Smart Fan Control feature
