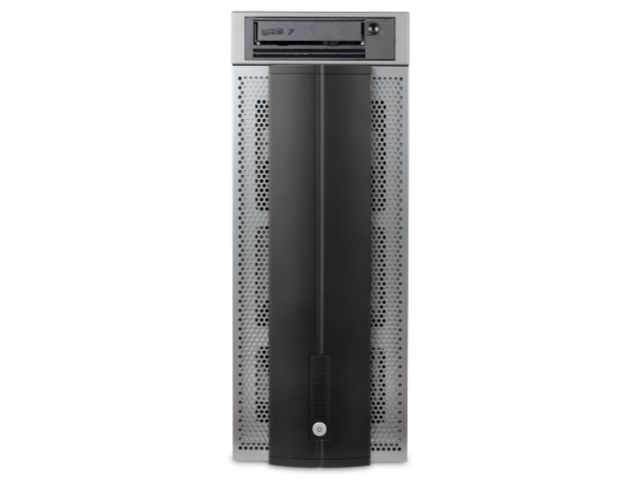

T-Share LTO combines 11-bay disk array and 1 LTO drive in a tower system. On-line editing and off-line archiving can all be done with one single box.
No more version confusion, since you can do color grading while foley artists, VFX editors and sound mixers are doing their part on the same file centrally stored in T-Share LTO. For delivery, it has never got easier, simply save the finished product into the LTO that is integrated with your central RAID storage.
*LTO 8 edition is also available
T-Share LTO has 4 Thunderbolt 3 ports and 1 PCIe port for you to configure it as Storage Area Network (SAN) when integrated with SAN software. It allows for 4 Thunderbolt clients and 1 PCIe client to share content. This works perfectly well for small editing groups.
Or, you can simply partition the storage array into several storage volumes as direct attached storage (DAS) with immense capacity.

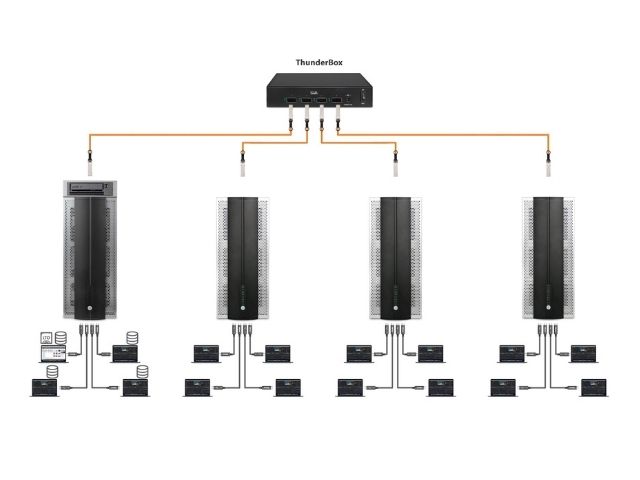

You can connect T-Share LTO and 1 A12T3-Share via PCIe ports to create a 23-bay RAID & 1 LTO drive, allowing up to 8 clients to share the data pool. With the help of Thunderbox, you can connect one T-Share LTO and there A12T3-Share to generate a workspace for no more than 16 clients to work concurrently on files that are centrally stored.
LTO tape has numerous advantages. Wanna keep your data safe and organized? You will be satisfied with what T-Share LTO brings you.
- Long-term Archive: Kept in appropriate conditions, LTO tape has 30 years shelf life.
- File System Compatibility: LTO tape is written in LTFS format, which is compatible with both Mac and Windows.
- Cost-effective: In terms of space and expenses, moving your data to LTO tape surely can make room and save you money compared with HDD or SSD.
- Data Safety: LTO Tape is less sensitive to mechanical damage, and a lot less vulnerable than HDD or SSD.
|System Type||11-bay Tower RAID system + LTO Drive|
|Interface||Thunderbolt 3 * 4, PCIe 3.0 *1|
|Data Transfer Rate||Thunderbolt 3 : 40 Gb/s, PCIe 3.0: 32 Gb/s|
|Disk Interface||SAS / SATA * 12|
|Disk Type||3.5" / 2.5" / HDD / SSD|
|RAID Level||0, 1, 5, 6, 0+1, JBOD|
|Cache Memory||2G DDRlll 1866 with ECC-protected|
|JBOD Expansion||JBOD * 3|
|T-Share Expansion||Thunderbolt 3 * 8, JBOD * 6|
|Dimensions||369 x 175mm x 475mm|
