Question 1

Does it come with the DVI cable?

Accepted Answer

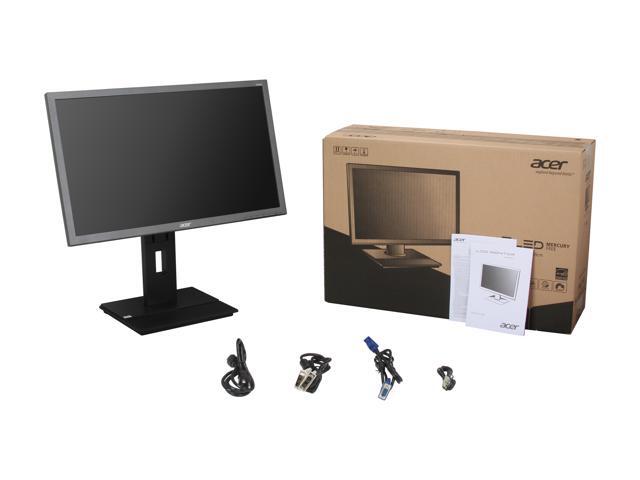

Mine came with cables for DVI, VGA, and auxilary cable. It wasn't terribly long though, probably about 4'. Had to rearrange my desk so it would reach my desktop on the floor.

Question 2

Does this monitor work with a dual monitor system and is there volume control on the front of the monitor?

Accepted Answer

The monitor works great in a dual monitor configuration. Of course, you'll need two! I haven't used the built-in speakers, but the audio controls are embedded in the pop-up menu that appears and is navigated with the buttons on the lower right front of the monitor. There is a convenient 1/8" audio plug in the back that receives the audio signal from your computer or laptop.

Question 3

Is this glossy or matte?

Accepted Answer

I am not sure what you are referring to, the bezel or the screen.  The bezel is matte.  It is a very dark gray, not a pure black.  The screen looks like it is an anti glare screen and does not reflect lights etc.

Question 4

What is the maximum height this monitor can be adjusted on the stand? If you could give the height from the desk to the bottom of the monitor that'd be great :)

Accepted Answer

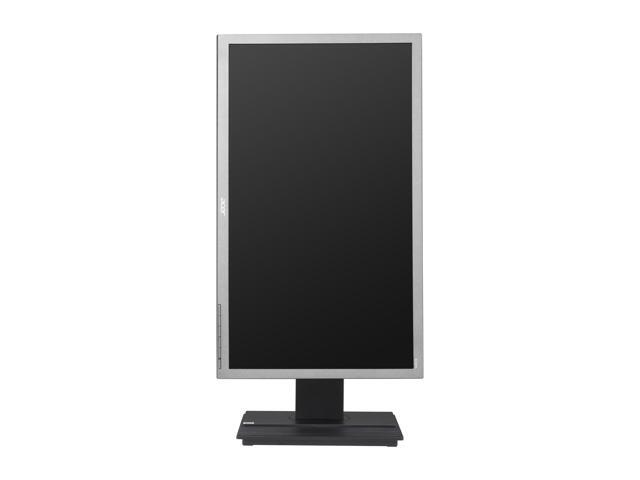

Landscape the max is 8" from the desk to bottom of the monitor.  Turned portrait it is 3 and 5/8".  It can slide lower but those are the highest points.  Hope that helps.

Question 5

How important is it for a monitor to have an HDMI connection?

Accepted Answer

By using the HDMI connection, you get audio through the monitor's speakers as well as HD video to the monitor through the one HDMI cable.
If you don't want to use the monitor's speakers, a DVI connection will deliver just the HD video through a DVI cable.

Question 6

I bought this monitor but can't seem to get it adjusted quite right.  For those that own it, can you share the settings that you are using?  Thanks, much appreciated.

Accepted Answer

I have color temp set to user, with all 3 values at 50, and then I also have both brightness and contrast set at 50. Basically, everything down the middle. Out of the box, I found the default setting a bit too much for my tastes, so I dialed back the brightness and contrast. But, I spend most of my day writing code, so I prefer lower eye strain to more accurate colors. For all I know, this could be the perfect setting; I do know it works well for my needs...

Question 7

For those of you using this as a second screen on a Mac, have you been able to get the colors to match on both screens? I have a MacBook Air and no matter how much tuning I did, I could not get a 24" Asus monitor to get the same colors as my laptop's screen so this is something I'm a bit concerned about.

Accepted Answer

This may be impossible due to the 2 monitors being unique items. They were made by different companies at different times & most likely to different specs. You may get reasonably close but I'd expect you'd never get them to match perfectly....

Question 8

I have limited desk space.  What are the dimensions of the base/stand (depthXwidth)?  Thank you.

Accepted Answer

The base is 10 1/8" wide and 8 5/8" deep.

Brand	Acer
Series	UM.VB6AA.001
Model	B236HLymdr
Cabinet Color	Dark Gray

Screen Size	23"
LED Backlight	Yes
Widescreen	Yes
Resolution	1920 x 1080
Refresh Rate	60Hz
Viewing Angle	178° (H) / 178° (V)
Monitor Pixel Density	0.265mm
Display Colors	16.7 Million
Brightness	250 cd/m2
Contrast Ratio	100,000,000:1 (1,000:1)
Response Time	6ms (GTG)
Panel	IPS
Display Type	FHD

Input Video Compatibility	Analog RGB, Digital
Connectors	D-Sub, DVI
D-Sub	1
DVI	1
HDMI	No
DisplayPort	No

Complies with	ENERGY STAR
Power Supply	100 - 240 VAC, 50/60Hz
Power Consumption	0.35W (Energystar Off) 0.45W (Energystar Sleep) 21.9W (Energystar On)

Regulatory Approvals	TCO6.0, EPEAT Gold (ready)
Stand Adjustments	Tilt: -5 degree ~ 35 degree Swivel: 60 degree Height Adjustment: 150mm Pivot
Built-in Speakers	Yes
HDCP Support	Yes
VESA Compatibility - Mountable	100 x 100mm

Acer B236HLymdr Dark Gray 23" 6ms (GTG) Height&Pivot adjustable Widescreen LED Backlight LCD Monitor IPS 250 cd/m2 100,000,000:1 (1,000:1) Built-in Speakers

Learn more about the Acer America B236HLymdr

Customer Reviews of the Acer America B236HLymdr

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Dimensions	15.0" ~ 20.9" x 21.4"x 8.7" w/ stand 12.8" x 21.4" x 2.0" w/o stand
Weight	13.7 lbs. w/ stand 7.7 lbs. w/o stand

Item#: N82E16824009544
