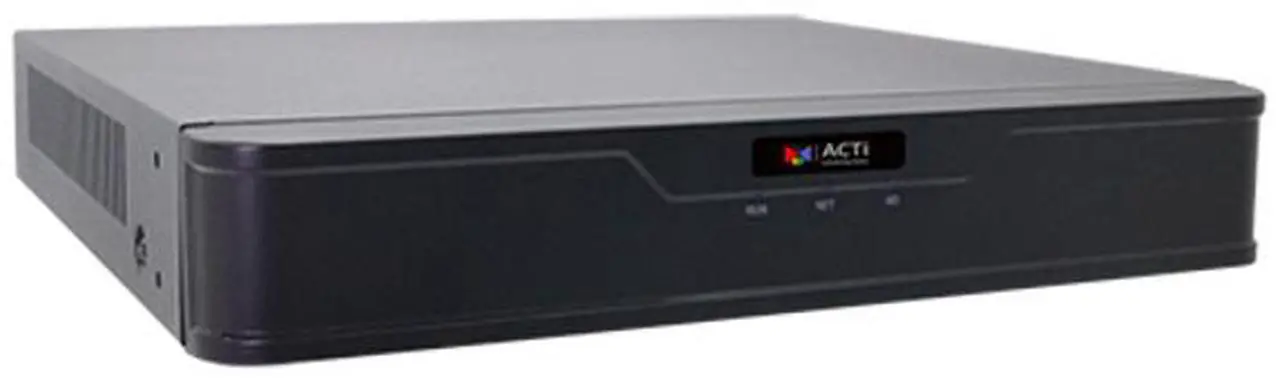

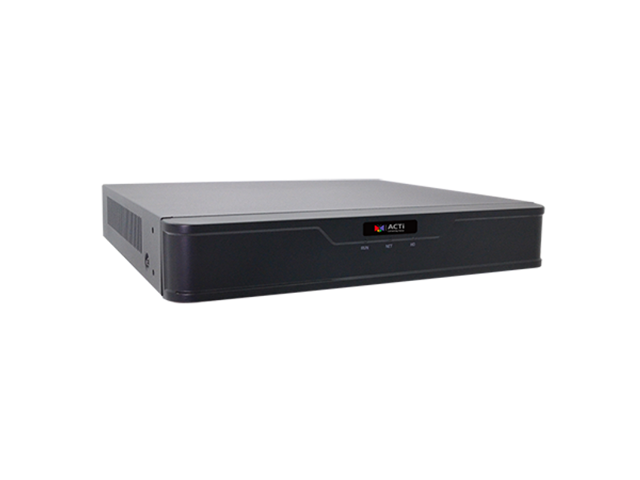

Brand | ACTi |
---|---|
Model | ZNR-221P |
Channel | 16 Channel |
---|---|
Network Interface | Non-PoE: 1 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector PoE: 16 port(s), Ethernet (10/100 Base-T), RJ-45 connector |
Ports | 1/1, RCA Jack |
Video Output | 1 x VGA, 1 x HDMI |
Frame Rate | 2ch (up to 30 fps at 4K 3840 x 2160) 4ch (up to 30 fps at 4MP) 5ch (up to 30 fps at 3MP) 8ch (up to 30 fps at 2MP 1920 x 1080) 16ch (up to 30 fps at 720p) |
Recording Type | Scheduled Recording: Yes Event Recording: Yes Manual Recording: Yes Maximum Recording Throughput: 160 Mbps |
Storage Installed | None |
Max Capacity | Storage Bay: SATA, Max. 2 Disk(s) HDD Size: 3.5" Maximum Recording Capacity: 20TB x2 RAID Level: No |
Operating System | Client PC Operating System: Windows 7, Windows 8, Windows 10 Server Operating System: Embedded Linux |
Power Supply | PoE Output: Maximum 30 Watts per port PoE Power Budget: Maximum 240 W Power Source: AC 100-240V Power Consumption: 10 W (AC, without HDD) |
Temperature | Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F) |
---|---|
Humidity | Operating Humidity: 10% - 90% RH |
Dimensions | 2.10" x 15.00" x 12.40" |
---|---|
Weight | 5.29 lbs. |
Date First Available | September 05, 2024 |
---|
