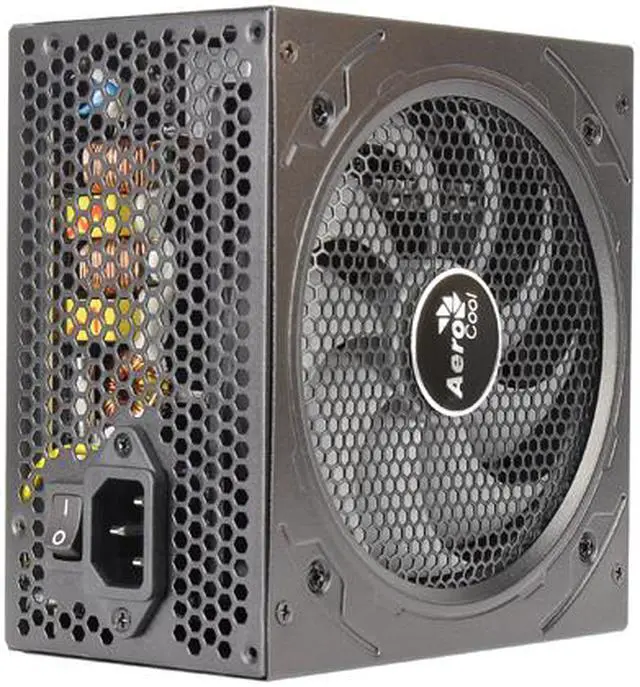

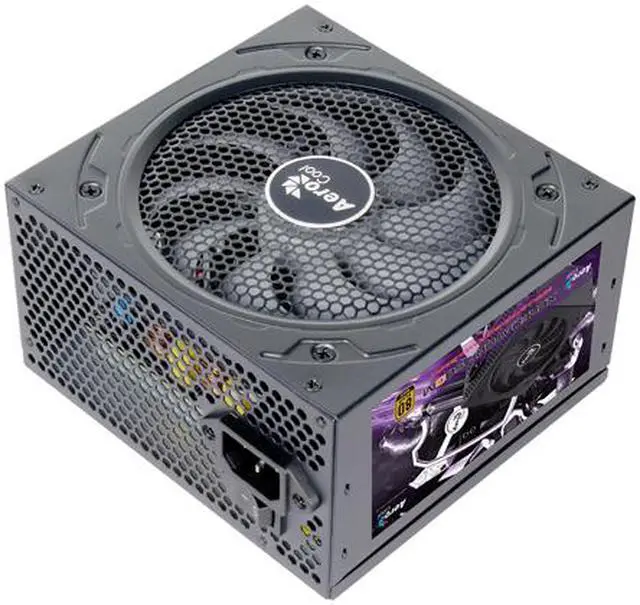

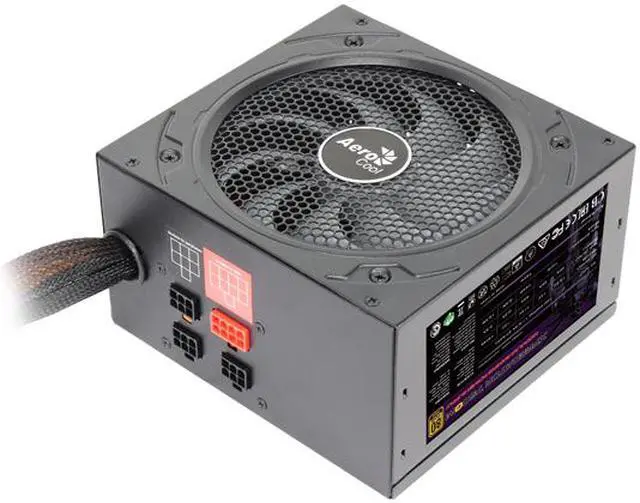

AeroCool XP Series Xpredator 750GM 80Plus Gold Modular 750 W ATX12V v2.4 and EPS v2.92 SLI Ready CrossFire Ready 80 PLUS GOLD Certified Semi-Modular Active PFC PFC SLI CrossFire Modular 750W ATX12V v2.4 and EPS v2.92 standards Power Supply
- ATX12V v2.4 and EPS v2.92
- Semi-Modular
- 80 PLUS GOLD Certified
- 100 - 240 V 47 - 63 Hz
- +3.3V@20A, +5V@20A, +12V@62A, [email protected], [email protected]
- ATX12V v2.4 and EPS v2.92 standards
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the AeroCool Xpredator 750GM 80Plus Gold Modular
| Brand | AeroCool |
|---|---|
| Series | XP Series |
| Model | Xpredator 750GM 80Plus Gold Modular |
| Type | ATX12V v2.4 and EPS v2.92 |
|---|---|
| Maximum Power | 750 W |
| Fans | 1 x 120mm Silent Grey Fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 8 |
| SLI | SLI Ready |
| Haswell Support | Yes |
| CrossFire | CrossFire Ready |
| Modular | Semi-Modular |
| Efficiency | > 90% |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 11 - 5.5A |
| Output | +3.3V@20A, +5V@20A, +12V@62A, [email protected], [email protected] |
| Approvals | RoHS and ErP Lot 6 2013, CE and TUV |
| Features | Uncompromised real 750W continuous DC output. All DC cables with mesh sleeving for optimized airflow and management. Elegant Black PSU casing with Fully Black Mesh cables. The black flat modular cables are removable by user’s demand to clean airflow block inside of computer chassis. Compliant with latest INTEL ATX12V v2.4 and EPS v2.92 design guide and backward versions. Support latest INTEL 4th generation "HASWELL" CPU with C6/C7 power saving mode. Up to 90%+ efficiency with official 80Plus Gold certificate. DC to DC circuit design offers advantages of more stable voltage regulation and huge 12V outputting during dynamic loads. Single 12V rail for high compatibility and extreme high current output. Good DC output quality with low ripple noise to reduce interference of system components. 20+4P and CPU 4+4P cable length up to 600mm - easy reach to all components. 4 PCIe 6+2pin connectors for high-end graphic card. Up to 8 SATA connectors supports multiple of hard drives. 12cm silent grey fan with smart thermal fan speed control circuit. Max.1800RPM fan speed and optimized fan curve under 1000RPM before 70% loading. Complete protections with OVP/UVP/OPP/SCP/SIP. Safety and EMC certified by CE and TUV. ECO friendly with Active PFC, RoHS and ErP Lot 6 2013 (< 0.5W at standby mode). |
|---|
| Dimensions | 3.39" x 5.51" x 5.91" |
|---|---|
| Weight | 5.30 lbs. |
| Type | ATX12V v2.4 and EPS v2.92 standards |
|---|---|
| Power Rating | 750W |
| Peak Power | 1000W |
| PFC | Active |
| +12V Rails | Single |
| SLI | Ready |
| CrossFire | Ready |
| Modular | Yes |
| +3.3V Max. Current | 20A |
|---|---|
| +5V Max. Current | 20A |
| +12V1 Max. Current | 62A |
| +5VSB Max. Current | 2.5A |
| Main Connector | 20+4 Pin |
|---|---|
| 12V Power Connector | 1 x 4+4 Pin ATX/EPS 12V |
| PCI-Express Connector | 4 x 6+2 Pin |
| SATA Power Connector | 8 |
| Floppy Connector | 1 |
| Peripheral Connector | 4 |
| Fans Total Quantity | 1 |
|---|---|
| Top Fans Size | 120mm |
| Top Fans RPM | 1000 to 1800 RPM |
| Over Current Protection | Yes |
|---|
| Dimensions | 150 x 86 x 140 mm |
|---|---|
| Weight | 5.3 |
| First Listed on Newegg | May 19, 2017 |
|---|
