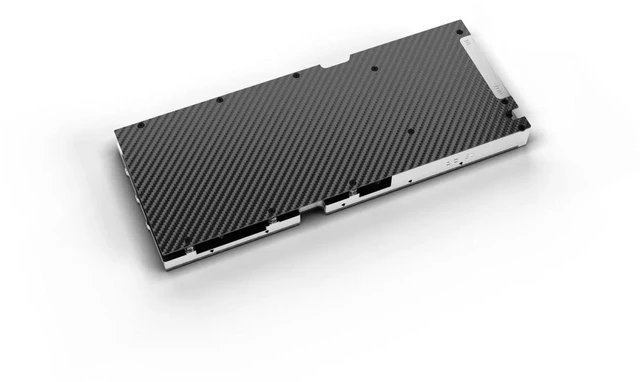

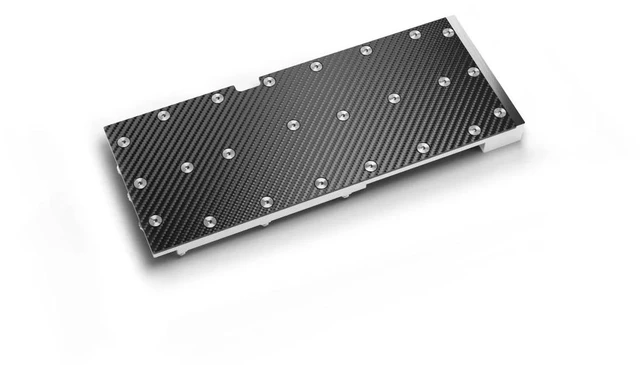

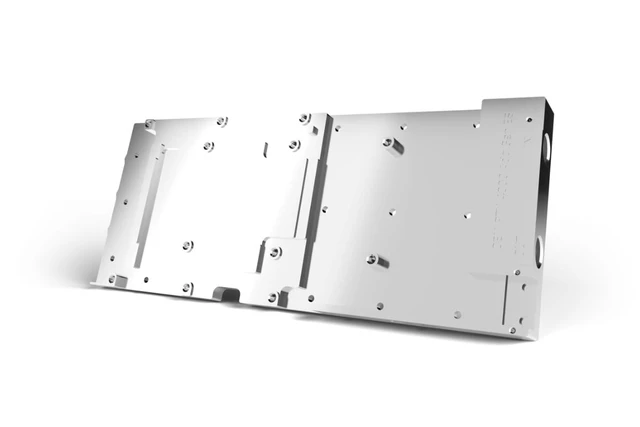

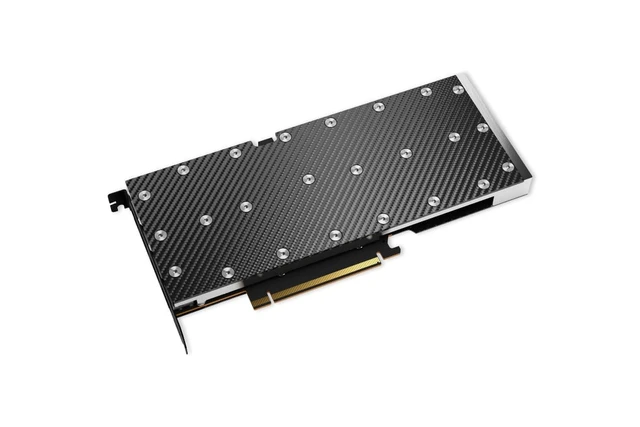

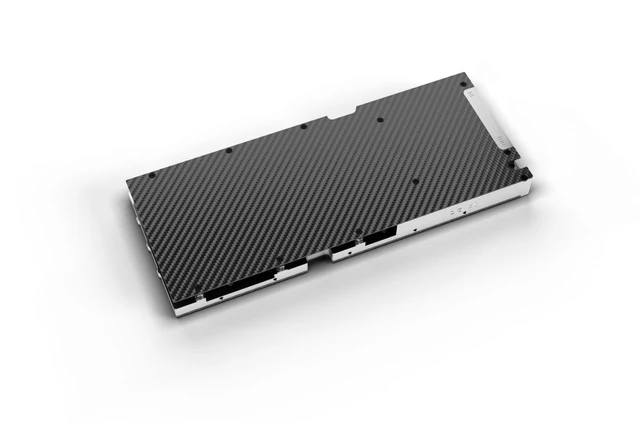

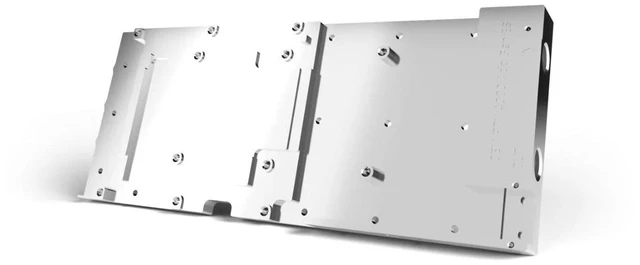

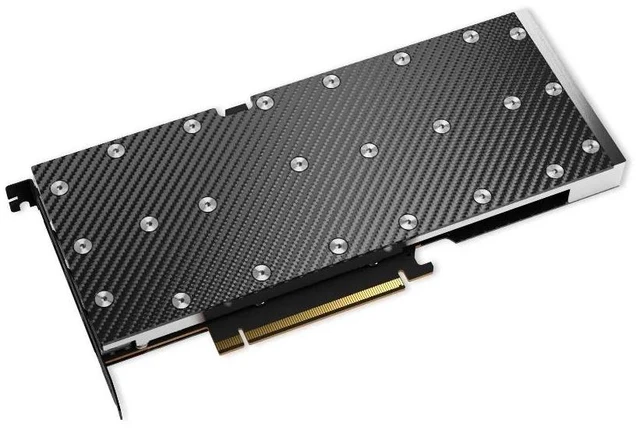

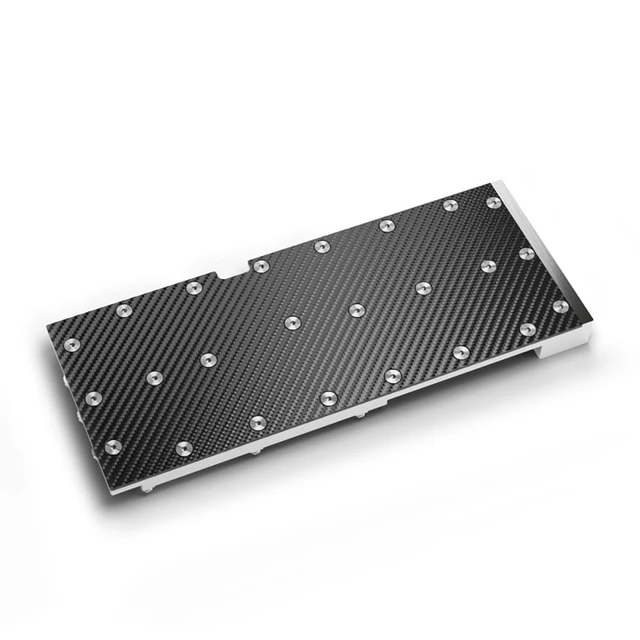

Alphacool ES RTX 4000 Ada Gen. 1-Slot GPU-Cooler (14596)

The Alphacool ES RTX 4000 Ada Ge. GPU cooler was developed for the Enterprise Series, but not only impresses with its improved cooling performance and compact design, but also with its matt carbon look.

Connections at the rear?
By using a thin and extremely stable carbon plate, it was possible to design this as a single-slot cooler without having to compromise on the copper base. In combination with the connections positioned at the rear, several coolers can be stacked on top of each other with ease. This well thought-out design saves space, simplifies tubing and enables seamless integration into the water loop.

More performance!
Alphacool has given special attention to increasing cooling performance. In addition to optimising the water flow within the cooler and the thickness of the copper block, 1mm high-performance heat conducting pads are used. These measures ensure that the components to be cooled are closer to the cooler, which leads to significantly more effective cooling of all important components.

Copper or aluminium?
High-quality copper is used for all water-bearing parts, which offers almost twice the thermal conductivity of aluminium. The copper is also chrome-plated instead of nickel-plated, which provides additional protection for the cooler. The chrome plating is more resistant to acids, scratches and other damages, which effectively prevents coatings from flaking off.

Thermal paste & thermal pads
The scope of delivery includes Apex thermal compound, which is the most durable thermal compound Alphacool offers with its low silicone content. This electrically non-conductive paste is ideal for high contact pressures and is easy to work with thanks to its viscosity. Soft, high-performance thermal pads are also supplied, which adapt perfectly to the components to be cooled.

Compatibility:
- Nvidia RTX 4000 Ada Generation, 20GB GDDR6, 4x DP, bulk (900-5G190-2270-000)

Technical data
Dimensions (L x W x H)
241,25 x 96,70 x 17,50mm
Height of the backplate
1mm
Weight (total)
1100g
Cooler base material
Chome-plated copper
Cooler top material
Carbon
Threads
2 x G1/4"
Maximum working temperature
60 °C
Pressure tested
8 Bar
Color
Black
