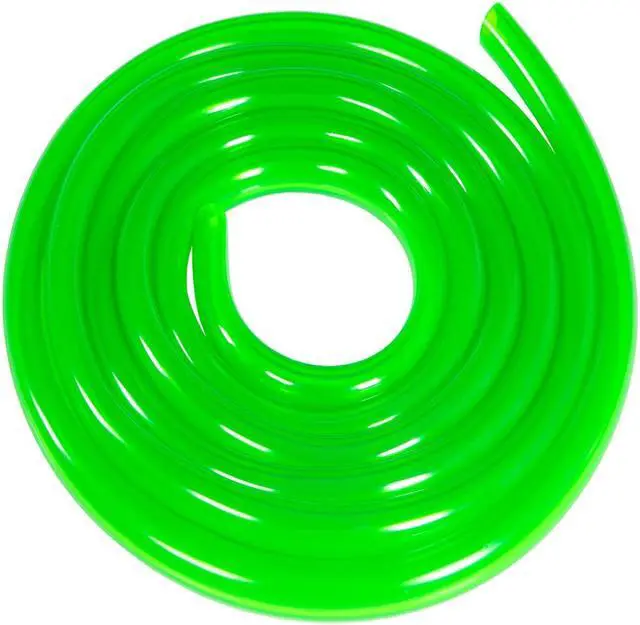

Alphacool AlphaTube HF Flexible Tubing 10mm ID, 16mm OD (3/8" ID, 5/8" OD), 3 Meters, UV Green, 16/10mm, PVC (1019554)

The Alphacool Tubing AlphaTube HF 16/10 (3/8"ID) - UV Green 3m (9.8ft) Retailbox is UV-active green PVC tubing for water cooling with a 10 mm inner diameter (ID) and a 16 mm outer diameter (OD). The retail box holds one 3 m length of hose.

Properties

• Tube size: 16/10 mm (16 mm OD, 10 mm ID)
• Length: 3 m (9.8 ft)
• Material: PVC

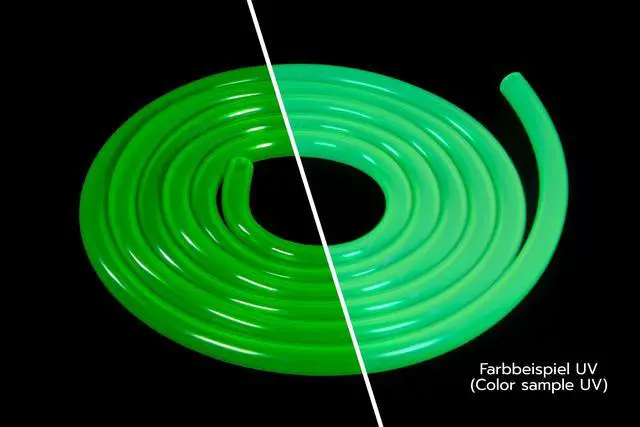

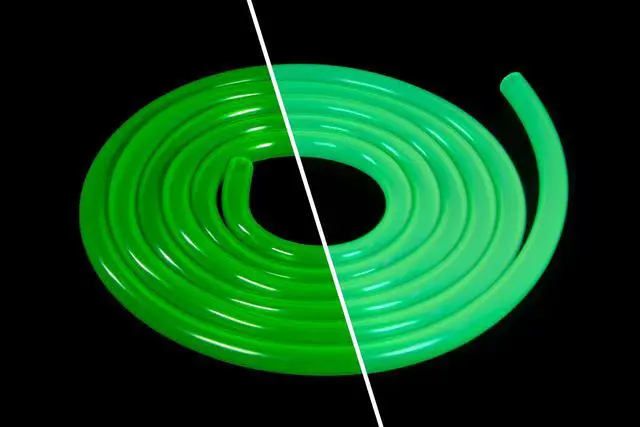

• Color: UV Green (UV-active)
• Working pressure: 3 bar

Application

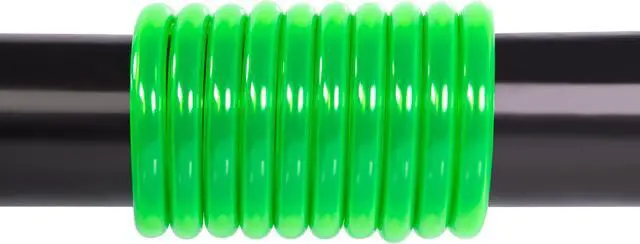

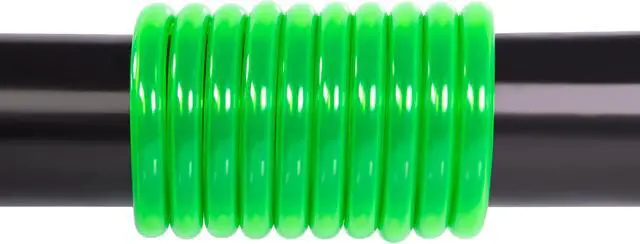

A water cooling system consists of many different elements: pumps, radiators, cooling blocks, reservoirs and often other components. In order to build up a functional loop, these must of course be connected to each other, and the easiest way to do this is to use tubing. Here Alphacool calls its AlphaTube HF the best choice. In Alphacool's words the tubing has the "perfect flexibility" to be easily installed. The hose is flexible enough to be laid without effort, but at the same time rigid enough that it will not kink easily, even with tighter bending radii.

Optics

Alphacool's product information lists the AlphaTube HF tube in different vivid colors, clear and also UV-active, and this one is the UV green version. That range offers a large selection of colors and styles, making it easy to find the hose that best suits your taste. It is also available in different sizes: "We offer the AlphaTube HF hose in all common sizes," as Alphacool puts it.

What a run needs

Each run of tubing takes two fittings, one at each end, sized for a 10 mm inner and 16 mm outer diameter. They are in our section of compression fittings for 16/10 mm tubing.

Technical data

• Length: 3 m
• Tube size: OD 16 mm / ID 10 mm
• Material: PVC
• Hardness grade: 65-70 A-Shore
• Working temperature: -10 - 80 °C
• Burst pressure: 18 bar
• Working pressure (nominal pressure): 3 bar

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can also void the manufacturer's warranty.

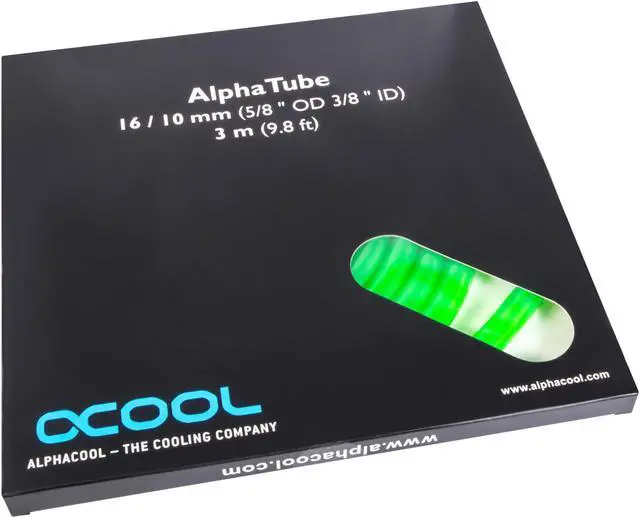

In the box

• 3 meters of tubing
