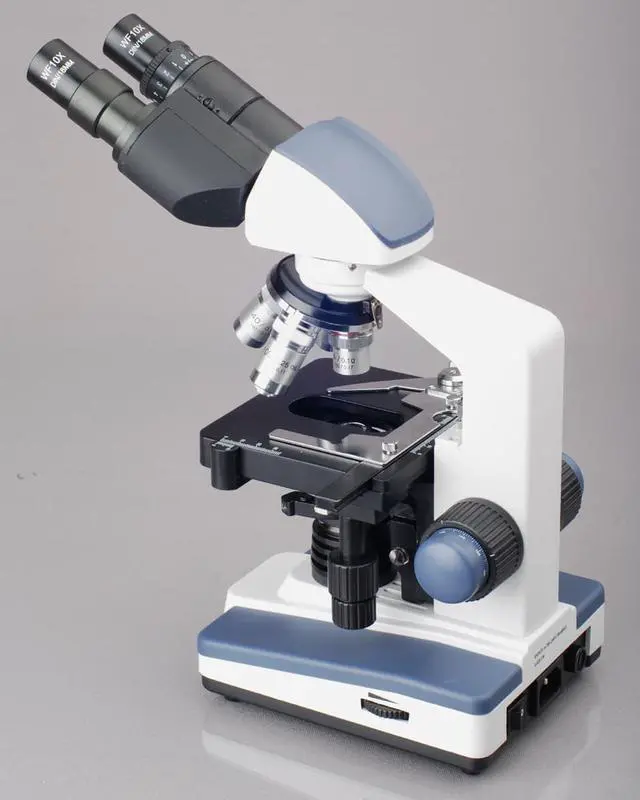

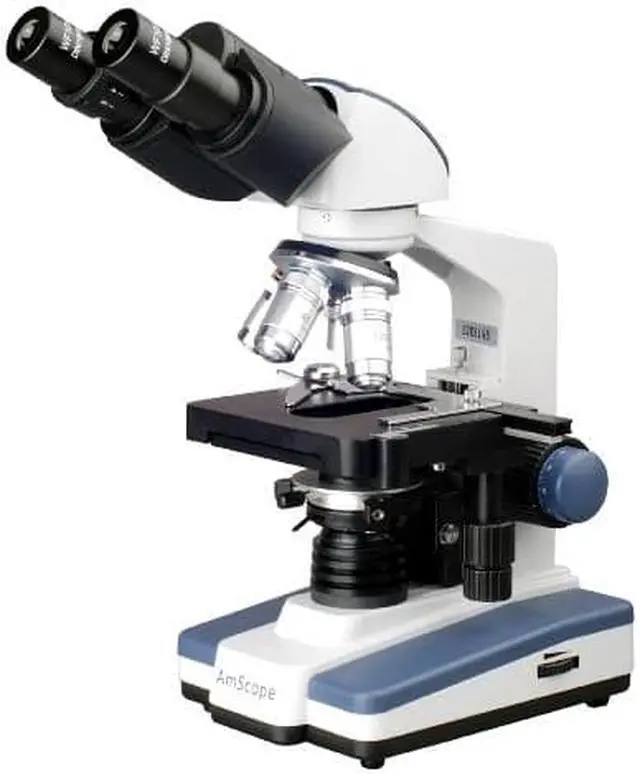

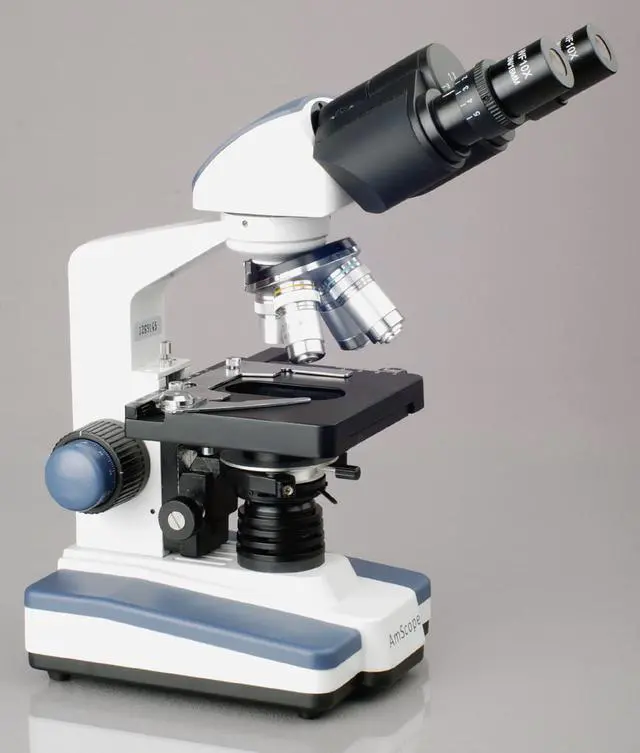

40X-1000X LED Lab Binocular Compound Microscope w 3D Two-Layer Mechanical Stage

Our new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with course & fine focusing, and an LED illumination system. There are four magnification settings: 40X, 100X, 400X & 1000X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.

Features :

30 degree inclined 360 degree swiveling Siedentopf binocular head

High quality precise optical glass elements

Easy to attach a microscope camera or digital imager

Four magnification settings, 40X, 100X, 400X & 1000X

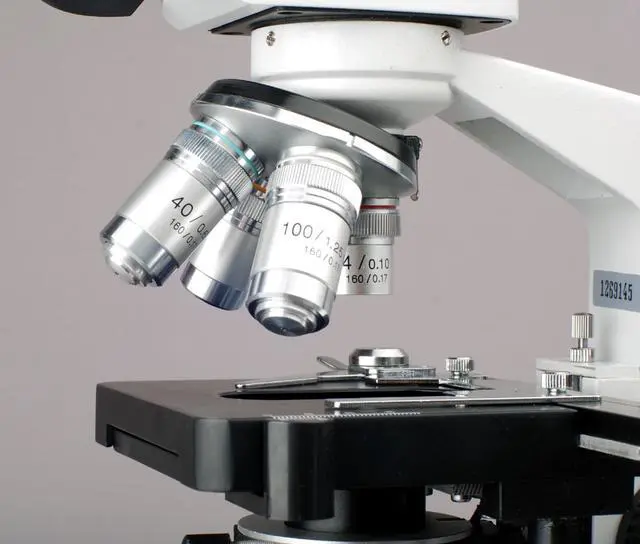

Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)

Adjustable interpupillary distance

Adjustable ocular diopter

Variable intensity illumination

Coaxial coarse and fine focus adjustment

Focusing knobs are on both sides

Stage upward moving lock protects objectives and slides

Stain-resistant double layer mechanical stage

NA1.25 Abbe Condenser with iris diaphragm & filters

Rack and pinion adjustment condenser

Specifications :

Eyepiece: widefield, WF10X

Objective: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)

Head: 30 degree inclined 360 degree swiveling binocular

Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)

Adjustable ocular diopter

Nosepiece: revolving quadruple

Mechanical Stage: 3-D double layer

- Size: 4-5/8" x 5" (118mm x 127mm)

- Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)

Condenser: NA1.25 Abbe condenser with iris diaphragm

Illumination: LED light, transmitted, intensity adjustable, GS and CE approved

Focusing: coaxial coarse & fine knobs on both sides

Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included

Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)

Packing List :

One Siedentopf Binocular Microscope Head

One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination

Four DIN Standard Objectives, 4X, 10X, 40X and 100X

One Pair of Widefield 10X Eyepieces

One Blue Color Filter

One Dust Cover

Sample Immersion Oil

User's Manual

Net weight: 11 lbs

Shipping weight: 13 lbs
