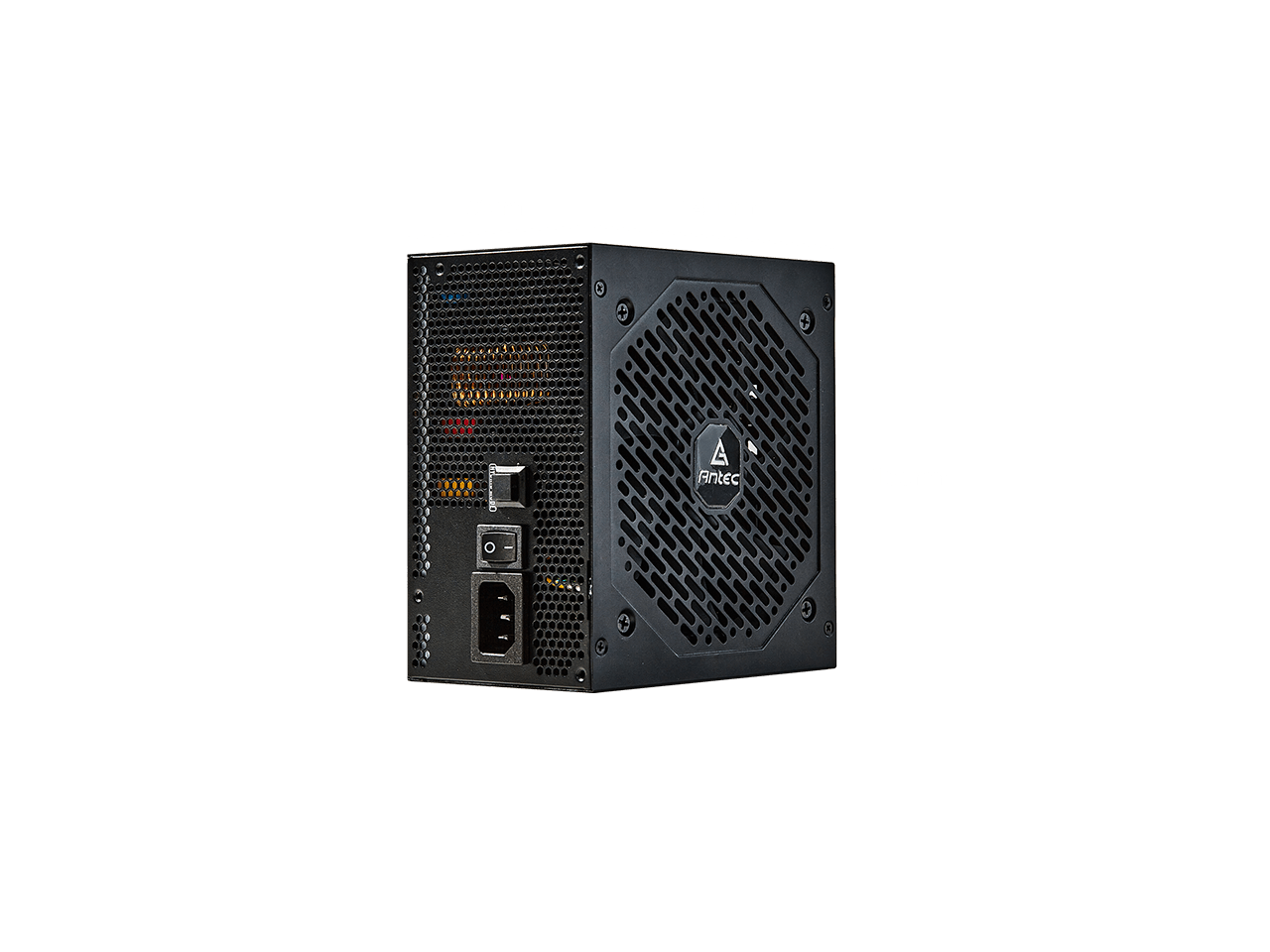

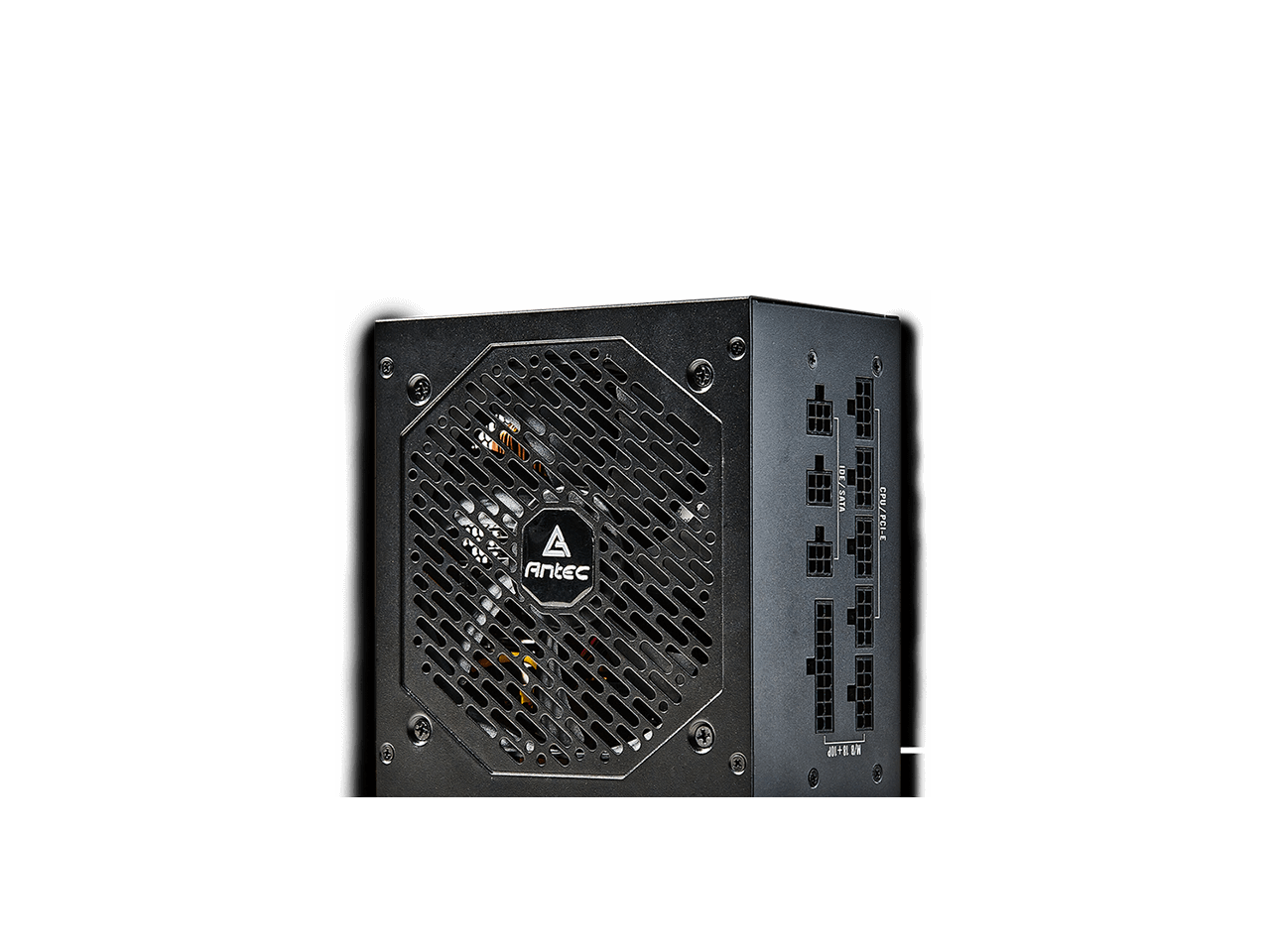

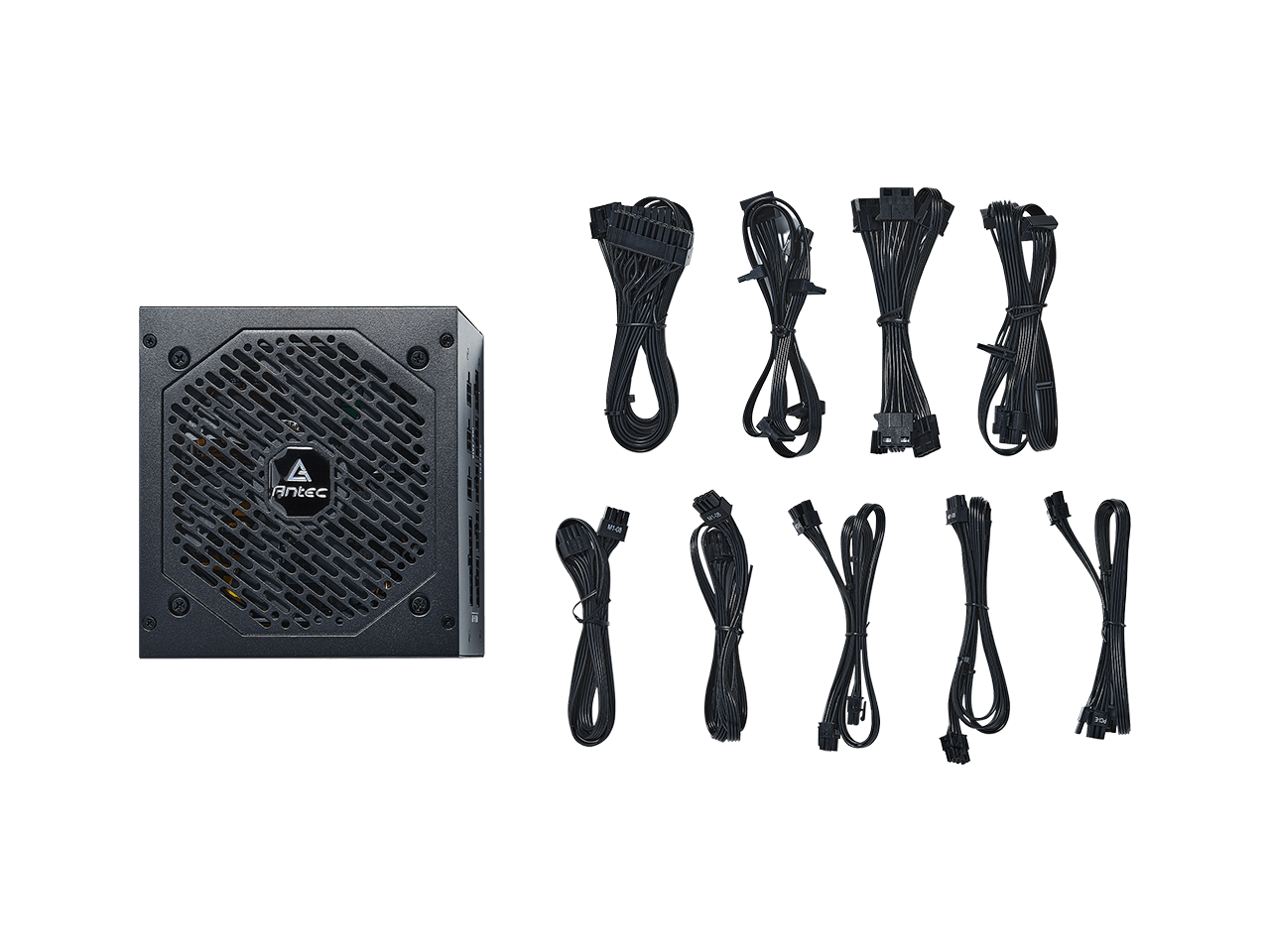

Antec NeoECO Series NE850G M, 80 PLUS Gold Certified, 850W Full Modular with PhaseWave Design, High-Quality Japanese Caps, Zero RPM Manager, 120 mm Silent Fan, ATX 12V 2.4 & 7-Year Warranty
See more "antec power supply"
Check more best sellers of "Power Supplies"
Check more lowest price of "Power Supplies"
Check more deals of "Power Supplies"
In stock.
Ships from Canada.
- - 850W Continuous Power - Guaranteed 850W of Continuous Power from Antec with 7-year warranty
- - 80 PLUS Gold Certified - Reduce your electricity bill.
- - High-Quality Japanese Heavy-Duty Capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance.

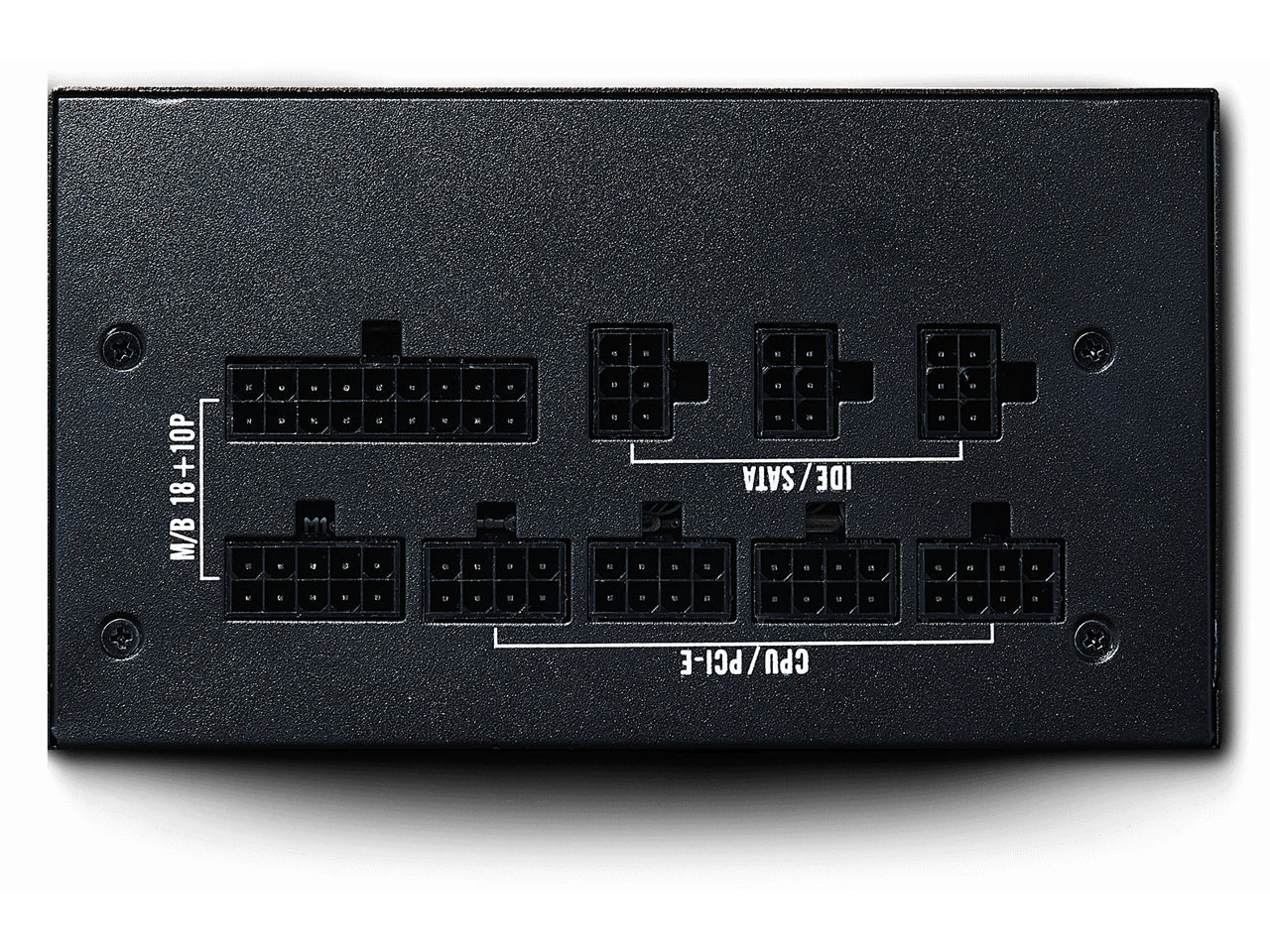

- - 28(18+10) pin MBU Socket for possible future MBU connectors
- - 120 mm Silent Fan: Whisper-quiet high-quality fluid bearing fan with long lifetime
- - PhaseWave Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
- - Zero RPM Manager: An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- - CircuitShield: Full suite of industrial grade protections: OCP, OVP, SCP, OPP, OTP, SIP, NLO
- - ATX 12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation
+
+
Specs
Reviews
Learn more about the Antec NE850G M
| Brand | Antec |
|---|---|
| Model | NE850G M |
| Type | ATX 12V 2.4 |
|---|---|
| Maximum Power | 850 W |
| Fans | 120mm Silence Fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 6 x 6+2-Pin |
| SATA Power Connector | 10 |
| Max PSU Length | 140 mm |
| Modular | Full Modular |
| Power Good Signal | 100-500ms |
| Efficiency | 92% Typically |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50Hz - 60Hz |
| Input Current | 10A MAX |
| Output | +3.3V@20A, +5V@20A, +12V@70A, -12V@0.3A, +5VSB@2.5A |
| Date First Available | January 13, 2023 |
|---|
