Antec TRUEPOWERII TPII-380 380W ATX12V Power Supply
OUT OF STOCK.
- ATX12V
- 115 / 230 V 50/60 Hz
- +3.3V@28A, +5V@35A, +12V1@16A, +12V2@16A, -12V@1A, +5VSB@2A
Specs
Reviews
Learn more about the Antec TPII-380
| Brand | Antec |
|---|---|
| Model | TPII-380 |
| Series | TRUEPOWERII |
| Type | ATX12V |
|---|---|
| Maximum Power | 380W |
| Fans | 1 |
| PFC | No |

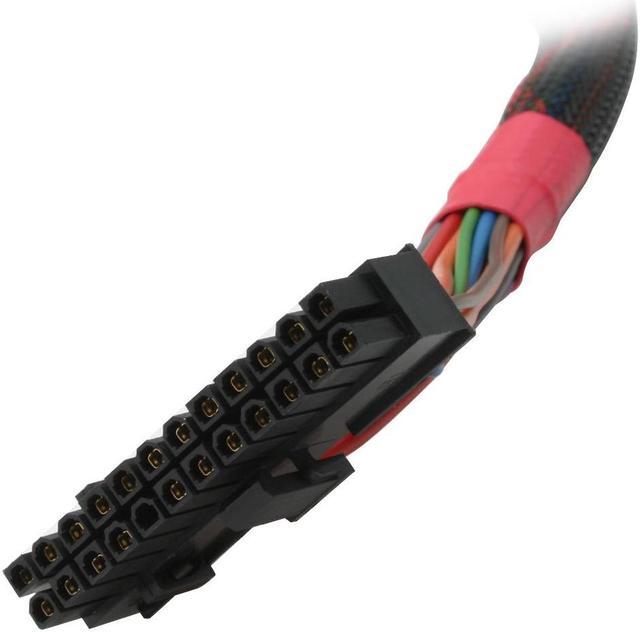

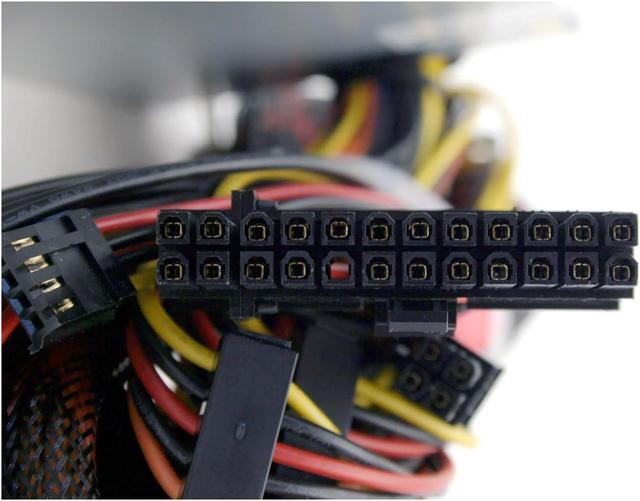

| Main Connector | 20+4Pin |
| +12V Rails | Yes |
| PCI-Express Connector | 1 x 6-Pin |
| SLI | No |
| Modular | No |
| Power Good Signal | 100-500ms |
| Hold-up Time | 17ms min. |
| Efficiency | > 70% |
| Over Voltage Protection | +5V trip point < +6.5V, +3.3V trip point < +4.1V, +12V trip point < +14.4V |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10A @ 115V, 5A @ 230V |

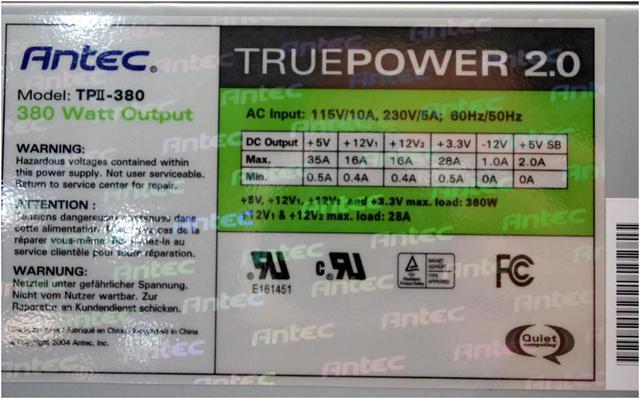

| Output | +3.3V@28A, +5V@35A, +12V1@16A, +12V2@16A, -12V@1A, +5VSB@2A |
| MTBF | >80,000 Hours |
| Approvals | UL, TUV, CB, FCC CLASS B, CUL |

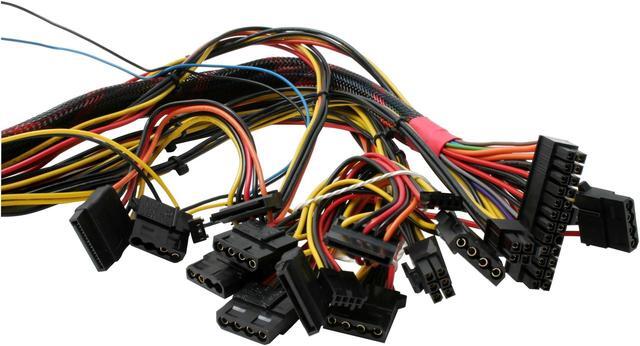

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V(P4) 7 x peripheral 4 x SATA 2 x Floppy 1 x PCI-E |
|---|---|
| Features | Single 120mm low noise fan True Spec noise level of 21.3 dBA measured at an independent lab using ISO 7779 standard Dedicated output for more stability and less ripple noise Feedback circuits for tighter load regulation (±3%) to maintain accurate voltage to all components Fan Only power connectors allow True Power to control case fan speeds, reducing total system noise Gold plated connectors for superior conductivity |
| Date First Available | March 30, 2005 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
LOADING...
Pros: The 380W supply actually puts out more power than the 400W. Compare output for output on all the voltages and it beats all the other 400W systems. Very quiet can not even hear the fan. Plenty of connectors.
Cons: None
