Brand | Antec |
---|---|
Series | TRUEPOWERII |
Model | TPII-550 |
Type | ATX12V |
---|---|
Maximum Power | 550 W |
Fans | 1 |
PFC | No |

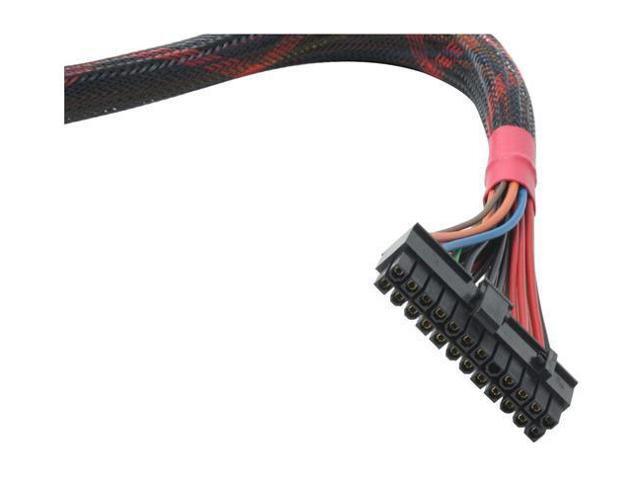

Main Connector | 20+4Pin |
+12V Rails | Yes |
SLI | SLI Certified |
CrossFire | CrossFire Ready |
Modular | No |
Power Good Signal | 100-500ms |
Hold-up Time | 17ms min. |
Efficiency | > 70% |
Over Voltage Protection | +5V trip point < +6.5V, +3.3V trip point < +4.1V, +12V trip point < +14.4V |
Input Voltage | 115 / 230 V |
Input Frequency Range | 50/60 Hz |
Input Current | 12A @ 115V, 6A @ 230V |
Output | +3.3V@32A, +5V@40A, +12V1@19A, +12V2@19A, -12V@1A, +5VSB@2A |
MTBF | >80,000 Hours |
Approvals | CB, DEMKO, FCC Class B, FIMKO, EMKO, UL, VDE, TUV |

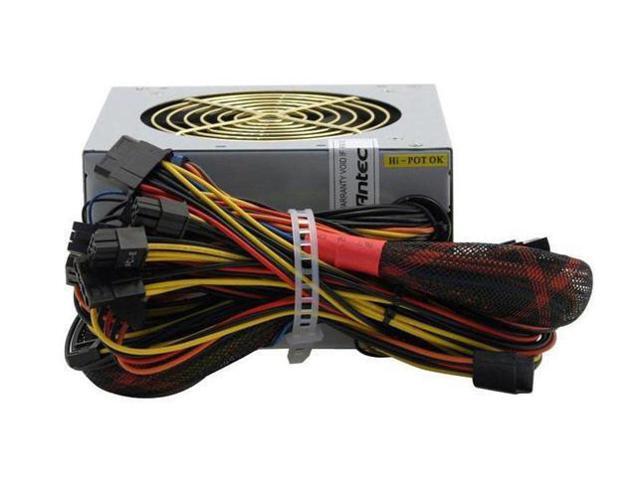

Connectors | 1 x Main connector (20+4 pin) 1 x 12V (P4) 7 x peripheral 4 x SATA 2 x Floppy 2 x PCI-E |
Date First Available | March 30, 2005 |
---|
Comments: Dont listen to those negative reviews., After carefull consideration and many reviews read later, I have found this unit to hold up to its claim, not only is it a quality PSU, but it is extremely quiet for the power it provides, only one complaint, wish I could figure out how to make this psu go into sleep mode and turn off the fan. Highly recommend it to anyone. I have purchased several Antec PSU's over the years and still own a 300Watt unit on a 500Mhz AMD Athlon overclocked to 700Mhz and still works great and silent !!!...
