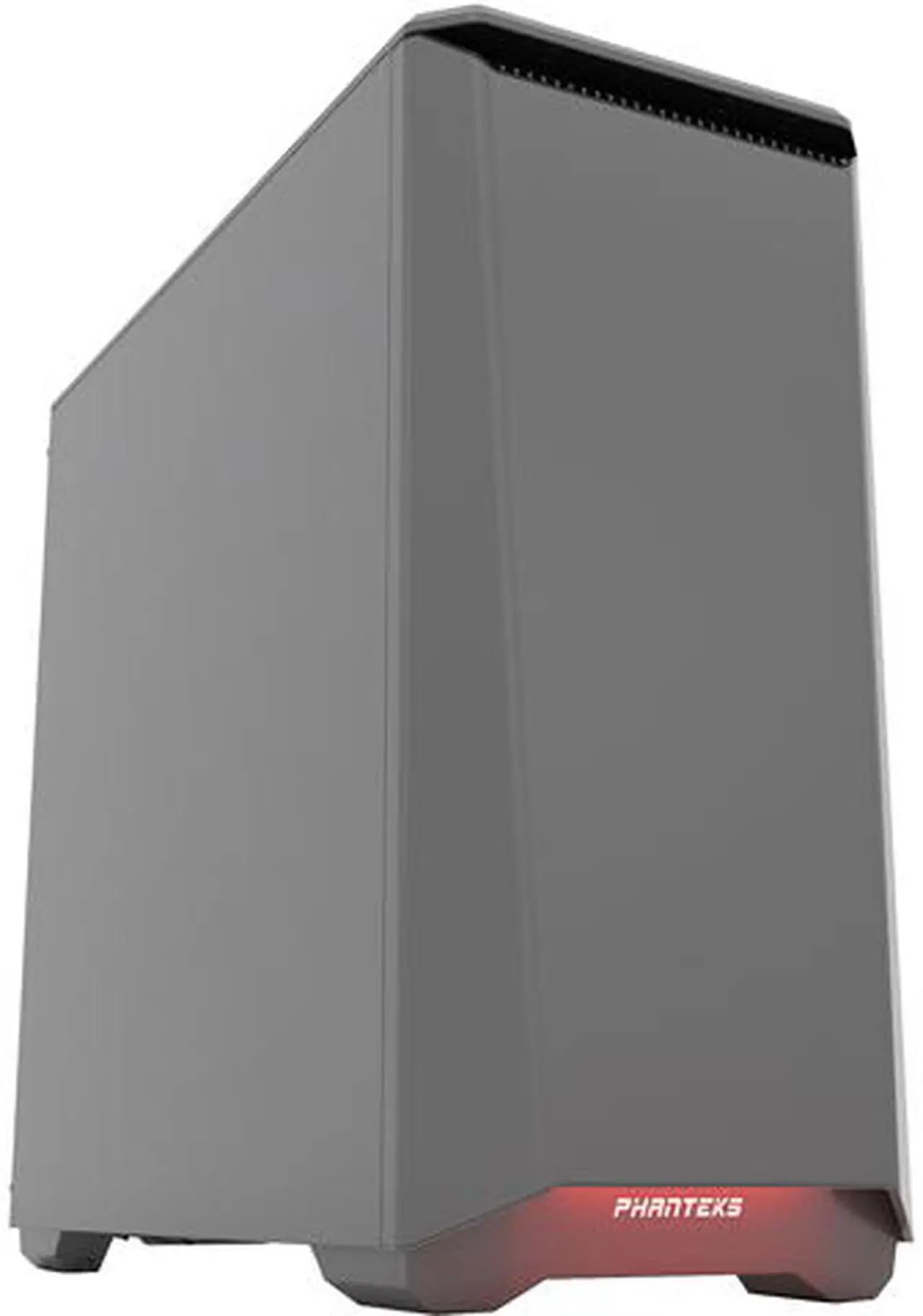

Phanteks Eclipse P400S Series PH-EC416PSC_AG Anthracite Grey Steel Silent Close Window ATX Mid Tower Cases with 10 Color RGB Downlight
- Steel ATX Mid Tower
- 2 x USB 3.0 / Mic / Headphone / Reset / LED Color Control / 3-speed Fan Control Front Ports
- 6x (2x included) Internal 3.5" Drive Bays
Overview
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
Eclipse p400s
Phanteks continues its user friendly design chassis with the new Eclipse Series P400S. Without much effort, the P400S allows users to create a clean and beautiful system. Ambient RGB illumination adds character while the solid metal exterior gives the case a simple elegant design. The P400S is suitable for beginners and experienced systems builders with all the extra features. The P400S comes with sound damping panels and a 3-speed fan controller to enhance acoustical performance.
Appearance

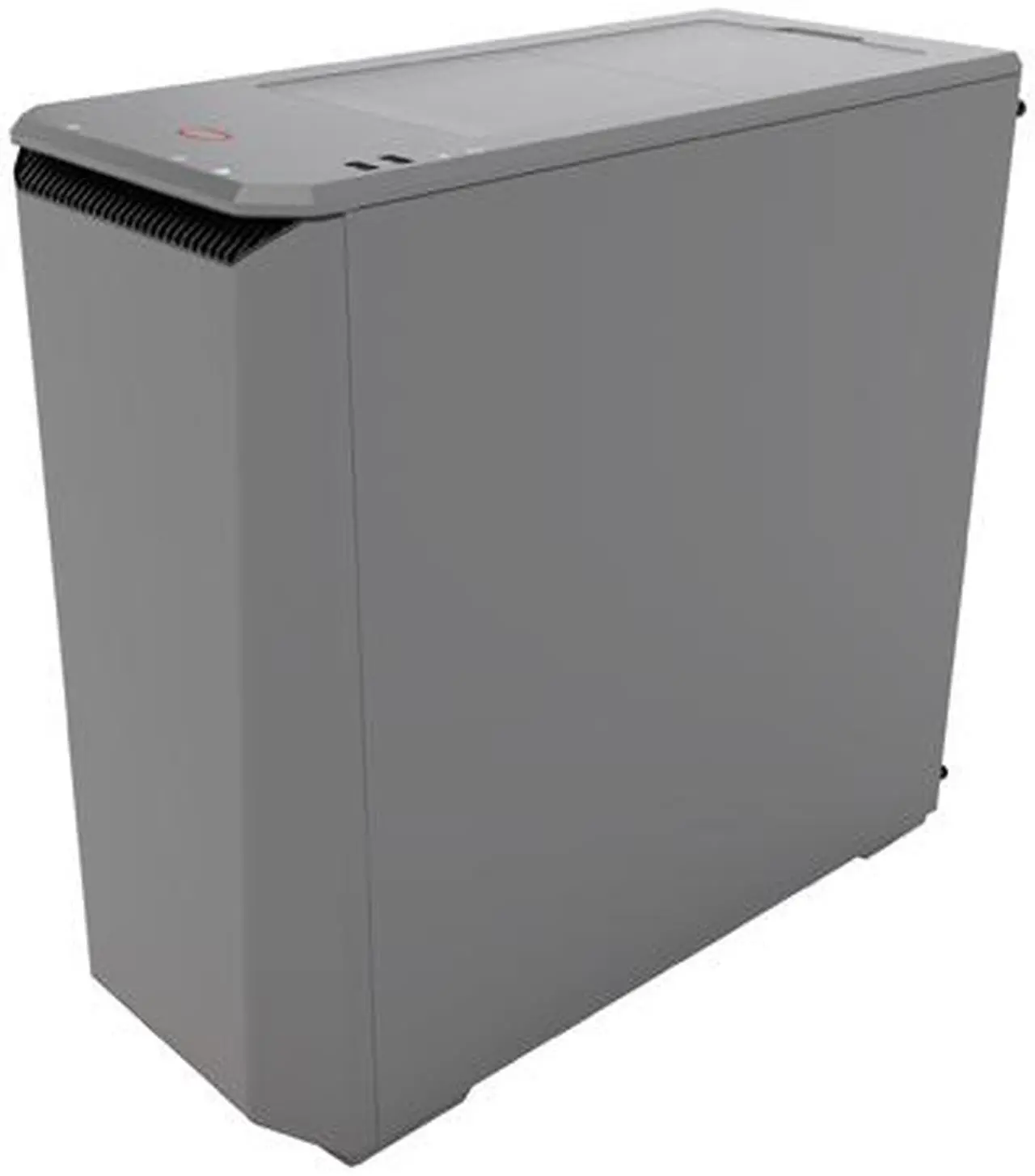

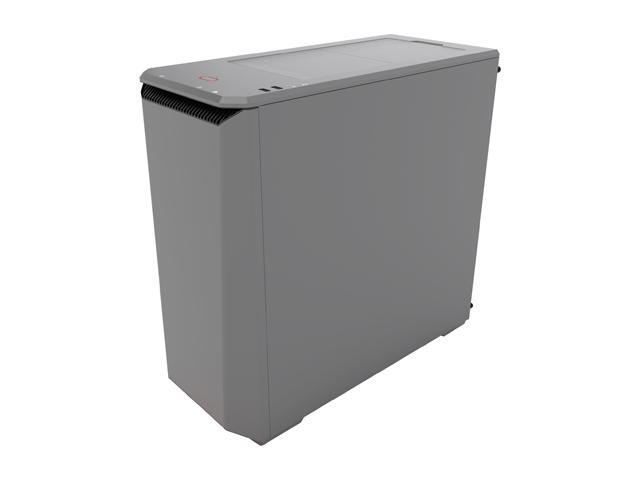

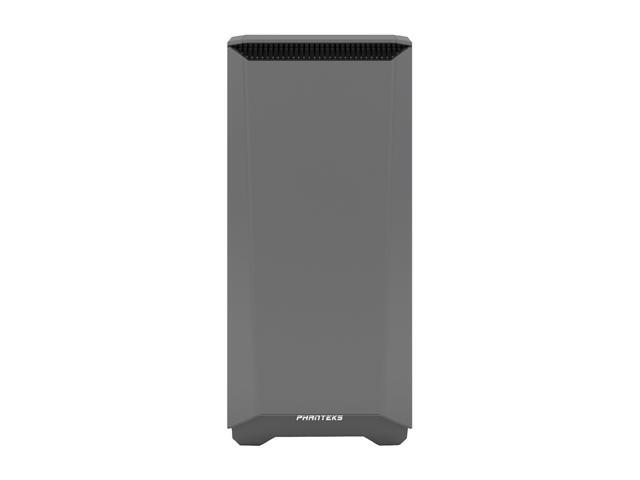

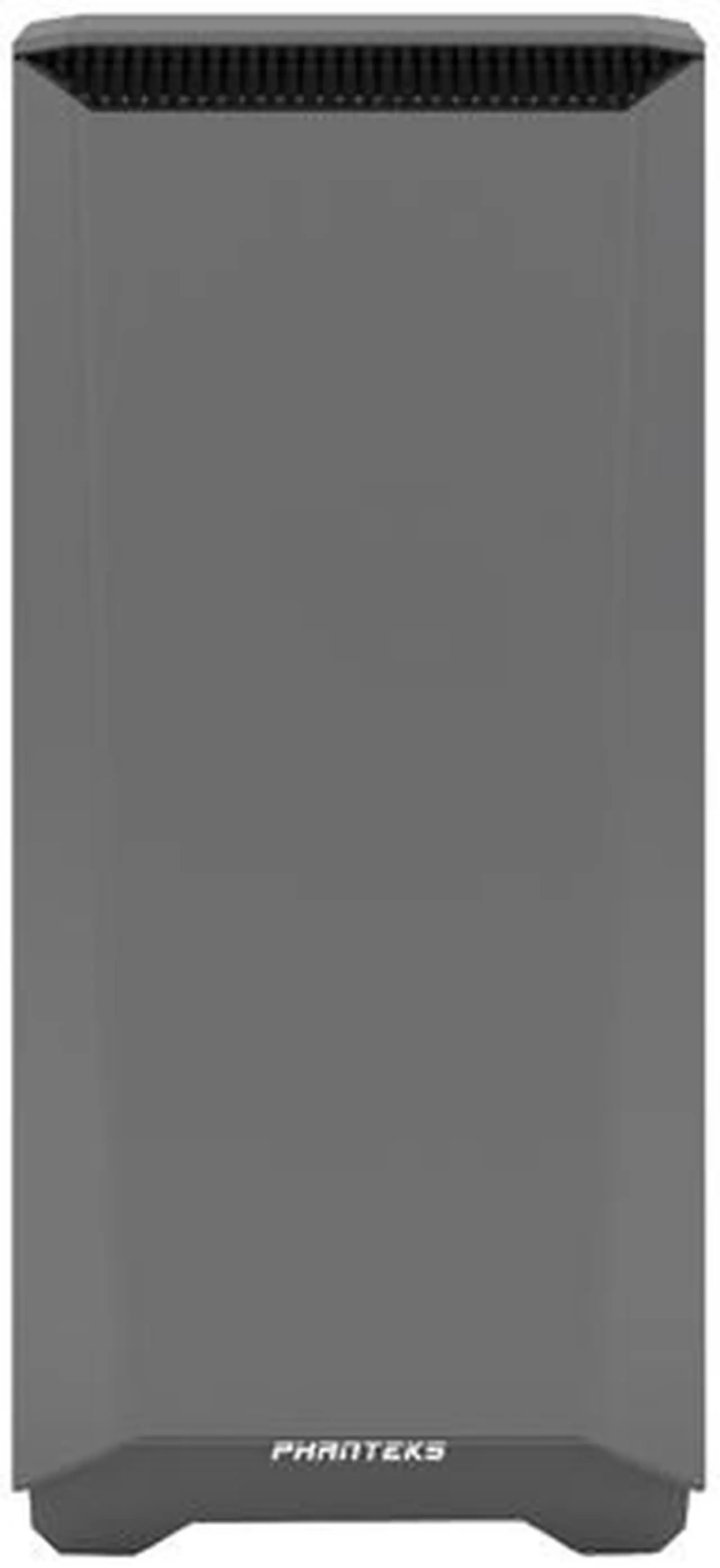

- Full Metal Body

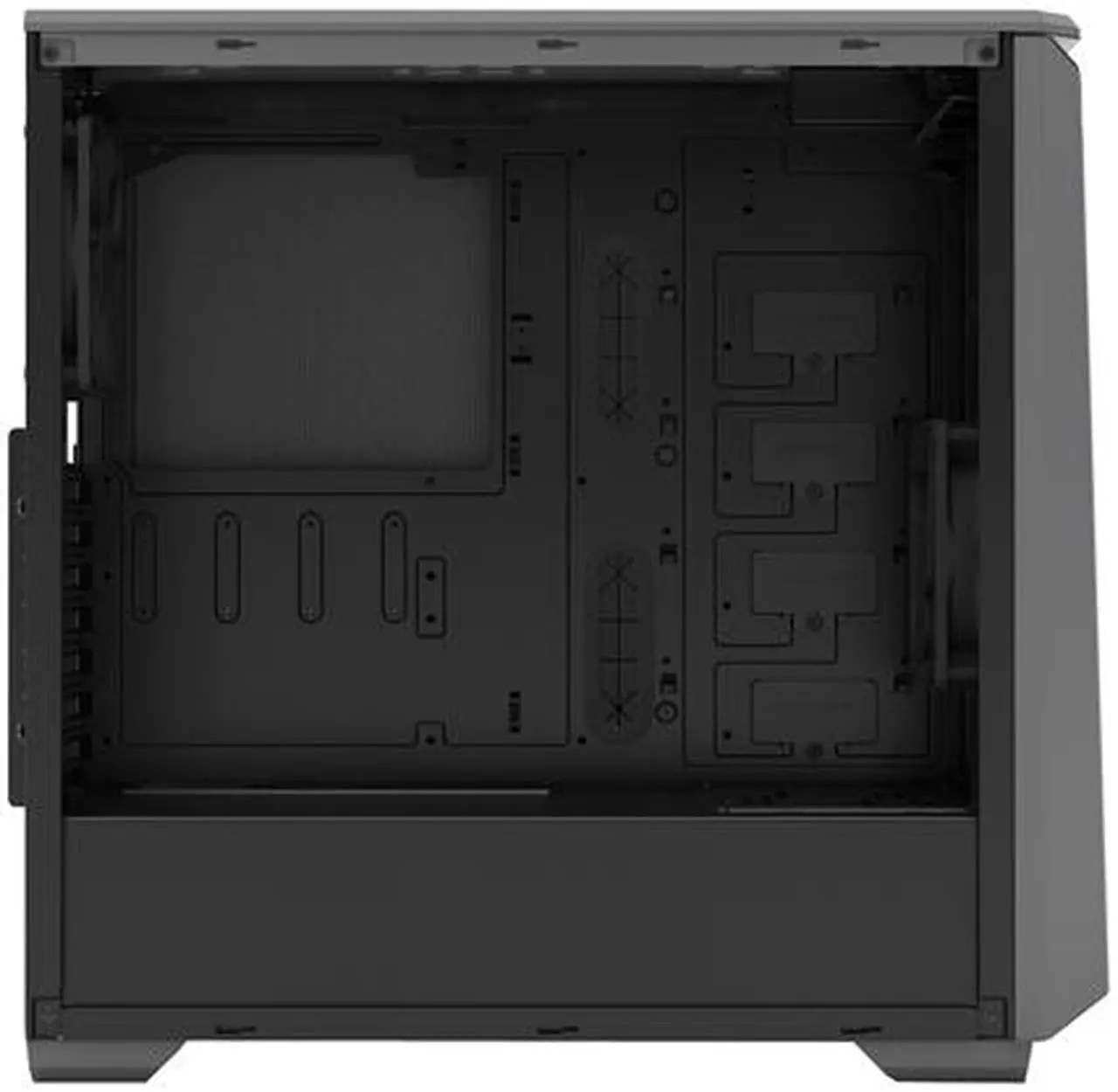

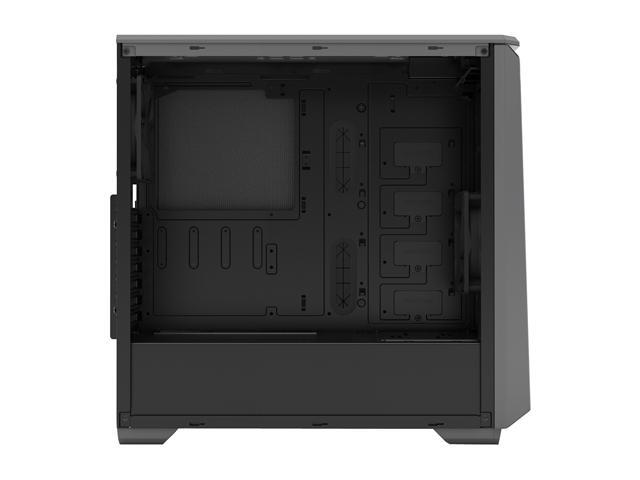

- Clean interior - Featuring a PSU cover
HIGH AIRFLOW
- Support for multiple fan configurations
- Optimized for airflow with low resistance
- Direct airflow for optimal CPU/GPU cooling

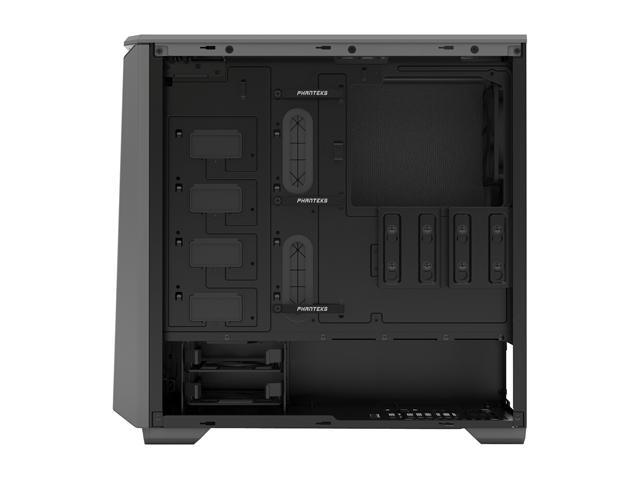

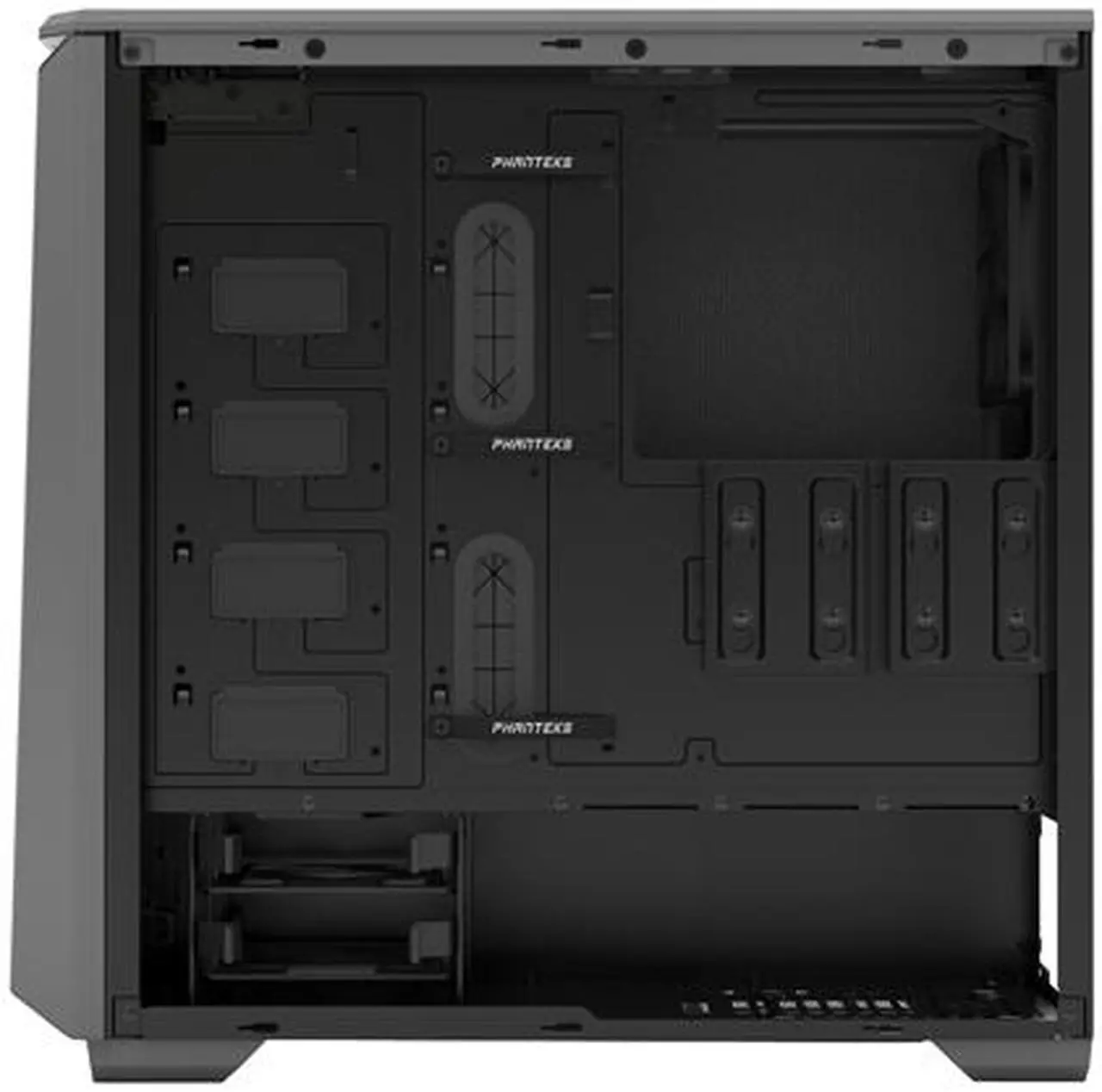

CABLE MANAGEMENT
- Equipped with Phanteks’ velcro cable ties
- 25 mm cable management space + additional cable compartment in bottom
Feature

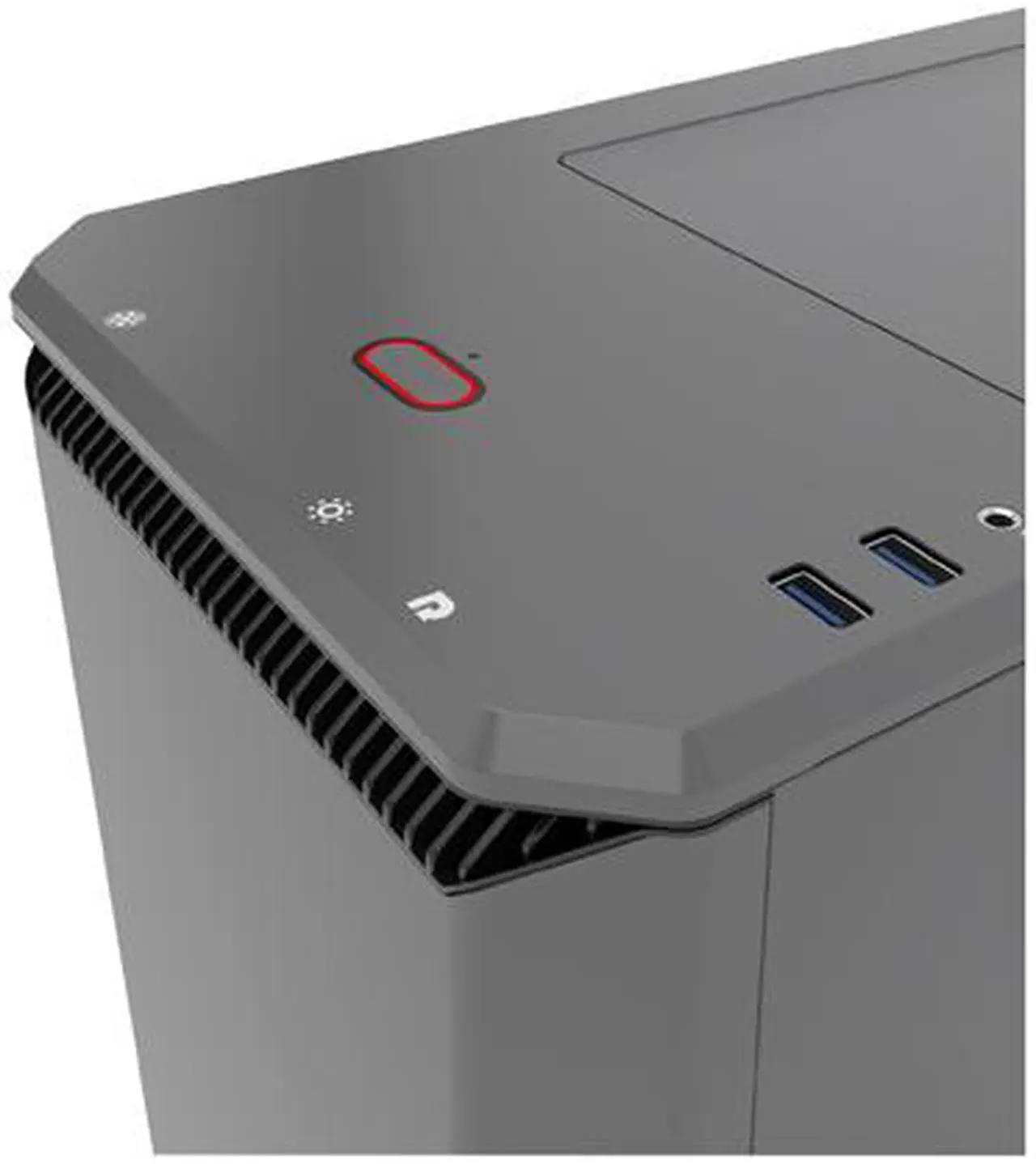

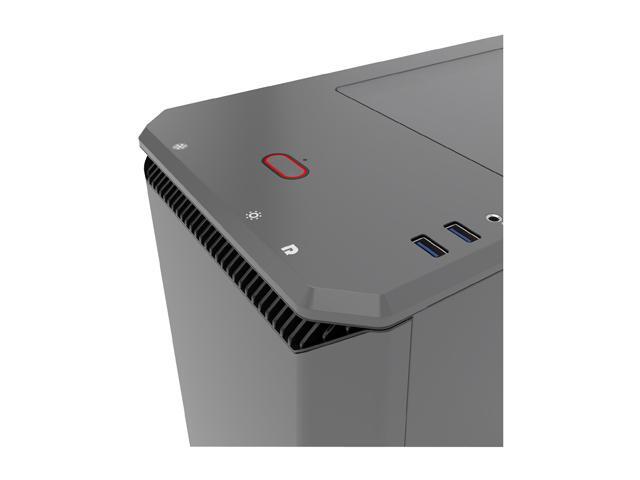

Front I/O (HIDDEN):
2x USB 3.0 / Headphone / Mic / LED Control / Reset / 3-Speed Fan Controller
RGB Power Light + Ambient Down Light
Choose From 10 Different Colors
Upgrade Option:
Phanteks Rgb Led Strip (Interior)
Specifications
| Case Specifications | |||
| Dimension | 210 mm x 465 mm x 470 mm (W x H x D) 8.3 in x 18.3 in x 18.5 in |
||
| Form Factor | Midtower | ||
| Material(s) | Steel chassis, steel exterior, ABS | ||
| Motherboard Support | ATX, Micro ATX, Mini ITX, E-ATX *(up to 272mm wide, cannot use rubber grommets) |
||
| Front I/O | 2x USB 3.0, Mic, Headphone, Reset, LED control, 3-speed Fan controller (only available for P400S) | ||

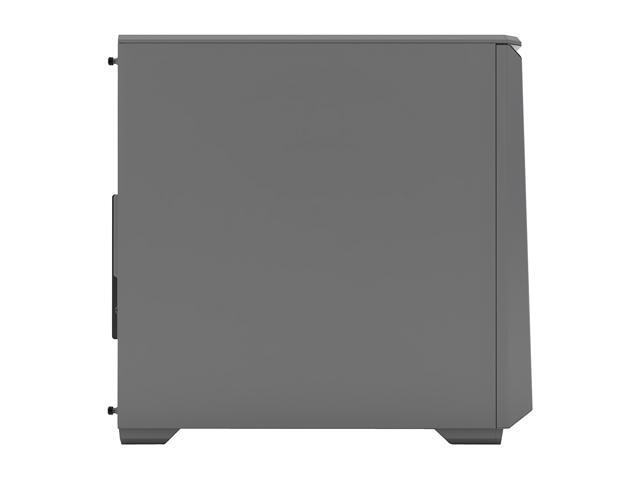

| Side window | Yes (also available with closed panel) | ||

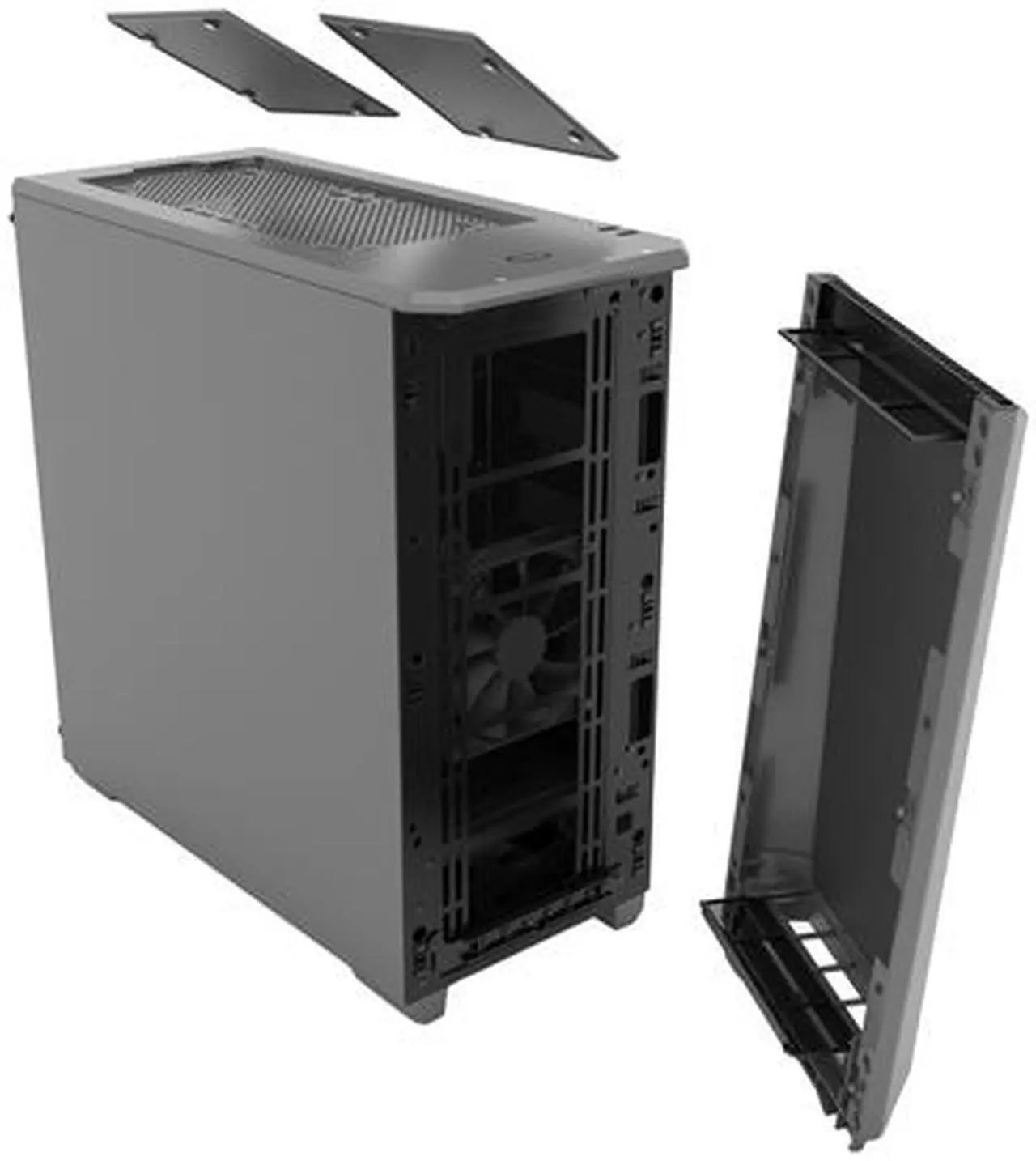

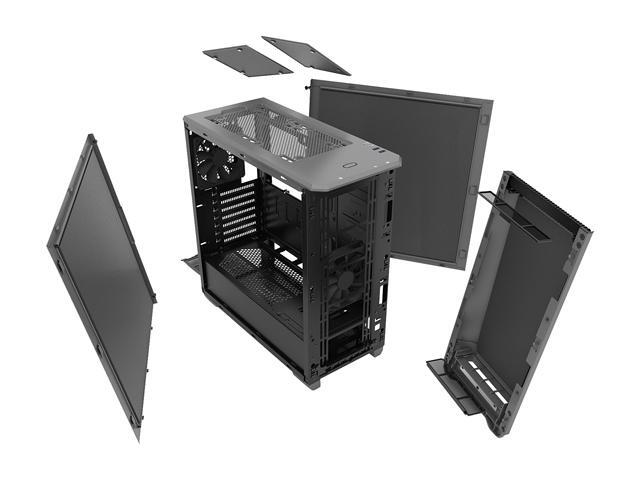

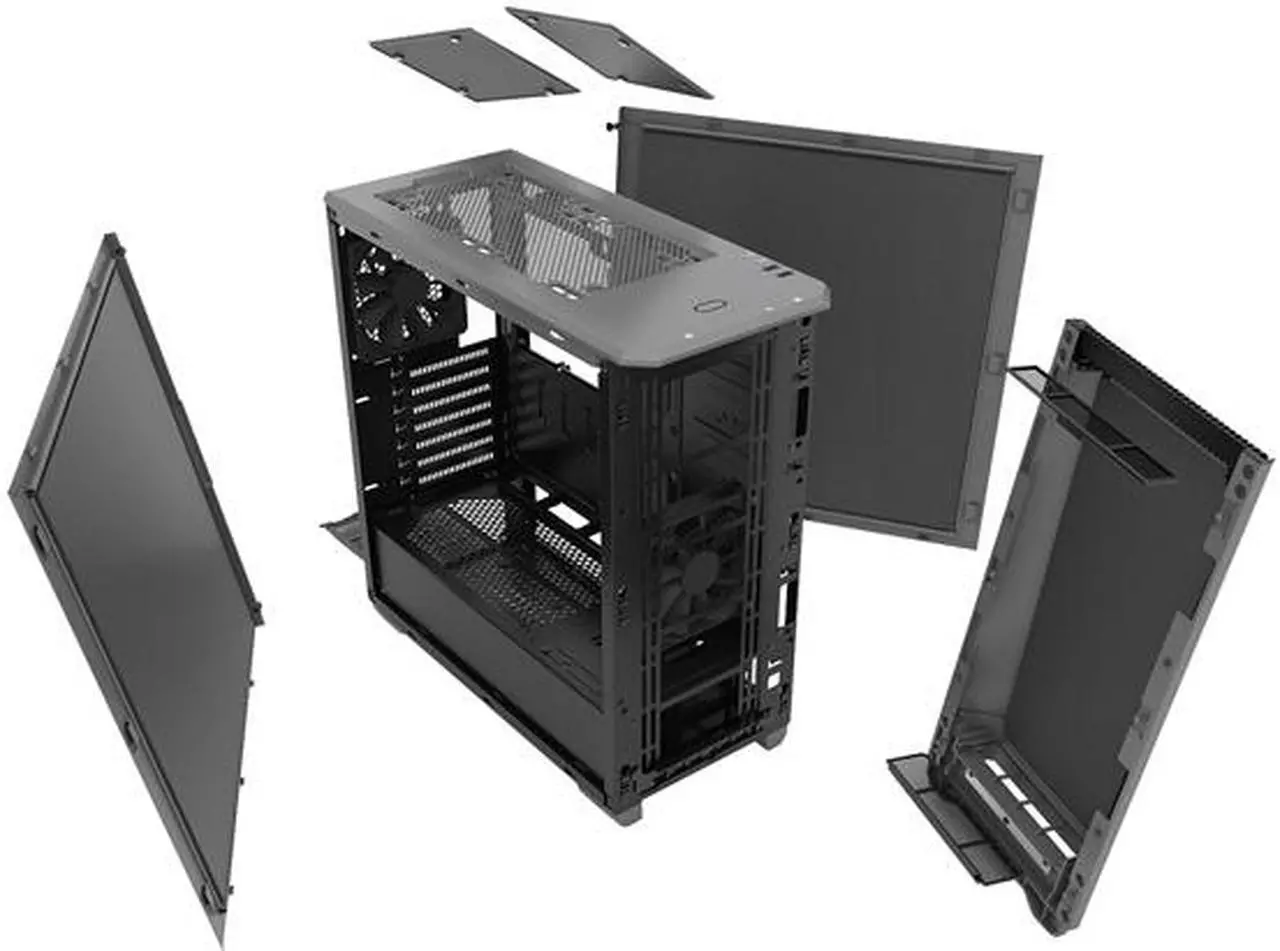

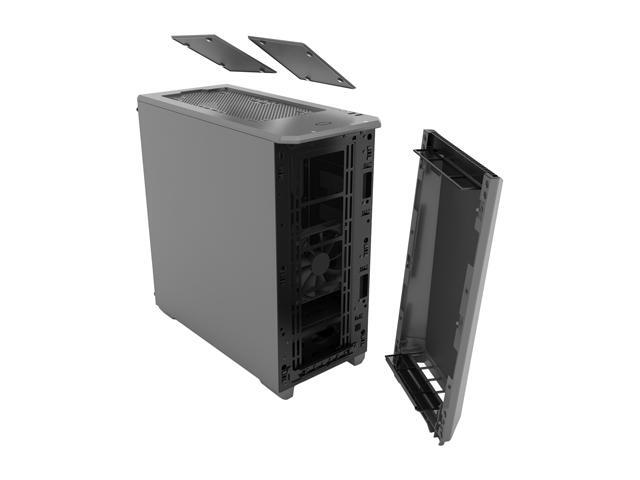

| Soundproofing panels | Yes, Front / Top / Sides | ||
| Expansion & Drive Bays | |||

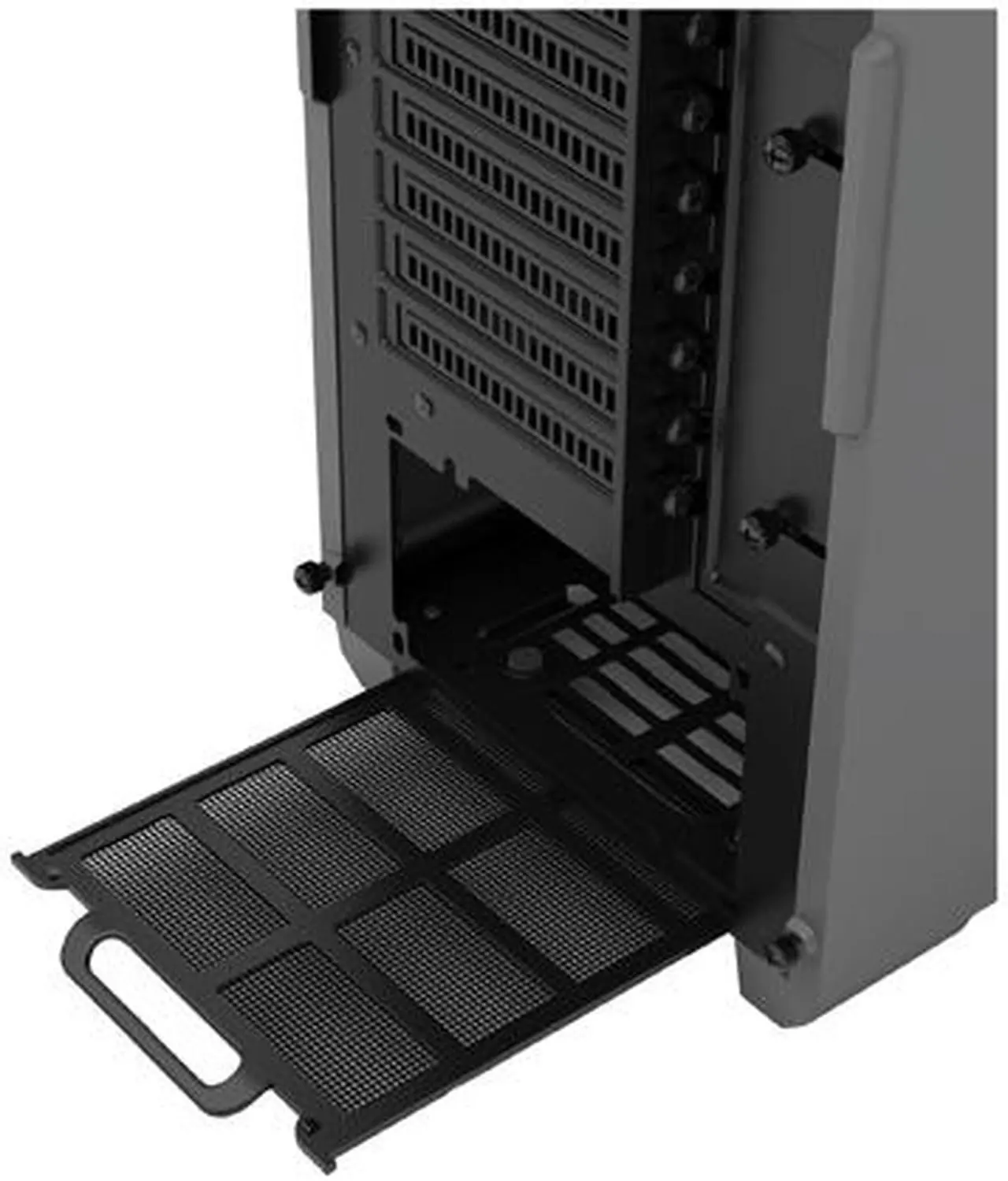

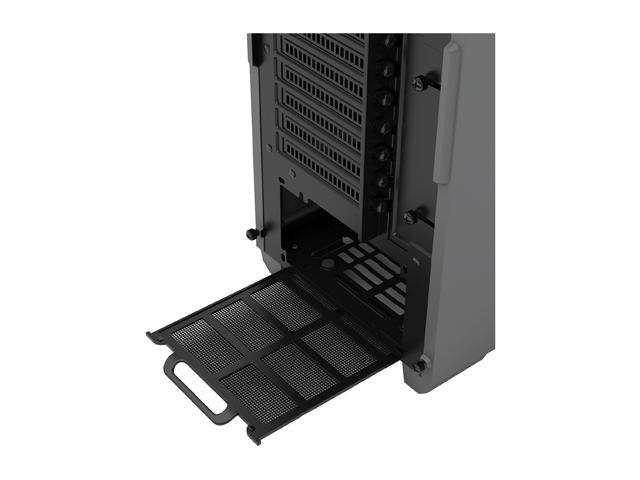

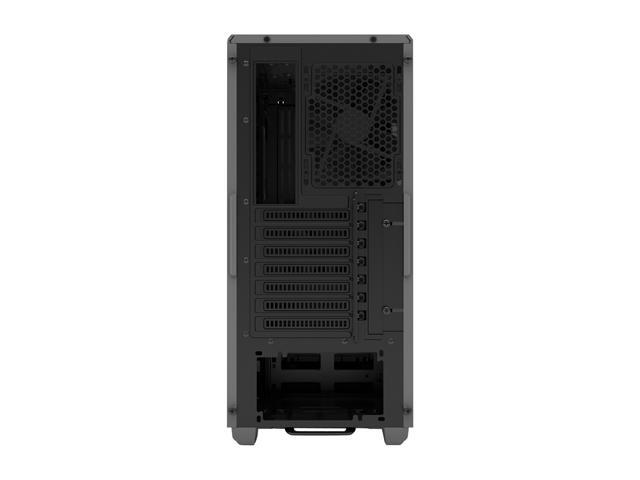

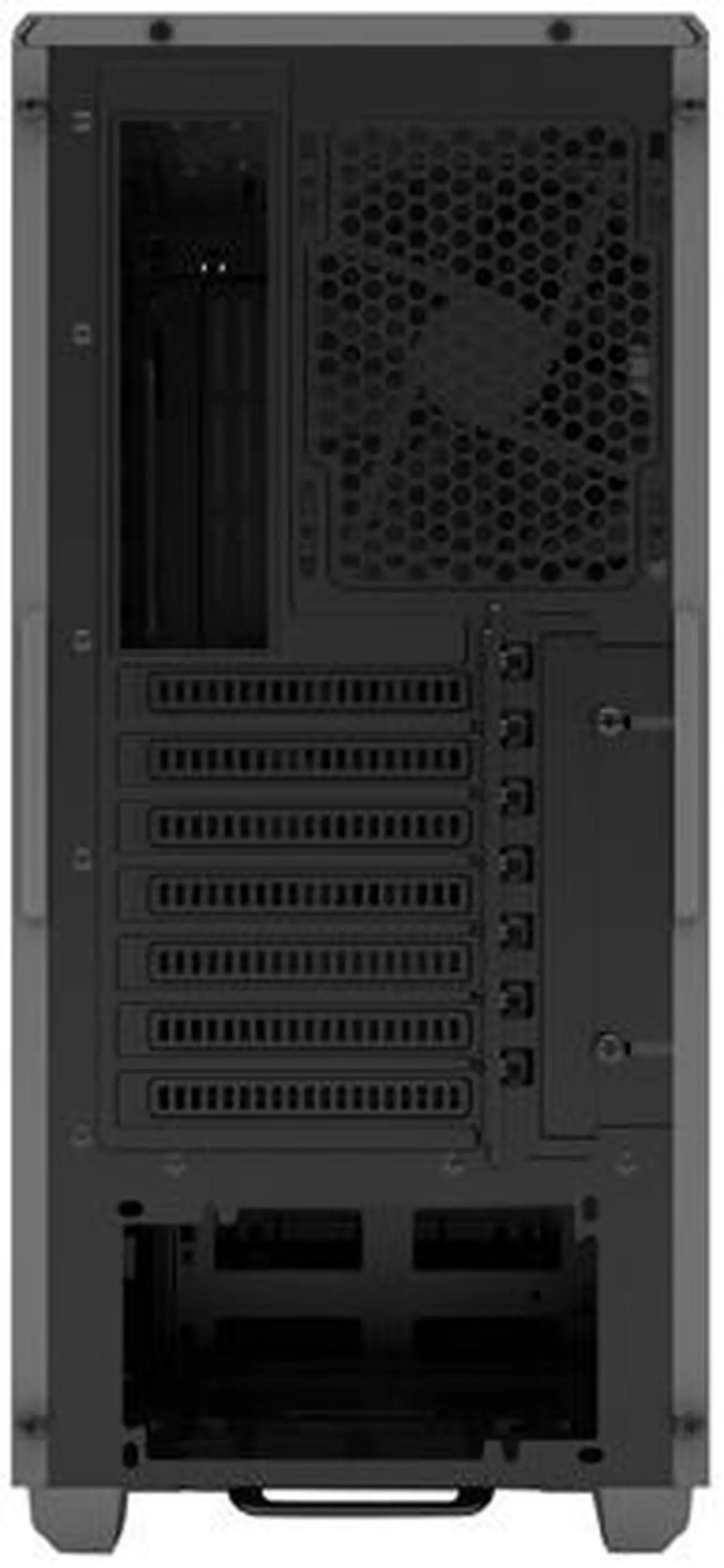

| Expansion slots | 7 | ||

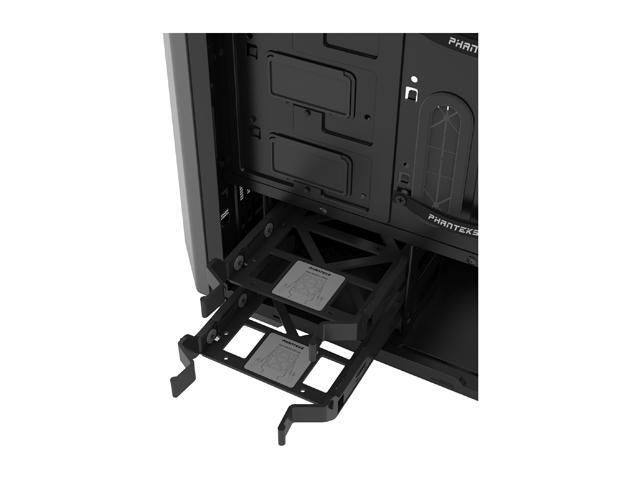

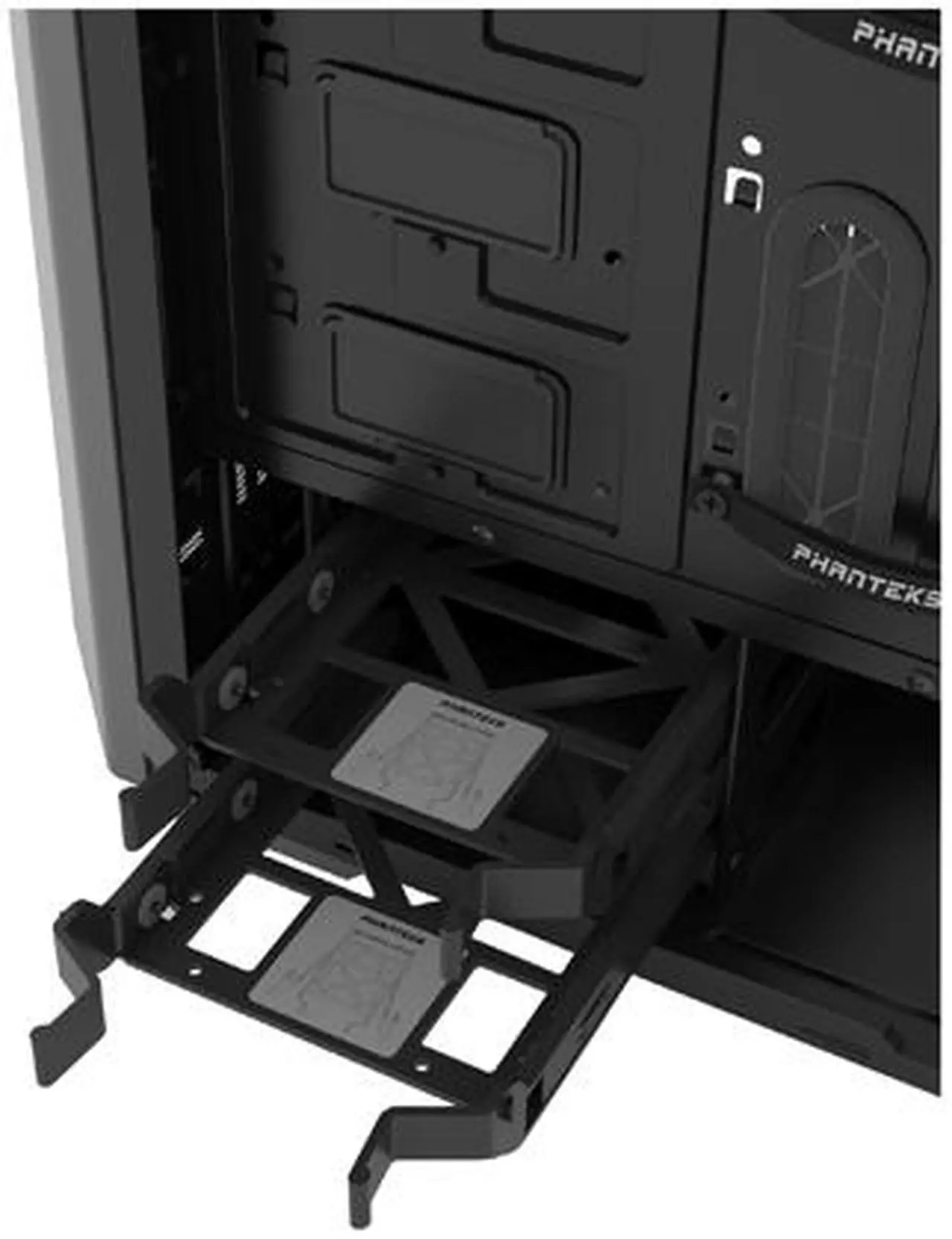

| Internal 3.5" | 6x (2x included) | ||

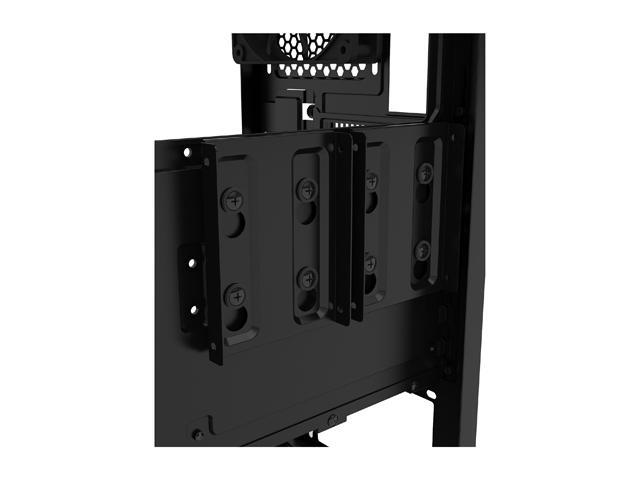

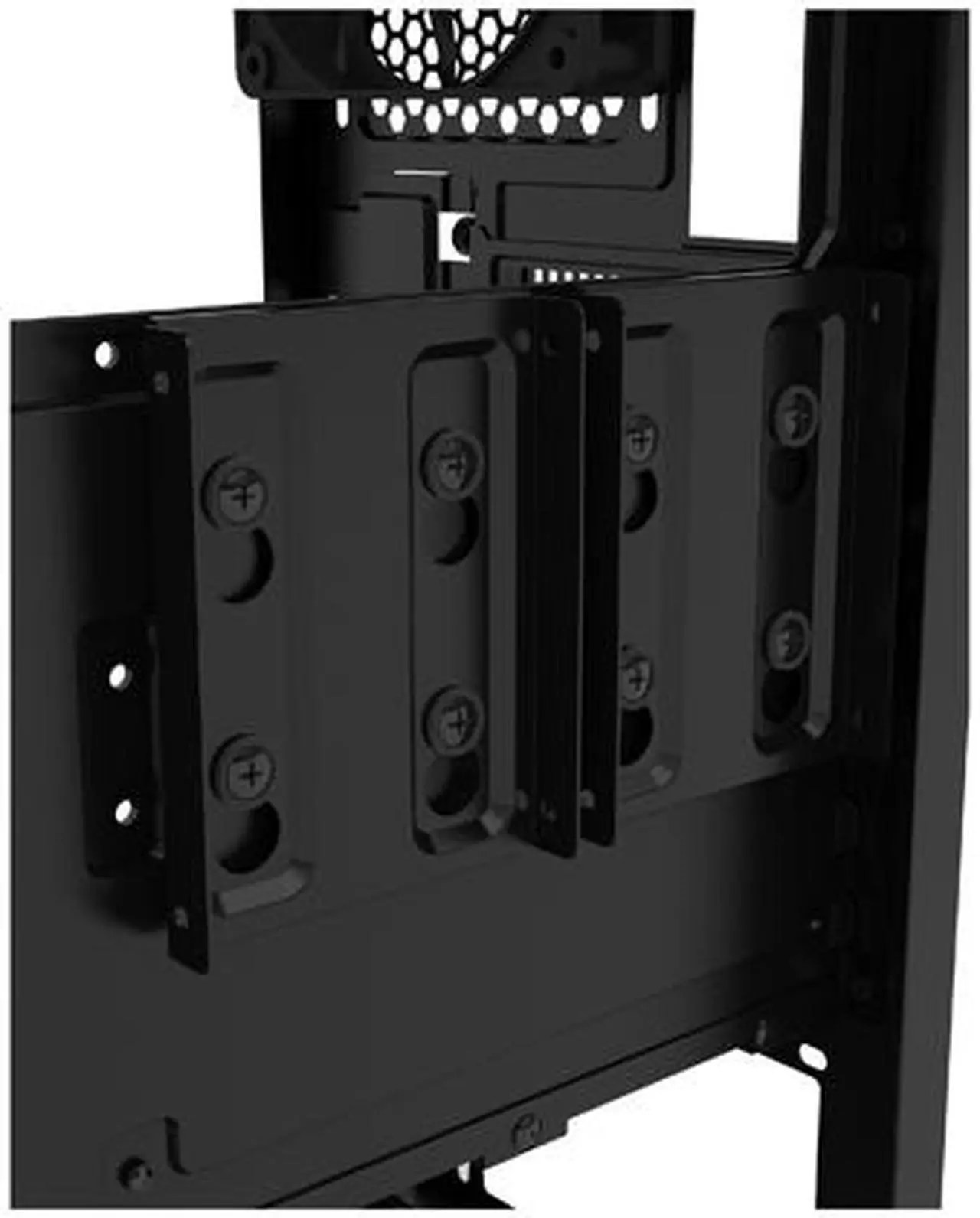

| Internal 2.5" (dedicated) | 2x (2x included) | ||
| Cooling | 120mm fan | 140mm fan | |
| Front | 3x (1 included) | 2x | |

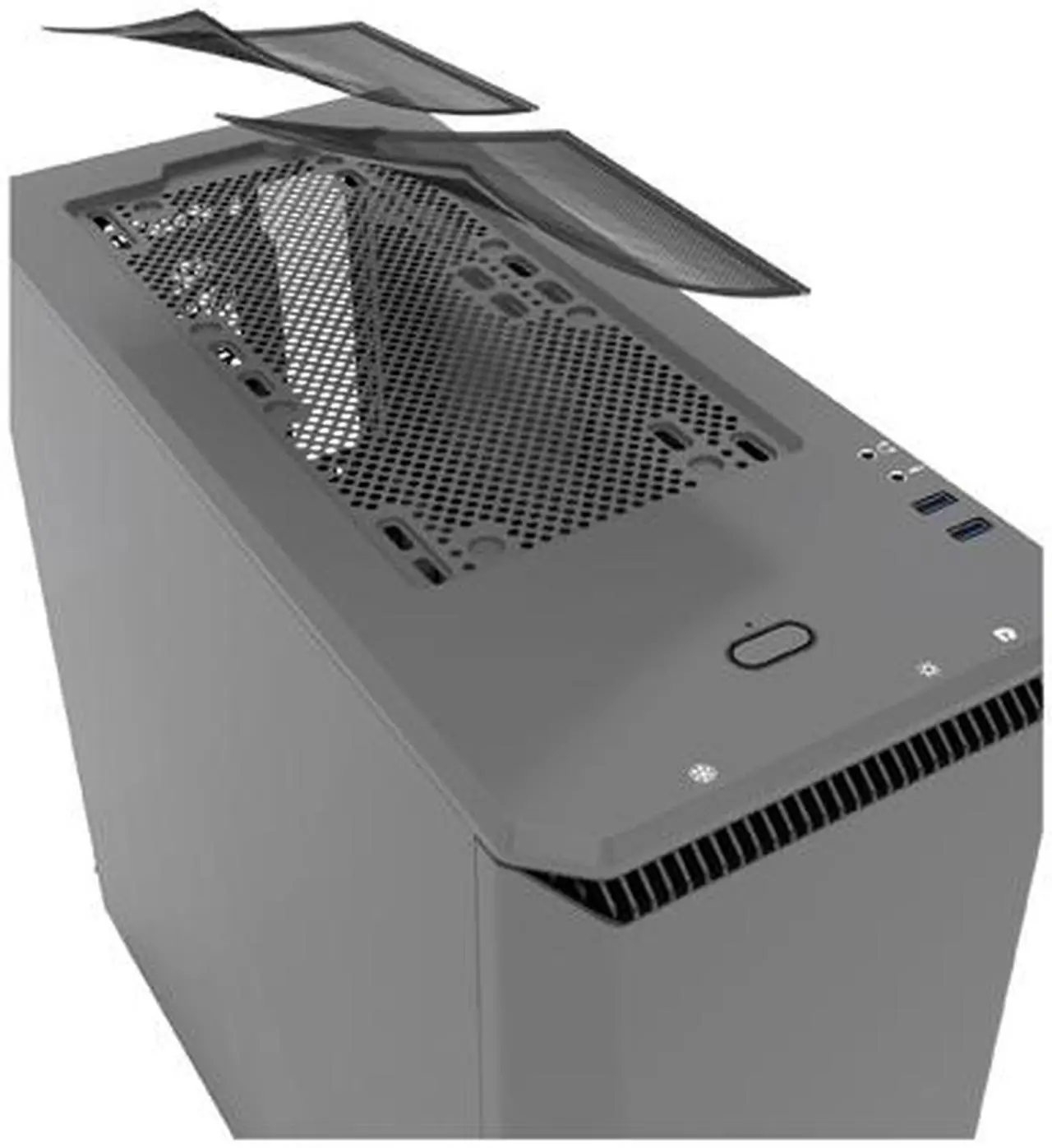

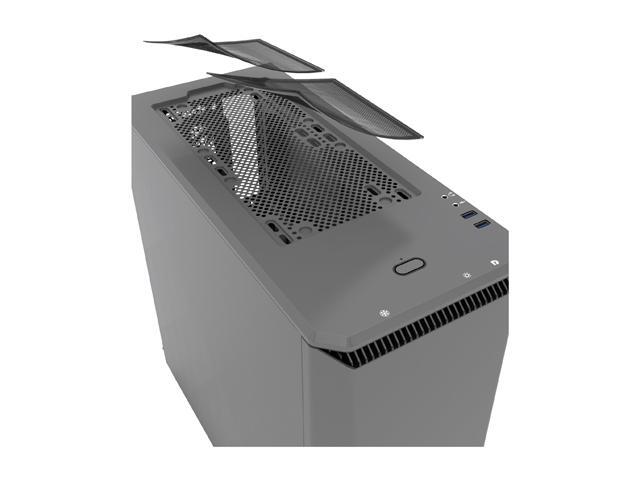

| Top | 2x | 2x | |
| Rear | 1x (1 included) | - | |
| Liquid Cooling | 120mm radiator | 140mm radiator | |
| Front | Up to 360 | Up to 280 | |
| Rear | 120 | - | |
| Clearance | |||
| Graphic card | 395 mm (15.2 in) 280 mm (11.0 in) Optional HDD brackets installed |
||
| CPU cooler | 170 mm (6.7 in) | ||
| Cable management | 25 mm (1.0 in) | ||
| PSU (including cable) | 270 mm (10.6 in) | ||
| Packaging Information | PH-EC416P | ||
| Package Dimension | 300 mm x 555 mm x 520 mm (WxHxD) 11.8 in x 21.9 in x 20.5 in |
||
| Net Weight | 7 kg (15.4 lbs) | ||
| Gross Weight | 8 kg (17.6 lbs) | ||
| Warranty | |||
| Length | 5 Years Limited | ||
