RGB for Full Colour ControlThe P12 PWM PST RGB 0dB has 12 analogue RGB LEDs in the fan barrel. These can be controlled uniformly and are compatible with the common RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the RGB mainboard connection or via an external controller and synchronised with the illumination of other hardware.
0dB Mode - Zero RPMThe speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time promises maximum performance when required.
Optimised for high static pressureThe P12 PWM PST RGB 0dB operates with a focused airflow and a high static pressure. The fan thus promises extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.
0 to 2000 RPM controlled via PWM PSTWith a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P12 PWM PST RGB 0dB can be controlled synchronously with all other fans. This reduces noise to a minimum while promising maximum cooling performance.
Technical SpecificationsFan Speed: 0-2000 RPM
Airflow: 48.8 CFM/ 82.91 m3/h
Static Pressure: 1.85 mm H?O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0-40 °C
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Typical Voltage: 12 V DC
Current: 0.11 A
Cable Length: 400 mm + 80 mm
Number of LEDs: 12 RGB LEDs
Typical Voltage: 12 V
Current: 0.2 A
Connector: 4-Pin 12 V-G-R-B Connector + 4-Pin Socket

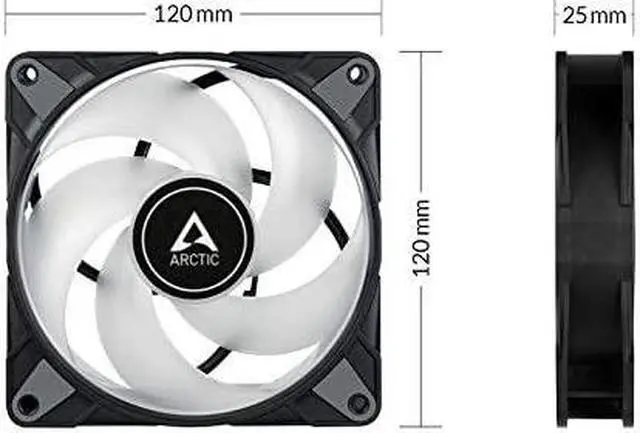

Size & WeightLength: 120 mmWidth: 120 mmHeight: 25 mmWeight: 131 g
