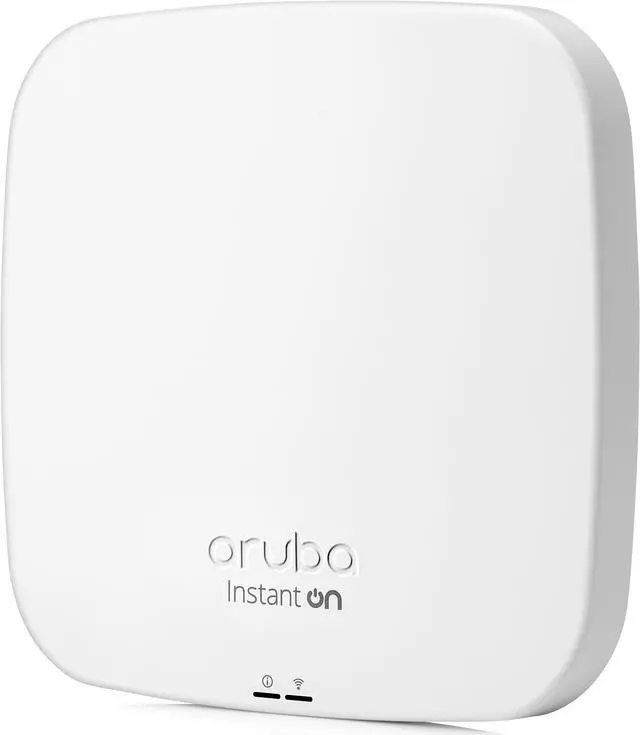

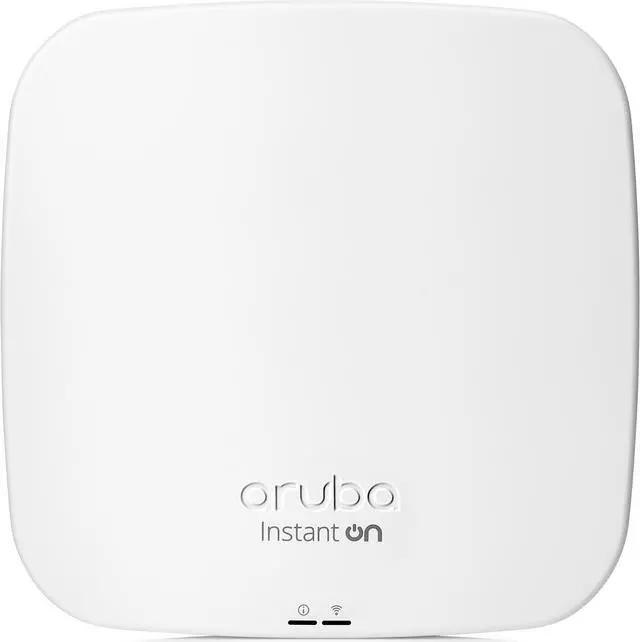

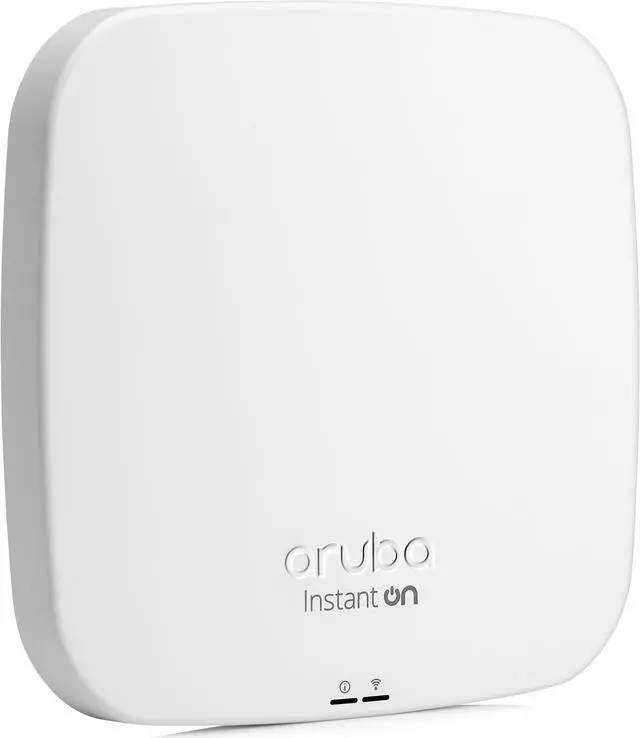

HPE Networking Instant On AP15 Indoor Access Points include an easy to use web GUI and templates so access points are up and running in minutes.
802.11ac Wave 2 features include 4x4:4SS
Dual-band wireless (2.4GHz and 5GHz) for combined speeds of up to 2Gbps support high-bandwidth activities such as video, voice, and conferencing solutions.
Aruba Instant On AP15 Indoor Access Points allow for any change to the primary AP configuration to be automatically pushed to every AP in the same cluster.
A secondary AP automatically takes over if the primary AP experiences an outage for always-on Wi-Fi.
Any questions? Our AI beta will help you find out quickly.
Try me now
Weve made it easy to cover to small medium or large spaces. And better yet Smart Mesh technology lets you cover it all with ease.
Learn more about the HPE Networking Instant On R2X05A
Model
Brand
HPE Networking Instant On
Series
HPE Networking Instant On Access Points
Model
R2X05A
Details
Standards
IEEE 802.11ac, 802.11n
Frequency Band
Dual Radio for simultaneous dual-band operation 5 GHz 802.11ac 4x4 MIMO for up to 1,733 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5) 2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)
Antenna
Integrated downtilt omni-directional antennas with maximum individual antenna gain of 3.6dBi in 2.4GHz and 6.0dBi in 5GHz.

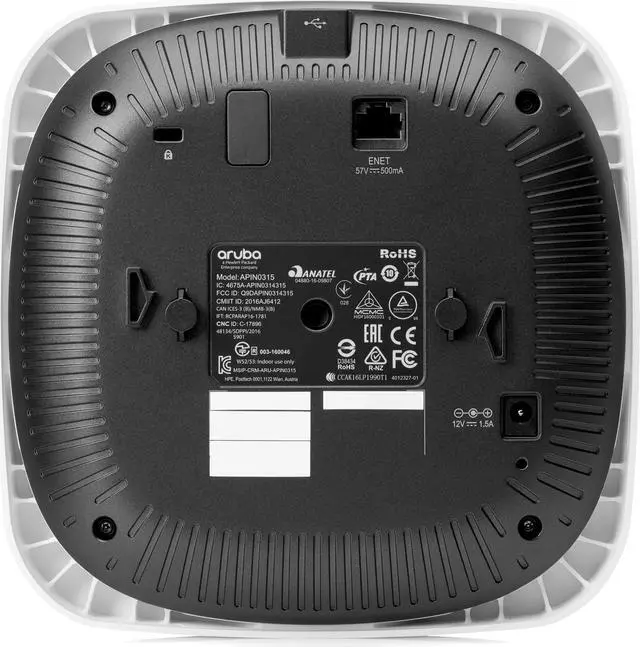

LAN Ports
(1) uplink Gigabit Ethernet port, with POE-in support (802.3af)
Power Supply
Power over Ethernet (POE): 802.3af (class 3) DC power (12V) Note: Power sources are sold separately
Dimensions & Weight
Dimensions
1.6 x 7.2 x 7.2 in
Weight
1.5 lb
Features
Features
UL 2043 plenum rating EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)
Additional Information
Date First Available
July 11, 2019
