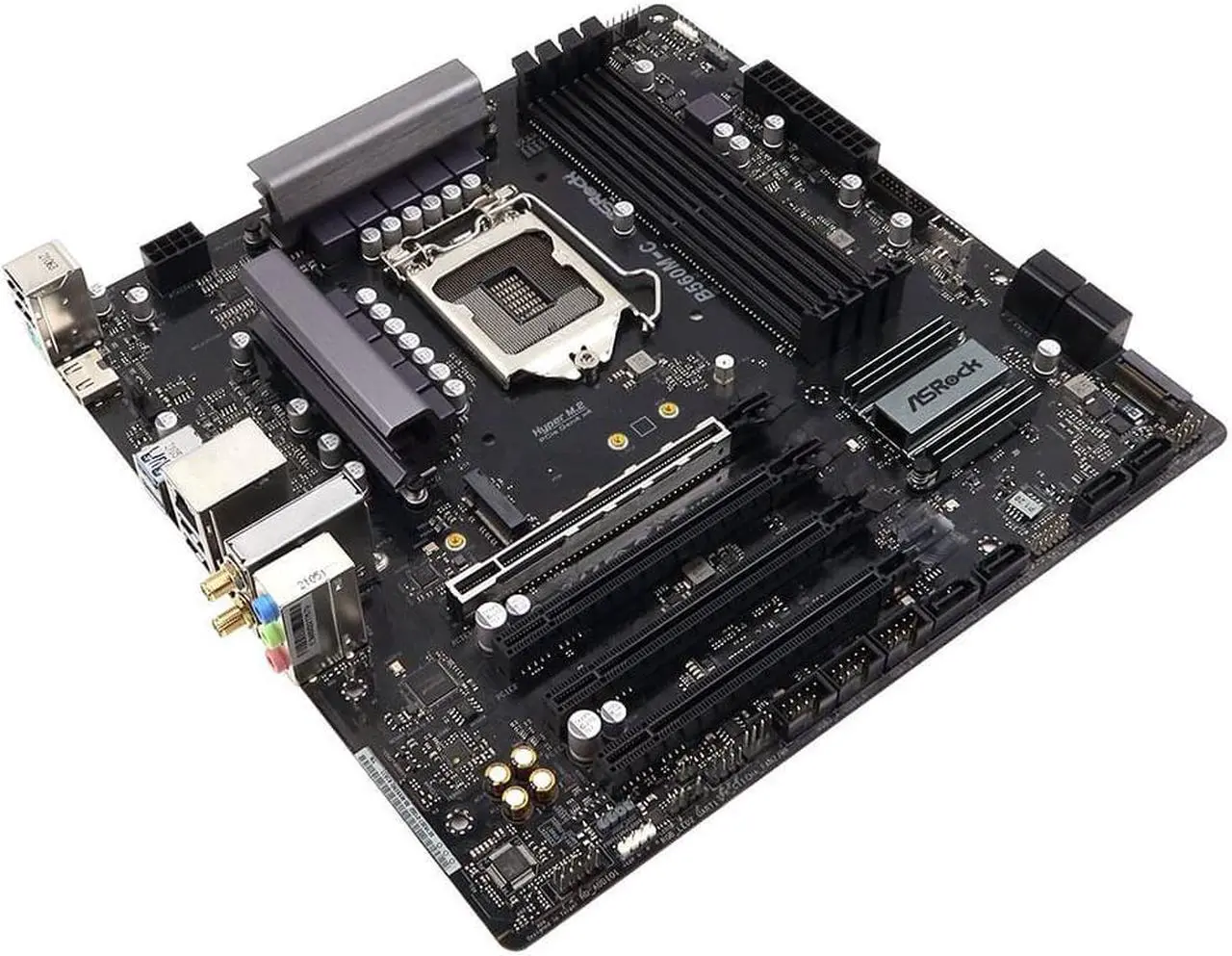

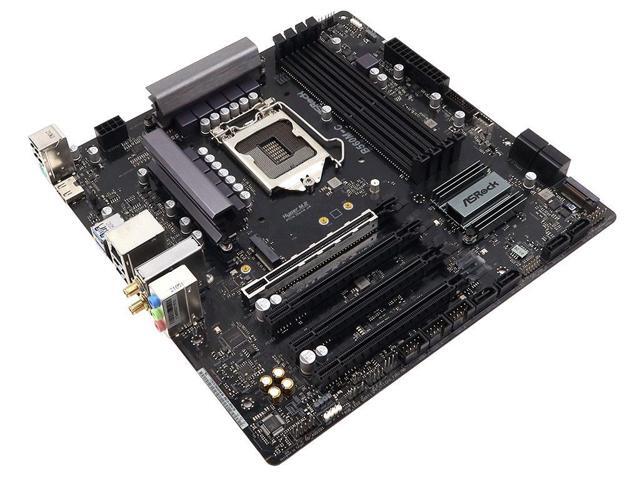

Model: B560M-C
Part Number: 80-MXBEM2-A1A11
Compatible Part Numbers: 80-MXBEM2-A1A21 80-MXBEM2-A1B11 80-MXBEM2-A1B12
Chipset: Intel B560
Socket: Intel LGA1200
Compatible/Supported CPU: 10th 11th Gen Intel Core Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 4800MHz(O.C.), 4600MHz(O.C.)
Storage Interface: SATA 3 6.0Gb/s
RAID Support: 0, 1, 10
Bluetooth Standard: Bluetooth 4.2
Wireless Lan Support: Intel WiFi Module 802.11a/b/g/n/ac
Network/Communications: Intel I219V Gigabit LAN 10/100/1000Mb/s
Audio: Realtek ALC897 Audio Codec
Connectors: 1x SPI TPM Header, 1x Chassis Intrusion and Speaker Header, 2x RGB LED Headers, 2x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 2x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector (Hi-Density Power Connector), 1x Front Panel Audio Connector, 3x USB 2.0 Headers (Support 6 USB 2.0 ports) (Supports ESD Protection), 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection), 1x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
Input/Output Ports: 2x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 4x USB 3.2 Gen1 Ports (Supports ESD Protection), 2x USB 2.0 Ports (Supports ESD Protection), 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone
Expansion Slots: 3x PCI Express 3.0 x16 Slots, 1x PCI Express 4.0 x16 Slot, 2x M.2 Socket (Key M), 6x SATA3 6.0 Gb/s
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit
Please note, this motherboard does not include an I/O Shield, fan's bracket, cables, or any other accessories!
