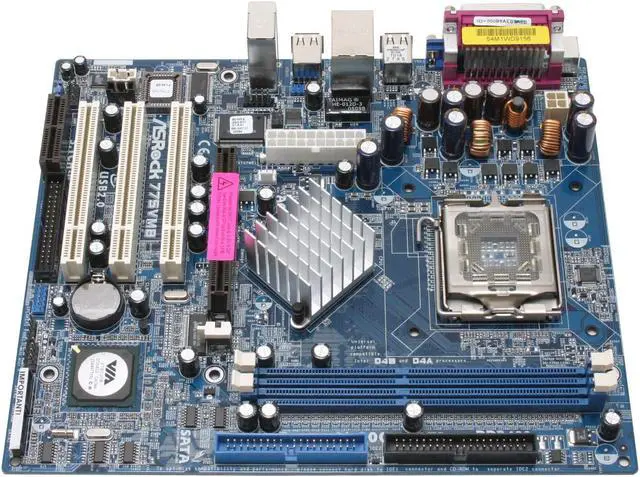

ASRock 775VM8 LGA 775 VIA PM800 Micro ATX Intel Motherboard
- VIA PM800
- Pentium 4 Prescott / Celeron D
- DDR 400
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock 775VM8
| Brand | ASRock |
|---|---|
| Model | 775VM8 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Pentium 4 Prescott / Celeron D |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | VIA PM800 |
|---|---|
| South Bridge | VIA VT8237 |
| Onboard Video Chipset | S3 Graphics UniChrome Pro IGP |
|---|
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 2GB |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 3 x PCI Slots |
| Other Slots | 1 x AMR |
| SATA RAID | 0/1 |
|---|
| Audio Chipset | C-Media CMI9761A |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | VIA VT6103 |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 2 x PS/2 / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 6 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.1" |
| First Listed on Newegg | June 30, 2005 |
|---|
