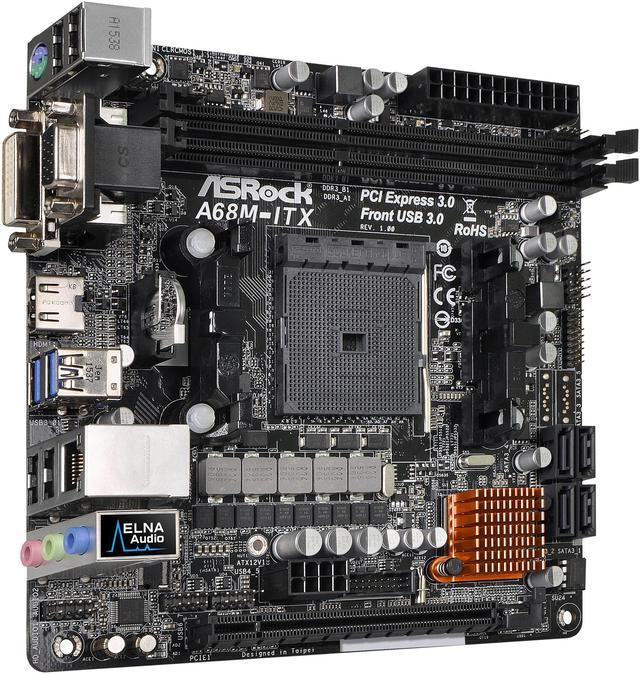

ASRock A68M-ITX FM2+ / FM2 AMD A68H FCH (Bolton D2H) USB 3.0 HDMI Mini ITX AMD Motherboard
- AMD A68H FCH (Bolton D2H)
- FM2+ 95W / FM2 100W processors
- DDR3 2400+(OC)/ 2133/ 1866/ 1600/ 1333/ 1066
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock A68M-ITX
| Brand | ASRock |
|---|---|
| Model | A68M-ITX |
| CPU Socket Type | FM2+ / FM2 |
|---|---|
| CPU Type | FM2+ 95W / FM2 100W processors |
| Chipset | AMD A68H FCH (Bolton D2H) |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 2400+(OC)/ 2133/ 1866/ 1600/ 1333/ 1066 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) * * PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0. |
|---|
| Serial ATA (SATA) | 4 x SATA3 6.0 Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug |
|---|---|
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Integrated AMD Radeon R7/R5 Series Graphics in A-series APU DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU. Max. shared memory 2GB Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz Supports Dual-link DVI-D with max. resolution up to 2560x1600 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports Blu-ray Stereoscopic 3D with HDMI Port Supports AMD Steady Video 2.0: New video post processing capability for automatic jitter reduction on home/online video Supports HDCP with DVI-D and HDMI Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports *Only FM2+ APU can support up to 4096x2160 resolution display via HDMI port. |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111-GR |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub Port 1 x DVI-D Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 3.0 | 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| USB 1.1/2.0 | 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.0 Header by ASMedia ASM1042A (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
|---|---|
| Other Connectors | 1 x Chassis Intrusion Header 1 x CPU Fan Connector (4-pin) 1 x Chassis Fan Connector (4-pin)* 1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector 1 x Front Panel Audio Connector *CPU_FAN1 and CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use. |
| Form Factor | Mini ITX |
|---|---|
| Power Pin | 24 Pin |
| Features | Unique Feature: ASRock Super Alloy - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop BIOS: - 64MB AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 1.1 Compliant wake up events - Supports jumperfree - SMBIOS 2.3.1 support - DRAM, VDDP, SB Voltage multi-adjustment Software: - ASRock A-Tuning - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Fast Boot (Fast Boot, Restart to UEFI) - ASRock X-Boost* *These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI: - ASRock Interactive UEFI - ASRock Instant Boot - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI System Browser - ASRock UEFI Tech Service - ASRock Easy RAID Installer - ASRock Easy Driver Installer Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor: - CPU/Chassis temperature sensing - CPU/Chassis Tachometer - CPU/Chassis Quiet Fan - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, Vcore OS: - Microsoft Windows 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit* *Carrizo FM2r2 processor supports Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit only. For the updated Windows 10 driver, please visit ASRock's website for details. Certifications: - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|

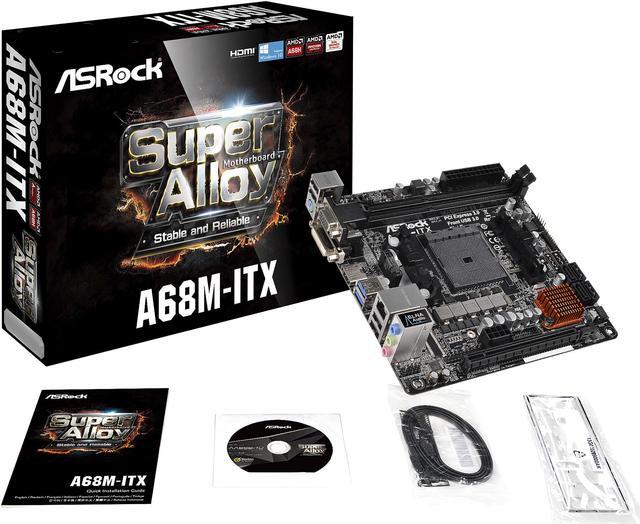

| Package Contents | Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
|---|
| Date First Available | March 15, 2016 |
|---|
